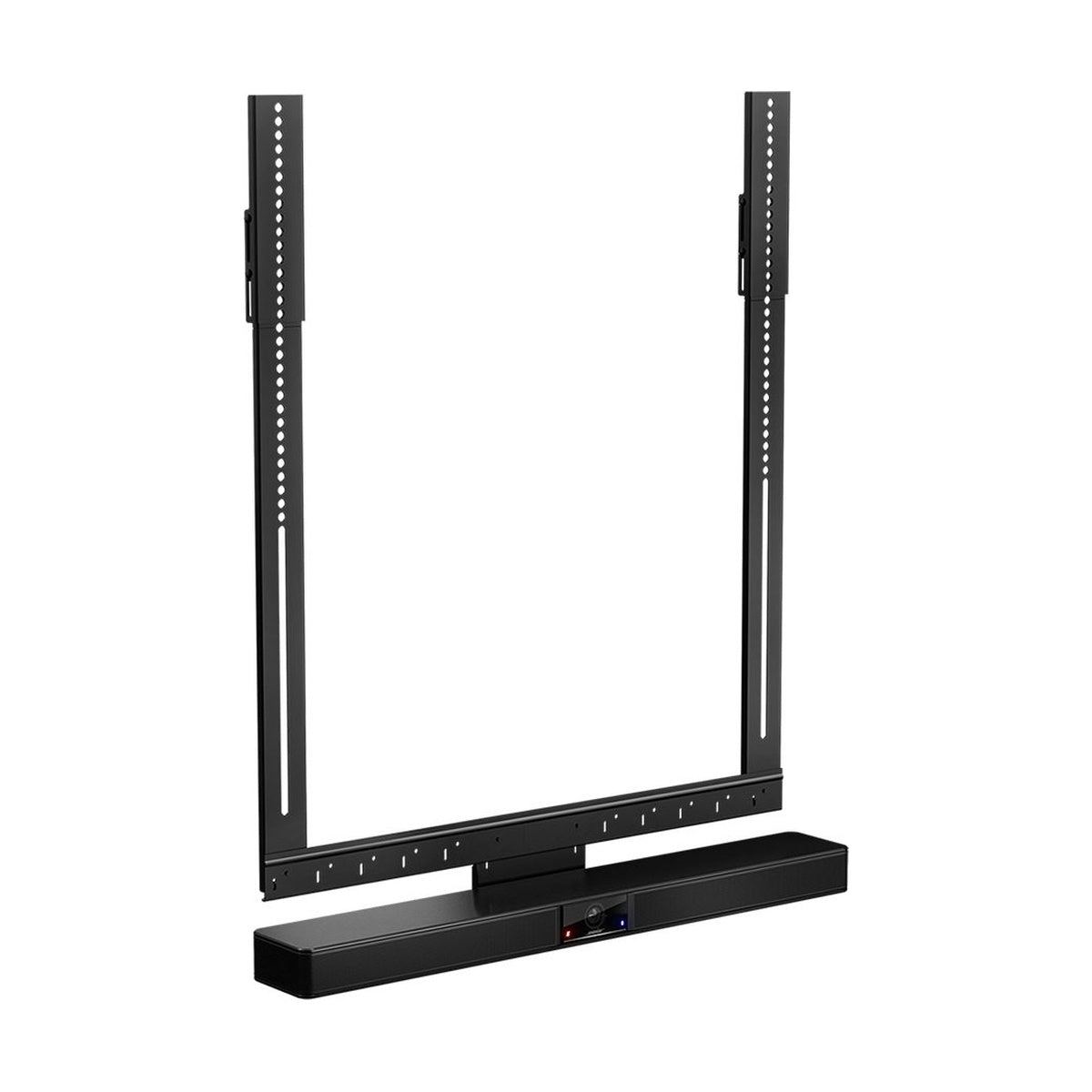

Meeting room installers run into the same issue repeatedly: the video bar needs to sit as close to the screen's center axis as possible for natural eye contact on camera, without blocking the top or bottom edge of the display or leaving cables and a separate bracket exposed in the room. Bose's mounting kit solves this by integrating the VB-S with the display's existing wall-mount bracket instead of adding a separate, visible mount.
Camera-to-Screen Alignment Without Improvising
The kit installs directly between the display's wall-mount bracket and the screen itself, so the VB-S moves as a single unit with the display instead of hanging separately on an extra arm. A tilt range of 5 degrees up and 20 degrees down lets you fine-tune the camera angle relative to typical participant eye height, without having to reposition the entire wall bracket or move the screen itself. This matters in particular with the VB-S, where the shorter chassis needs a precise angle to keep the whole conference table inside the camera's frame.
Compatibility Across Mounting-Hole Patterns
Included extension brackets let the kit adapt to wall mounts with hole spacing that differs from the standard pattern, removing a common incompatibility issue when installing on a bracket from a different manufacturer that's already on the wall. The same brackets extend vertical mounting reach on larger displays, where the distance between the screen edge and the bracket's mounting point tends to be greater. Two mounting options let you align the VB-S precisely with the front plane of the display, keeping the room's installation looking like one consistent unit.
KEY FEATURES
- Mounts the Videobar VB-S directly above or below a display
- Installs between the display's wall-mount bracket and the screen
- Compatible with screens from 107 to 215 cm (42 to 85 in)
- Tilt adjustment: 5 degrees up, 20 degrees down
- Extension brackets for varying mounting-hole spacing
- Extended vertical mounting reach for large displays
- Two mounting options to align the VB-S with the display's front plane
- Horizontal adjustment: yes, vertical adjustment: no
TECHNICAL SPECIFICATIONS
- Type: display mounting kit for Videobar VB-S
- Compatible screen sizes: 107-215 cm (42-85 in)
- Tilt range: +5 degrees / -20 degrees
- Color: black
- Weight including packaging: 5.95 kg
- Display wall bracket: required, not included
- Part number: 869196-0010 (replaces 842888-0010)
- Country of origin: China
