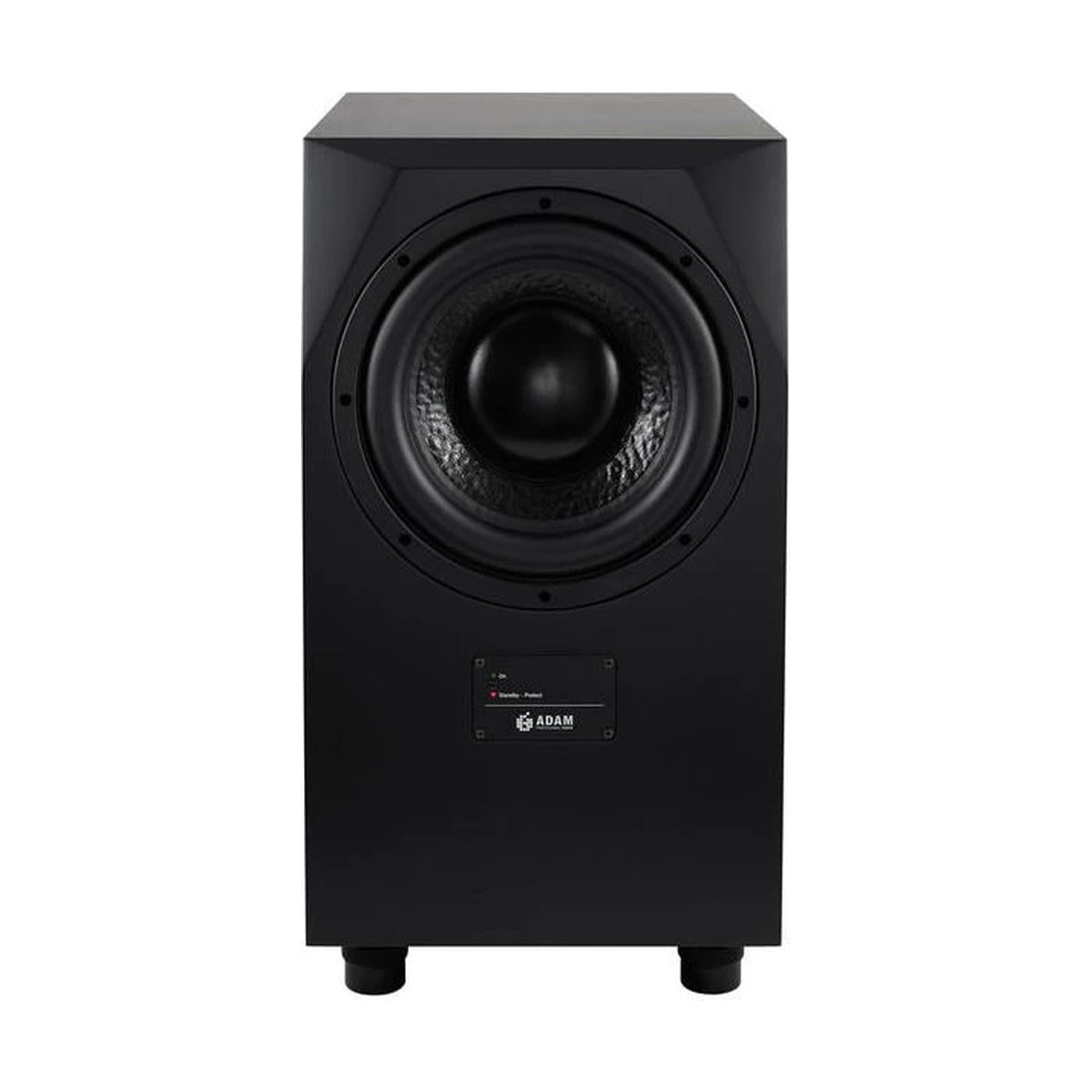

ADAM Audio Sub10 Mk2 – powerful active studio subwoofer designed to extend low frequencies of monitoring systems down to 25 Hz. Features sturdy 10-inch woofer with extended cone travel and heavy-duty coil, optimized for accurate reproduction in bass reflex enclosure. Down-firing bass reflex tube minimizes ventilation noise. PWM amplifier with over 90% efficiency handles critical passages without overheating. Additional output for cascading multiple subwoofers. Provides precise low cutoff (-3 dB at 25 Hz) and high SPL (113 dB at 1 m).
Sub10 Mk2 offers XLR/RCA inputs with 10 kOhm impedance, 50-150 Hz crossover, and max SPL 113 dB. Robust enclosure (560 x 300 x 400 mm, 21 kg) with rear panel for durability and easy setup. Ideal for nearfield and midfield monitoring in recording studios.
As ADAM series extension, Sub10 Mk2 combines innovations with precision, ready for professional listening without distortion.
MAIN FEATURES
- Extends low frequencies to 25 Hz
- 10-inch woofer with extended travel and heavy-duty coil
- Down-firing bass reflex tube for minimal noise
- PWM amplifier: 200 W RMS / 300 W music, >90% efficiency
- Additional output for cascading subwoofers
- Analog XLR/RCA inputs
- 50–150 Hz crossover
- 5-year warranty upon registration
- Portable: 560 x 300 x 400 mm, 21 kg
TECHNICAL SPECIFICATIONS
- Panel: Rear
- Weight: 21 kg (46.3 lb)
- Dimensions (H × W × D): 560 x 300 x 400 mm (22″ × 12″ × 15.5″)
- Warranty: 5 years (2 years standard + 3 years upon registration)
- Included: Power cord, manual
- Inputs: Analog XLR / RCA, impedance 10 kOhm
- Amplifier: PWM, 200 W RMS / 300 W music
- Acoustics: Frequency response 25 Hz–150 Hz, THD >60 Hz ≤1 %, max SPL ≥113 dB @ 1 m, crossover 50–150 Hz
- Driver: Basket diameter 10″, voice coil 2″ (50 mm), cone material paper
