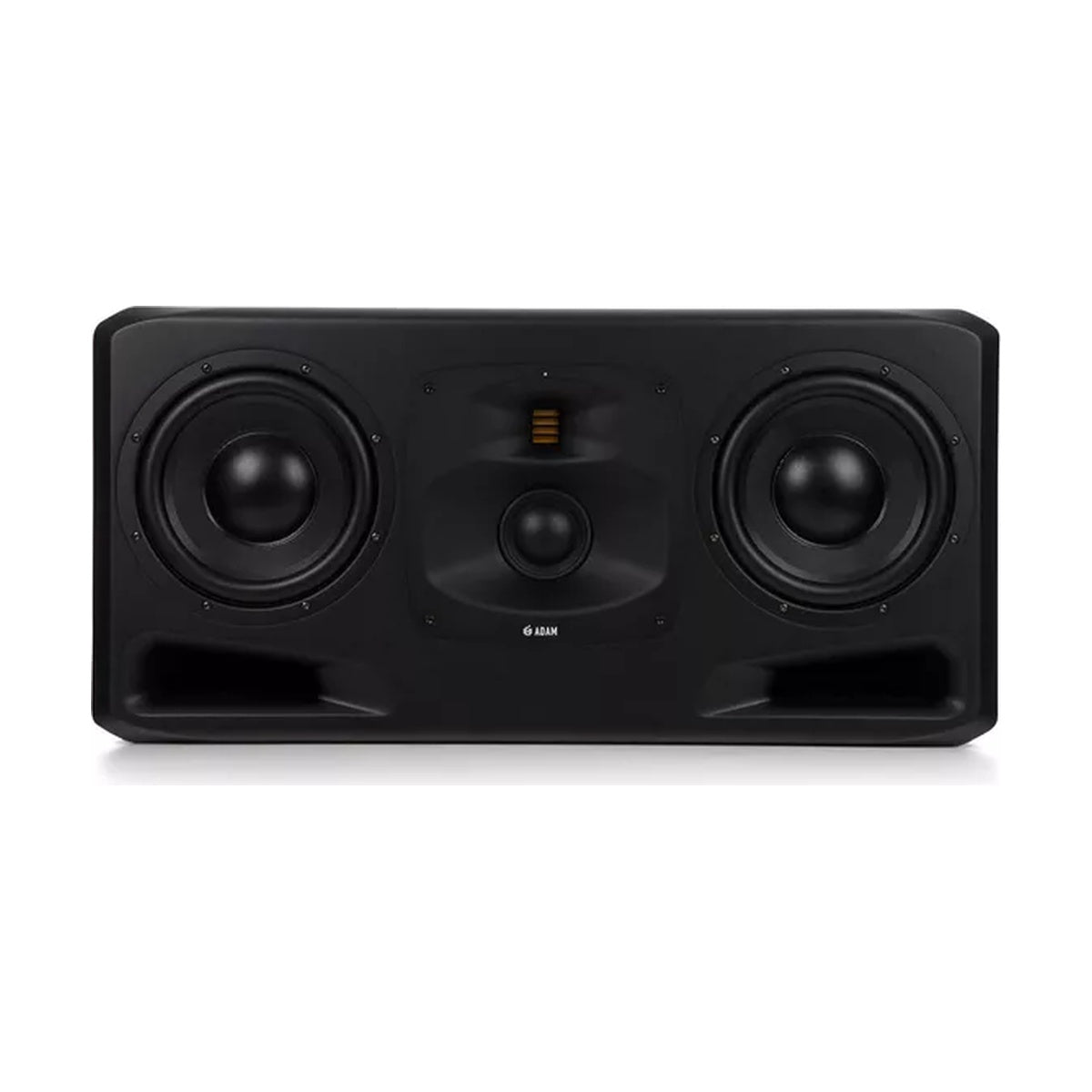

ADAM Audio S5H – high-end three-way main studio monitor designed for reference listening in large studios and control rooms, horizontally oriented. Features two 10-inch ELE bass drivers with SMA technology for distortion-free, controlled low-end. Mid-range handled by 4-inch DCH hybrid driver, highs by S-ART tweeter. HPS and MPS waveguides ensure stable dispersion. DSP optimizes crossovers, user EQ, and room tuning. Class D amplifiers (700 W LF, 300 W MF, 100 W HF) deliver dynamic, natural sound.
S5H offers XLR analog and AES3 digital inputs, with USB for software updates. Max SPL 131 dB (pair) and 22 Hz–50 kHz range ideal for pro mixes. Robust enclosure (430 x 885 x 500 mm, 72.6 kg) with rear panel for durability and easy setup.
As S Series flagship, S5H combines ADAM Audio innovations with advanced DSP for precise, uncompromising monitoring.
MAIN FEATURES
- Three-way design with horizontal mounting for main monitoring
- Two 10-inch ELE woofers with SMA for clean bass
- 4-inch DCH hybrid midrange combining cone and dome benefits
- S-ART tweeter – high-resolution folded-ribbon
- HPS and MPS waveguides for wide, stable dispersion
- DSP with crossover optimization, user EQ, and room tuning
- Three Class D amps: 700 W LF, 300 W MF, 100 W HF
- AES3 digital and XLR analog inputs, USB for updates
- Parametric EQ: 6, room compensation: 2 shelf EQ
- 5 preset memories, delay 0-5 ms
TECHNICAL SPECIFICATIONS
- Woofer: 2 x 10″ HexaCone, voice coil 3″ (76 mm)
- Midrange: 4″ DCH hybrid, carbon composite, voice coil 2.4″ (60 mm), MPS waveguide
- Tweeter: S-ART, area 4 in² (2420 mm²), equiv. diameter 2″ (56 mm), HPS waveguide
- Amplifiers: PWM Class D, 700 W LF, 300 W MF, 100 W HF RMS
- Frequency Response: 22 Hz–50 kHz (-20 dB)
- Max SPL: ≥131 dB @ 1m (pair)
- THD > 100 Hz: ≤0.3 %
- Inputs: Analog XLR (48 kOhm, max +24 dBu), Digital AES3
- Power Supply: 230 V / 115 V, 50/60 Hz
- Power Consumption: 900 W max
- Dimensions (H × W × D): 430 x 885 x 500 mm (16.9″ × 34.8″ × 19.7″)
- Weight: 72.6 kg (160 lb)
- Included: S5H, power cord, manual
- Product Code: ADAM-S5H
