What is Frequency Response
The frequency response of a studio monitor describes how loud each frequency is reproduced at equal input signal levels. A perfectly flat response means that all frequencies within the operating range are played back at the same level - with no boosting or attenuating of any region of the spectrum.
This is a fundamental distinction between a studio monitor and consumer audio equipment. Home Hi-Fi speakers and Bluetooth loudspeakers typically exaggerate low and high frequencies on purpose, to make the sound feel "bigger" and "more powerful". For music listening, that may be reasonable. For studio work - it is not: if the monitor adds bass, the engineer will inevitably cut it in the mix, and the result on other systems will be thin and lacking foundation.
How to Read Frequency Response in Specifications
Manufacturers publish frequency response as a range with a tolerance figure. For example: 50 Hz - 20 kHz ±2.5 dB. This means that within the stated range, the level deviation from a perfectly flat line does not exceed 2.5 dB up or down.
The narrower the tolerance, the more stable and even the response. Tolerance of ±3 dB is a fairly common standard for professional monitors. ±1.5 dB is already a very high level of precision, typical of top-tier studio solutions.

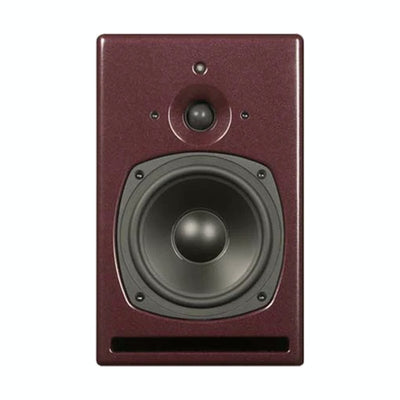

PSI Audio specifies a tolerance of ±2.5 dB from 50 Hz to 20 kHz for the PSI Audio A17-M. Every unit goes through individual calibration in an anechoic chamber and ships with its own measurement sheet. This is not a marketing exercise - it is a genuine production practice that ensures consistency from one pair to the next.
Bandwidth Boundaries
Specifications frequently state the lower boundary frequency at the -6 dB or even -10 dB point. That is more honest than simply writing "from 30 Hz" without specifying how much the level has dropped at that point. It is worth paying attention to at what roll-off level the bandwidth boundary is measured.
PMC uses ATL (Advanced Transmission Line) technology - an acoustic delay line that allows low-frequency reproduction to be extended without a conventional bass-reflex port. The PMC 6-2, a three-way monitor with dual 150 mm bass drivers, achieves -3 dB at 33 Hz - a significant figure for an enclosure of this size. Importantly, this is achieved not through DSP bass boost, but through cabinet design.
Phase Response
A good amplitude response does not yet guarantee accurate reproduction. Phase response - how evenly different frequencies reach the listener in time - affects monitoring accuracy equally. Phase problems around the crossover point can blur the stereo image and reduce the precision of instrument localisation.
PSI Audio addresses this through analog CPR (Compensated Phase Response) technology - a system of allpass filters that corrects the phase response down to 150 Hz without introducing digital latency. This is critical for monitors without DSP: the analog circuit operates with zero latency, which matters in environments with strict latency requirements.
A similar commitment to phase coherency is found in the ATC SCM25A Pro MKII - a three-way monitor built around ATC's proprietary soft-dome mid-range driver. This element delivers exceptional evenness and transparency in the 300 Hz - 3 kHz range, which is the most critical for work with vocals and primary instruments.
Room Influence on Monitoring
A monitor's frequency response is measured in an anechoic chamber - under conditions that do not exist in any real studio. As soon as the monitor is placed in a room, its response changes. Reflections from walls, room resonances (standing waves), and the influence of the desk and nearby surfaces add peaks and nulls that in the low-frequency range can reach 10-20 dB.
This does not mean the monitor's frequency response is irrelevant. It means it is only part of the equation. Solid room acoustics combined with a mid-range monitor will often deliver a more reliable result than top-tier equipment in an untreated space.
This is worth keeping in mind when comparing models based solely on manufacturer graphs. Independent measurements published on platforms such as Audio Science Review show monitor behaviour across the full bandwidth including off-axis response, which provides a more complete picture than official specifications alone.
Sound Character vs. Flat Response
Every monitor, even one with a near-flat response, has its own character. ATC builds its monitors around a proprietary soft-dome mid-range driver - this delivers exceptional evenness and transparency in the mid band. Some engineers describe ATC's presentation as "non-fatiguing" and "clinically accurate"; others find it too neutral for creative work - and both assessments are valid, as they refer to the same set of engineering trade-offs viewed from different perspectives.
Barefoot Sound takes a different approach. Their monitors, including the Barefoot Sound Footprint01 Gen2, offer MEME (Multi Emphasis Monitor Emulation) - a function that switches between several playback modes: Flat (the most accurate setting with a flat frequency response), Hi-Fi (simulating a home stereo system), OldScl (emulating the classic Yamaha NS-10M), and Cube (emulating the Auratone Sound Cube). This is not a quality compromise - it is a cross-referencing tool that allows the engineer to check how a mix will translate across different system types without leaving the room.
An important distinction: "flat frequency response" and "neutral character" are not the same thing. The first is described by numbers, the second is perceived subjectively. Engineers who work on the same monitors for years adapt to their character - and that is a normal and accepted professional practice.
What to Check When Choosing a Monitor
Looking only at frequency response figures in specifications is not sufficient. The following elements are worth examining:
- Tolerance and measurement method. A range of ±2 dB from 60 Hz to 18 kHz is a more honest parameter than "20 Hz - 20 kHz" with no stated tolerance.
- Phase response. Particularly at the crossover point - this determines stereo image quality and localisation precision.
- Cabinet design. Bass-reflex, sealed enclosure, transmission line - each solution involves different trade-offs in the low-frequency range. PMC ATL and the sealed enclosures of PSI Audio represent two different approaches to the same problem.
- Independent measurements. Spinorama data from independent sources give a fuller picture than manufacturer specifications.
- Room acoustics. Investment in basic acoustic absorption affects monitoring reliability no less than the choice of monitors themselves.
Frequency response is an important but not self-sufficient parameter when evaluating a studio monitor. It describes the behaviour of the dynamic system under ideal conditions and serves as a starting point - but it is not the final criterion. In practice, monitoring accuracy depends on a combination of factors: cabinet design, phase response, off-axis behaviour, the quality of room acoustic treatment, and - ultimately - accumulated experience working with a specific system. Manufacturers such as PSI Audio, PMC, ATC and Barefoot Sound offer fundamentally different engineering approaches to solving the same problem - and each of those approaches involves its own well-reasoned trade-offs.
