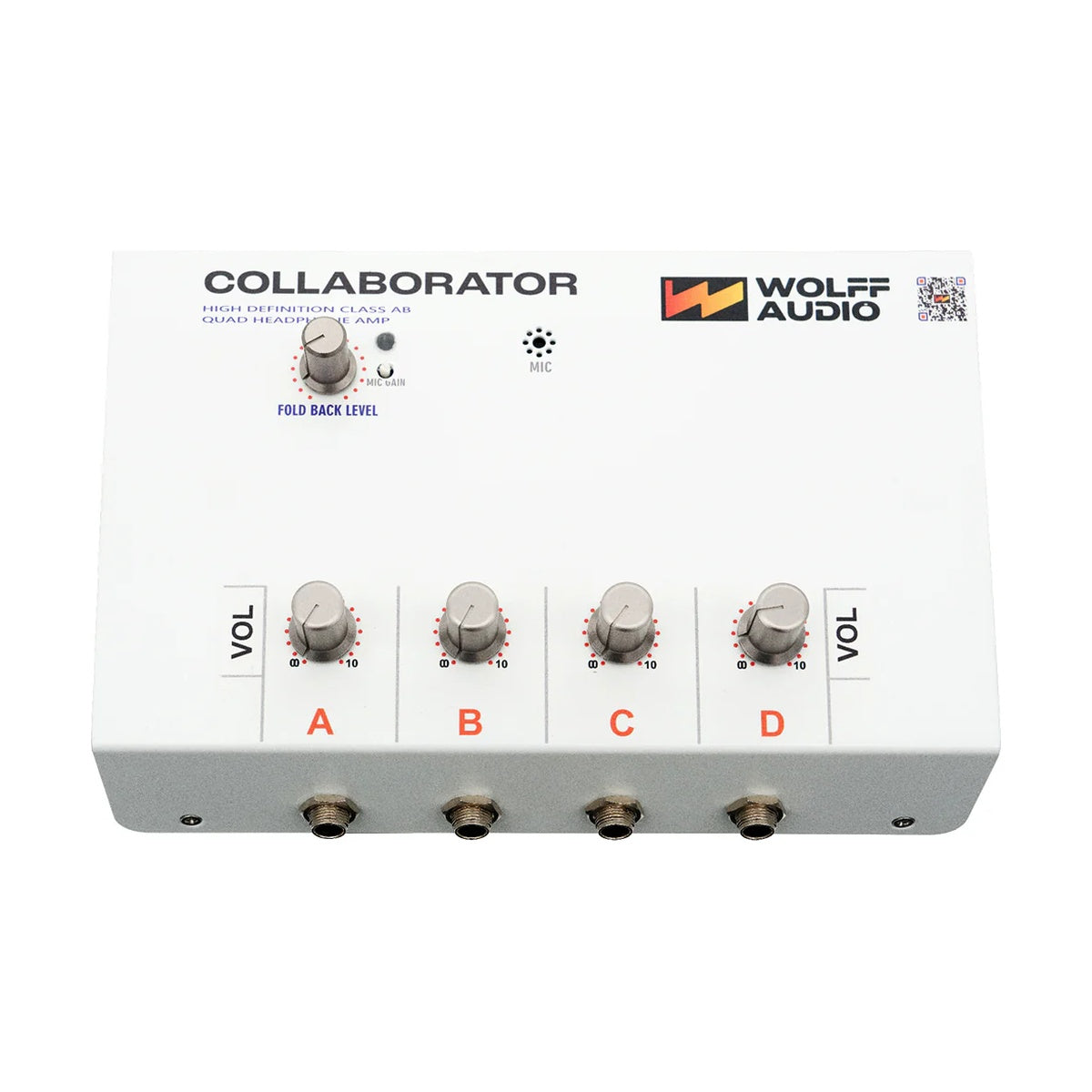

Wolff Audio Collaborator

Wolff Audio Collaborator – a 4-channel reference headphone amplifier system built like a tank, featuring a unique "HearMe" foldback microphone for seamless communication and room monitoring.

The Collaborator is designed to foster efficient teamwork in the studio. Its rugged steel chassis houses four independent high-definition headphone amplifiers, each with its own level control. A standout feature is the built-in "HearMe" foldback microphone, allowing musicians to hear each other and communicate without removing their headphones. With adjustable mic gain and foldback level, each artist can blend in the perfect amount of room sound (e.g., a drummer can bleed in natural room ambience). The mic can be toggled on and off via a standard footswitch.

The system is scalable – a rear TRS headphone level input allows multiple Collaborator units to be daisy-chained, making it perfect for choirs or horn sections. Power is delivered by an external 5-pin supply (the same used for Wolff's 500 series), ensuring massive headroom and punch. Main audio inputs are professional XLRs handling +4 dBu line-level signals.

KEY FEATURES

• 4 High-Def Channels: Four independent headphone amps in a single, robust enclosure.
• HearMe Mic: Built-in foldback/talkback mic with gain trim and blend level controls.
• Real-time Collaboration: Artists can talk and hear the room without taking off headphones.
• Scalability: Daisy-chain multiple units to support larger groups (choirs, orchestras).
• Pro Inputs: Main XLR L/R inputs (+4 dBu) and footswitch jack for mic activation.
• Power: External 5-pin power supply ensuring high headroom and punch.
• Design: Heavy-duty Desktop chassis, perfect for placement in the live room.

TECHNICAL SPECIFICATIONS

• Type: 4-Channel Headphone Amplifier
• Channels: 4 independent stereo outputs (1/4" TRS)
• Audio Inputs: 2 x XLR (Analog L/R, +4 dBu), 1 x TRS (Headphone Level Input - for linking)
• Microphone: Built-in "HearMe" Foldback Mic (with Gain and Level controls)
• Controls: Individual volume knobs for each headphone output
• Power: External (5-pin, standard 500 series)
• Other I/O: 1/4" Jack for footswitch (Talkback on/off)
• Chassis: Steel, Desktop
