Verbos Electronics Complex Oscillator

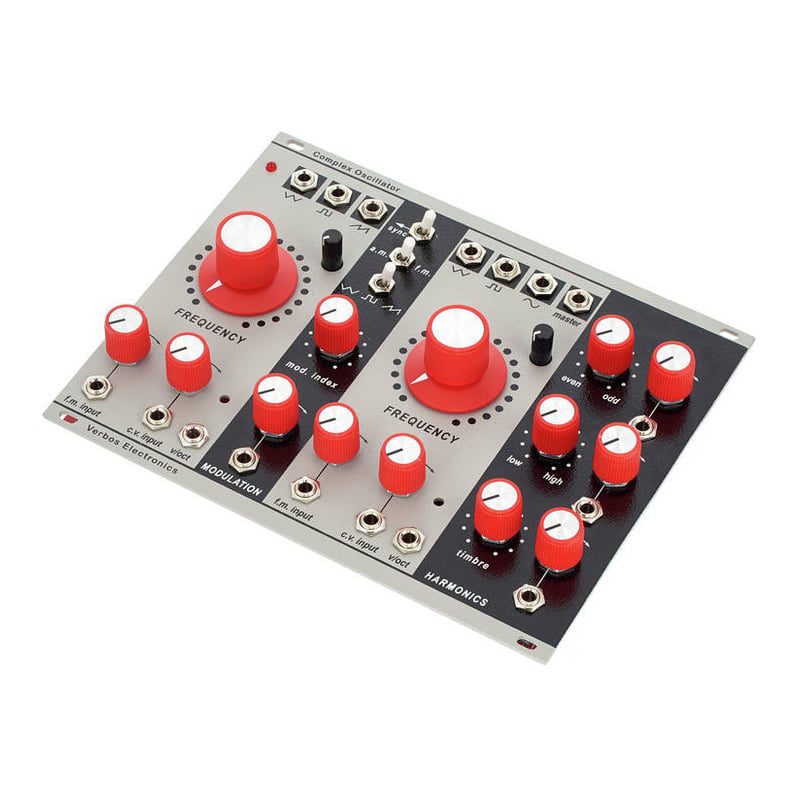

TheVerbos Electronics Complex Os cillator is a Buchla 259-type module and oscillator for Euroracks, in which one oscillator modulates another with additional features that affect timbre.

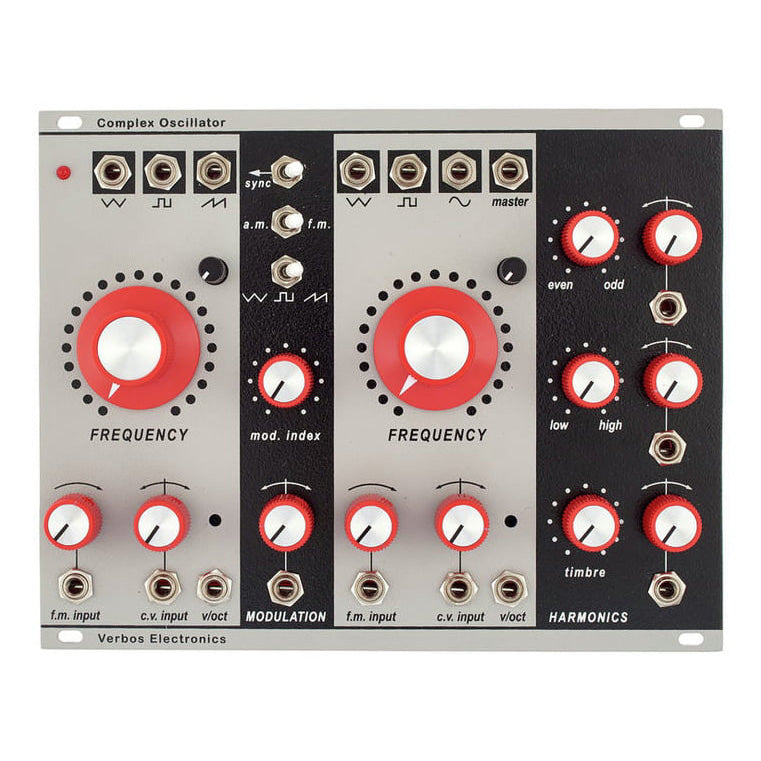

TheVerbos Electronics Complex Os cillator is made as a master oscillator on the right with a voltage-controlled waveshaper and a modulating oscillator on the left for AM and FM synthesis. The left oscillator can also be used as an LFO. In the middle of the module is the Modulation Index, which adjusts the AM or FM effect power of the modulating oscillator, and next to the main oscillator knobs is the Attenuator.

To the right of the main oscillator is the Harmonics section, through which we arrive at rich harmonic colours, symmetry and order in the output signal. At the minimum tone setting, the main output will be a sine wave, while at the maximum the waveform can transform into a rectangle, sawtooth or dual-frequency sawtooth.

SPECIFICATIONS

• Modulation-oscillator frequency range: from 1 cycle per minute to 500 Hz
• Available waveforms: Triangle, Rectangle, Sawtooth
• Main oscillator frequency range: 3 Hz - 20 kHz
• Available waveforms: Triangle, Rectangle, Sinus, Master (from external source)
• Modulation bus with AM, FM, OFF switch and modulation source switch
• Modulating oscillator can be synchronised with master oscillator
• Power supply: +70mA (+12V) / -50mA (-12V)
• Width: 32 HP
• Eurorack format
