Rupert Neve Designs

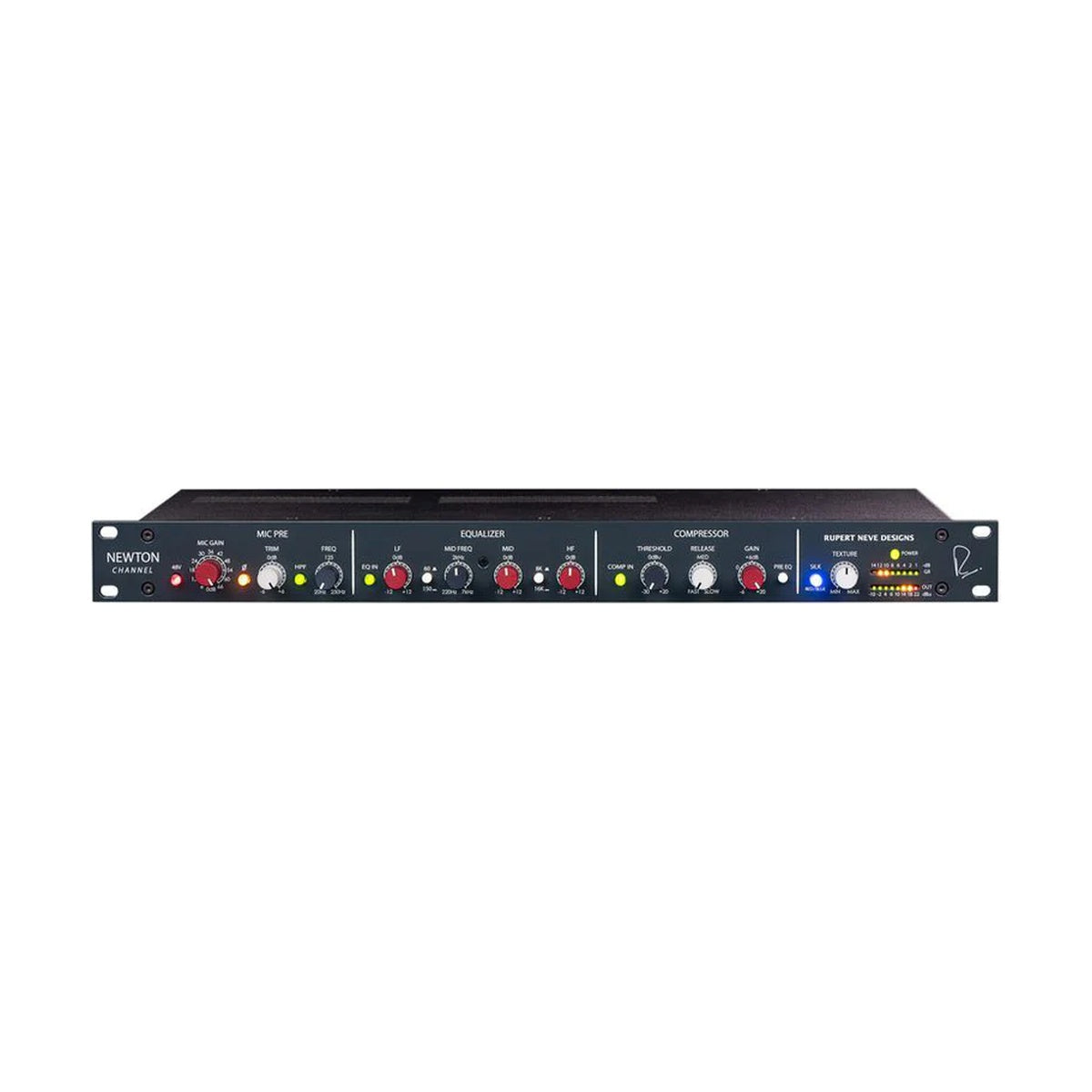

Rupert Neve Designs Newton Channel
Channel Strip
- With microphone preamp, EQ and compressor
- Class-A microphone preamp
- 72 dB gain including 6 dB fine-tuning
- 48 V phantom power and phase reversal switchable
- High-pass filter adjustable in 31 steps from 20 to 250 Hz
- 3-Band EQ with 31-step potentiometers
- Fast VCA compressor with +20 dB make-up gain and pre-EQ/post-EQ option
- Variable Silk-Red and Silk-Blue circuits for amplifying 2nd and 3rd order harmonics
- Silk-Red mode enhances the harmonic content of highs and high mids
- Silk-Blue mode amplifies the harmonic content of basses and low-mids
- Specially designed transformer output stage
- Separate -6 dBu XLR output: Newton Channel can be fully modulated to achieve more harmonics without overdriving the next unit in the chain
- Main Out and -6 dB Out can be used simultaneously
- Stereo link via 6.3 mm jack possible
- Dimensions (W x D x H): 483 x 206 x 45 mm
