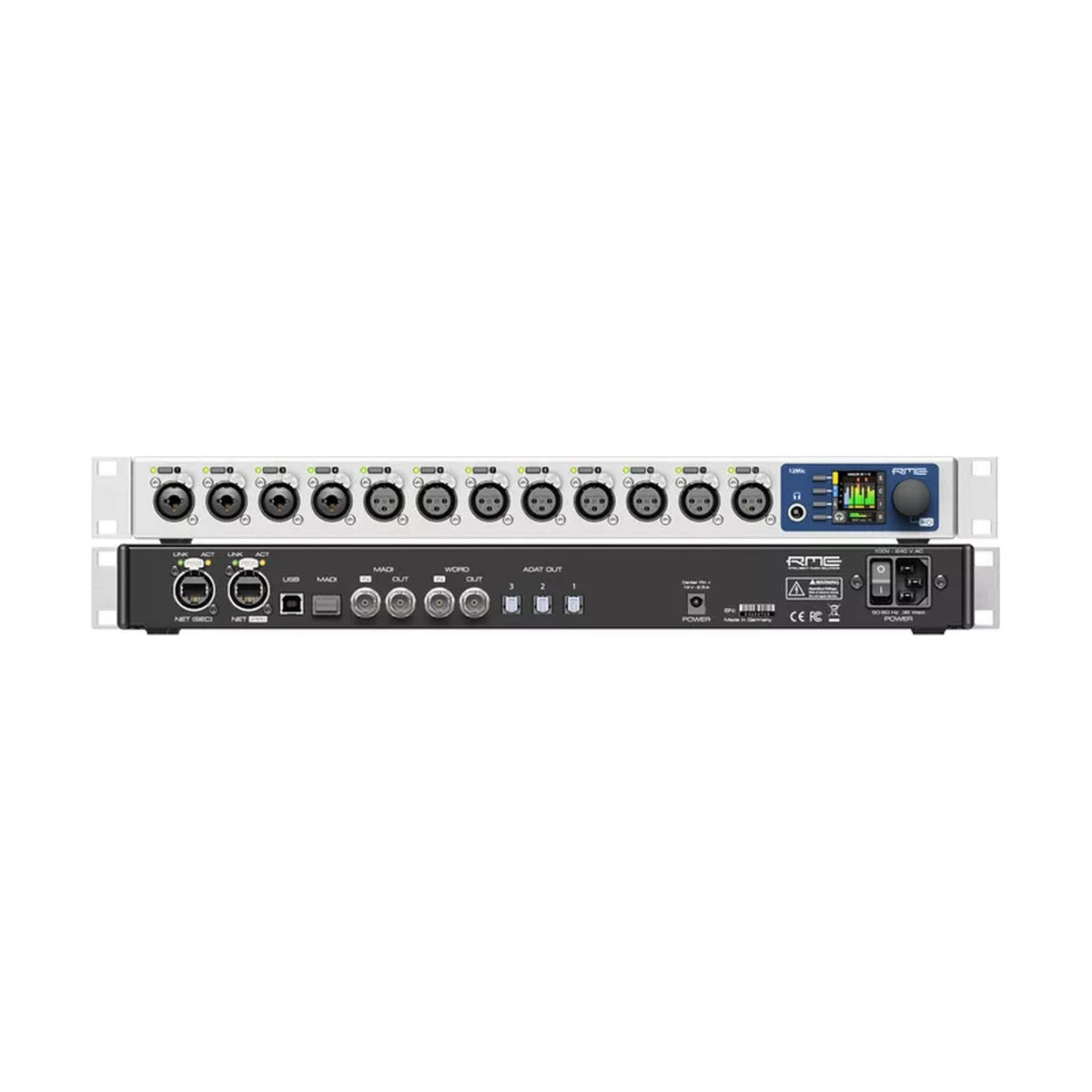

RME 12Mic – twelve-channel digitally controlled microphone preamp with no-compromise A/D conversion, integrated AVB and MADI connectivity, designed for professional recording studios and audio networks. Delivers pristine, transparent audio with 75 dB gain range, accepts signals up to +18 dBu without PAD, with redundant power and connectivity options. Compact rackmount enclosure (440 x 44 x 243 mm, 2.8 kg) ideal for studios or live setups.
12Mic provides 12 mic/line inputs with 24-bit/192 kHz conversion, 4 TRS inputs with Hi-Z for instruments, ADAT outputs (up to 24 channels), coaxial/optical MADI, and AVB with dual Gigabit Ethernet ports. SteadyClock FS minimizes jitter, routing matrix enables flexible signal paths. Control via 1.54” color display panel or remote web-interface. Supports MILAN for AVB without switch config, low latency, and redundancy.
As a pro tool, 12Mic combines precision with versatility, ready for audio networks without quality compromises.
MAIN FEATURES
- 12 mic/line channels with studio-grade 24-bit/192 kHz conversion
- 4 XLR/TRS inputs with Hi-Z for mics, lines, and instruments
- MADI connectivity (coax/optical, redundancy), ADAT (3 outputs, up to 24 channels)
- AVB: 2 Gigabit Ethernet ports, 8 streams (up to 16 channels each), MILAN compliant
- SteadyClock FS for ultra-low jitter and clarity
- Control: 1.54” color display panel, knob, web-interface via USB/Wi-Fi
- Routing matrix to headphone and digital signals
- Redundancy: power, MADI, AVB
- Word Clock I/O for sync
- Optional SFP MADI module and PSU redundancy
TECHNICAL SPECIFICATIONS
- Channels: 12 mic/line inputs, up to 64 MADI (single), 32 (double), 16 (quad); 8 AVB streams (up to 16 ch each)
- A/D Conversion: 24-bit, THD < -110 dB, SNR > 117 dB (XLR), EIN < -123 dB
- Frequency Response: 8 Hz–20.8 kHz @ 44.1 kHz; 3 Hz–43.7 kHz @ 192 kHz
- Inputs: 12 x XLR (mic/line, 3.4 kOhm), 4 x TRS (Hi-Z, 1 MOhm), MADI coax/opt, Word Clock BNC, 2 x Gigabit Ethernet RJ45, USB 2.0
- Outputs: 3 x ADAT TOSLINK, MADI coax/opt, Word Clock BNC, Phones 6.3 mm TRS
- Power Supply: Internal 100-240 V AC, 30 W; optional 12 V DC, 2.5 A; typical 20 W
- Dimensions (W × H × D): 440 x 44 x 243 mm
- Weight: 2.8 kg
- Included: 12Mic, manual; optional SFP MADI, PSU redundancy
- Product Code: RME-12Mic
