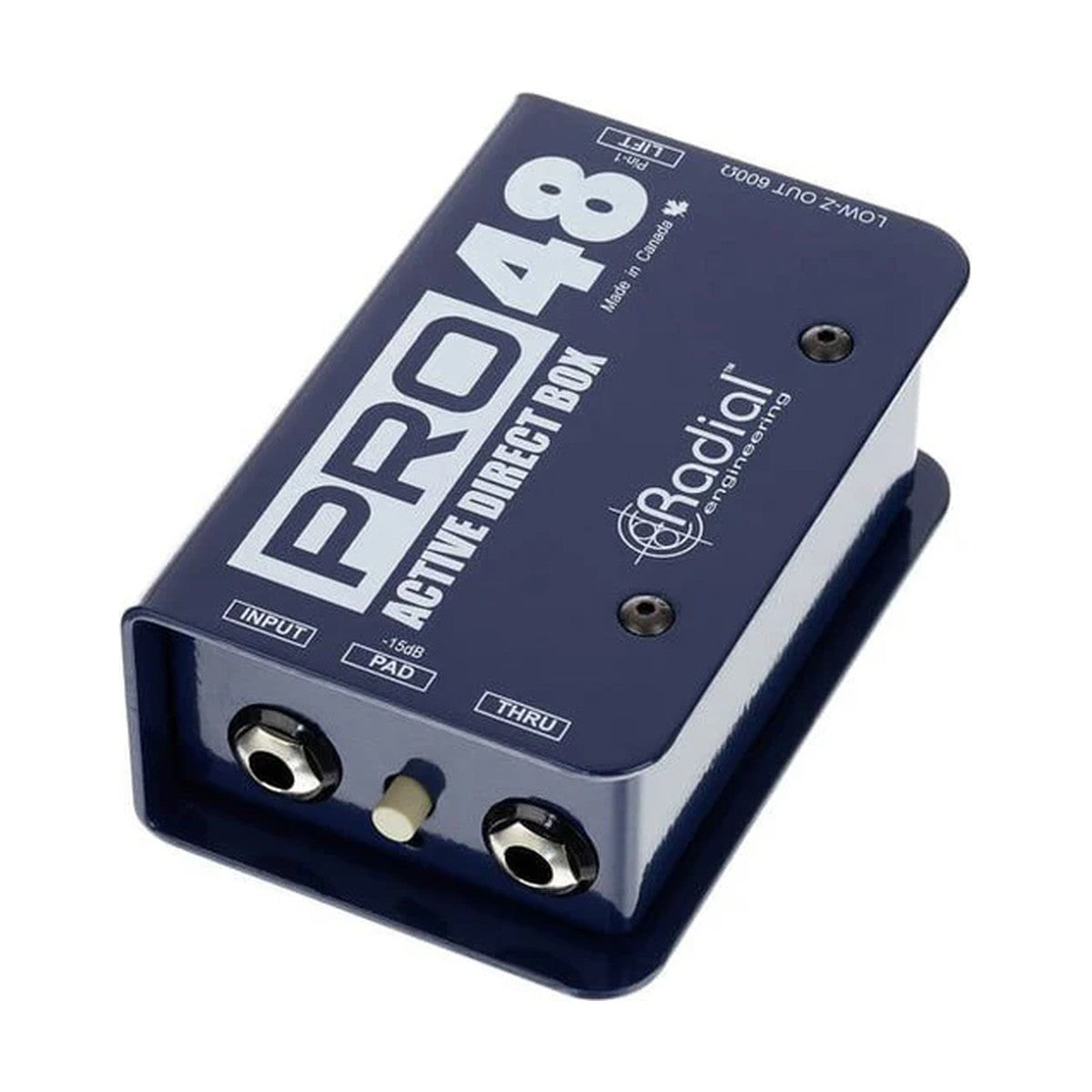

Radial Pro48

Radial Engineering Pro48 – compact active DI with 48V phantom power for stage/home studios. Handles active/passive instruments with exceptional signal integrity for natural, uncolored sound. Ideal for high-output acoustic guitars/basses, minimizing distortion. Rugged 14-gauge steel enclosure (158 x 133 x 57 mm, 0.9 kg) with protective book-ends.

Pro48 features power switch, -15 dB PAD for hot signals, ground lift to eliminate hum. Internal switching supply boosts headroom, linear response 20 Hz–40 kHz. 1/4" passthrough to amp. Hand-soldered for durability.

As versatile tool, blends simplicity with precision, ready for live/recordings without compromise.

MAIN FEATURES

• Active DI with 48V phantom for active/passive
• -15 dB PAD for high-output instruments
• Ground lift for hum reduction
• 1/4" passthrough to amp
• Book-end design with 14-gauge steel
• Internal switching supply for headroom
• Linear response 20 Hz–40 kHz
• Portable: 158 x 133 x 57 mm, 0.9 kg

TECHNICAL SPECIFICATIONS

• Input: 1/4" TS unbalanced, impedance 220 kOhm (+220 kOhm with PAD)
• Output: XLR balanced, max +6 dBu
• Frequency Response: 20 Hz–40 kHz (±1.5 dB)
• THD + N: 0.05% @ 0 dBu 1 kHz
• Noise: -99 dBu (22 Hz–22 kHz)
• Dynamic Range: 109 dB
• Output Impedance: 300 Ohms balanced
• Power: 48V phantom, 2 mA
• Dimensions (W × H × D): 158 x 133 x 57 mm
• Weight: 0.9 kg
• Included: Pro48, manual
• Product Code: RAD-PRO48
