PSI AUDIO
PSI AUDIO A23-M Metal Black
This item is available on a custom order basis only. Please contact us for more details. Contact us

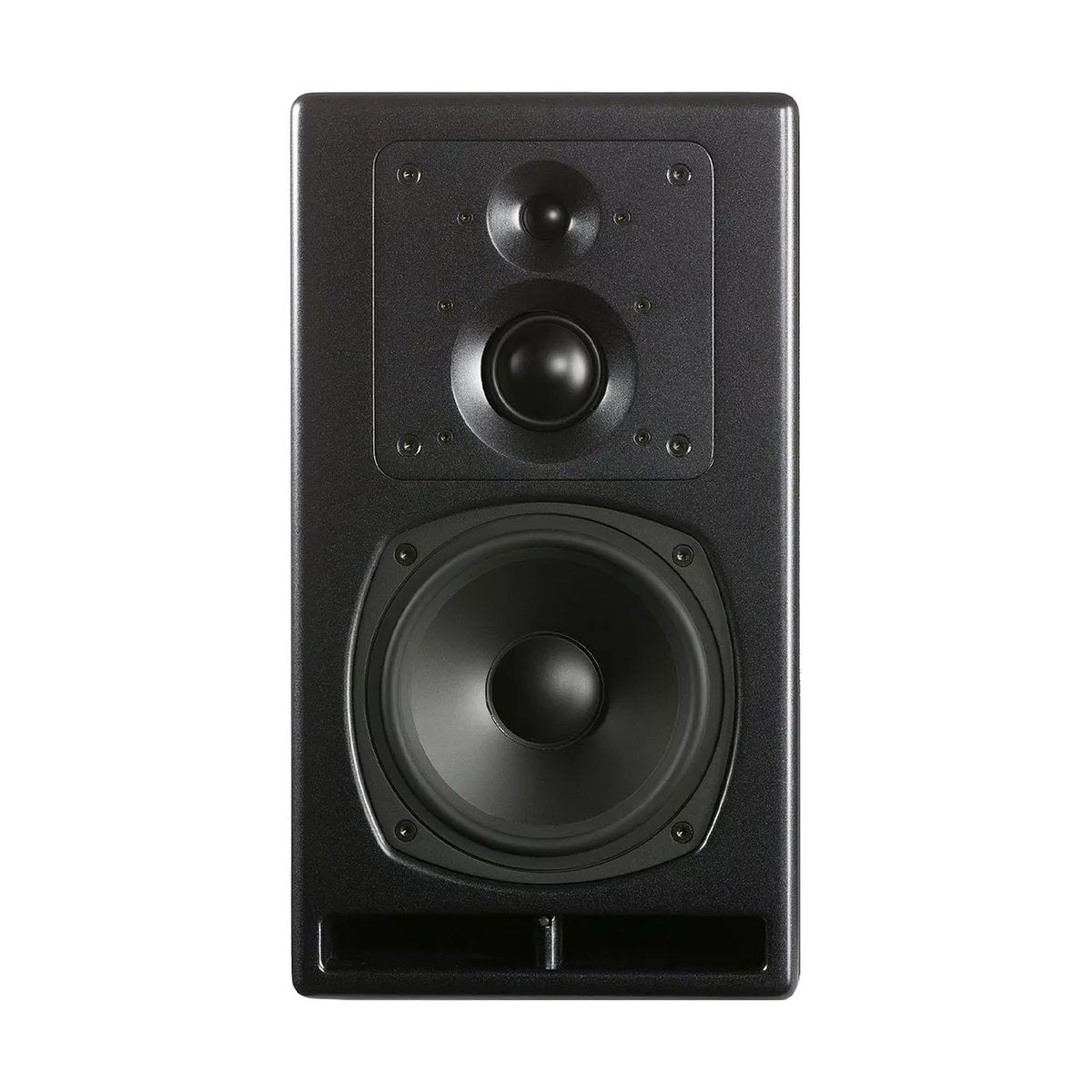

PSI Audio A23-M Studio Monitor (Metal Black) – Compact 3-way active near/midfield monitor with 310 W (LF) + 120 W (MF) + 55 W (HF) Class G/H amplification. Features handcrafted 9.4″ woofer, proprietary 6.8″ EXD midrange, and swivel 1″ dome tweeter. Fully analog signal path (no DSP), flat 34 Hz–23 kHz response (–6 dB), 122 dB peak SPL, and individually calibrated.
The A23-M combines advanced analog electronics with a unique midrange driver developed in-house. Its handmade tweeter and midrange, rotatable baffle, and precision bracing deliver unrivaled clarity and perfect stereo imaging in a compact enclosure.
KEY FEATURES
- 3-way active monitor, 100% analog signal path (no DSP)
- 9.4″ (240 mm) woofer, 6.8″ (172 mm) EXD midrange, 1″ (27 mm) dome tweeter
- Class G/H amps: 310 W LF, 120 W MF, 55 W HF
- Frequency range: 34 Hz–23 kHz (–6 dB); flat ±1.5 dB
- Peak SPL: 122 dB; S/N ratio: 100 dBA
- Crossover at 620 Hz & 3.3 kHz; 24 dB/octave slopes
- Dispersion: 85° horizontal × 40° vertical
- Dimensions: 280 × 500 × 340 mm; Weight: 18 kg
- Input: XLR female; Power: 100–240 VAC
- 5 + 1 year warranty; handmade in Switzerland
TECHNICAL SPECIFICATIONS
- System: 3-way active near/midfield monitor
- LF driver: 240 mm (9.4″); 310 W amp; –3 dB @ 34 Hz
- MF driver: 172 mm (6.8″) EXD; 120 W amp; 620 Hz crossover
- HF driver: 27 mm (1″) dome; 55 W amp; 3.3 kHz crossover
- Signal path: analog only
- SPL tolerances: ±1.5 dB; Phase tolerances: ±45° (200 Hz–20 kHz)
- Dispersion: 85° × 40°
- Crossover slopes: 24 dB/octave
- Input: XLR female, 20 kΩ
- Dimensions (W×H×D): 280 × 500 × 340 mm (11″ × 19.7″ × 13.4″)
- Weight: 18 kg (39.6 lb)
- Power: 100–240 VAC, 50–60 Hz
