Prism Sound

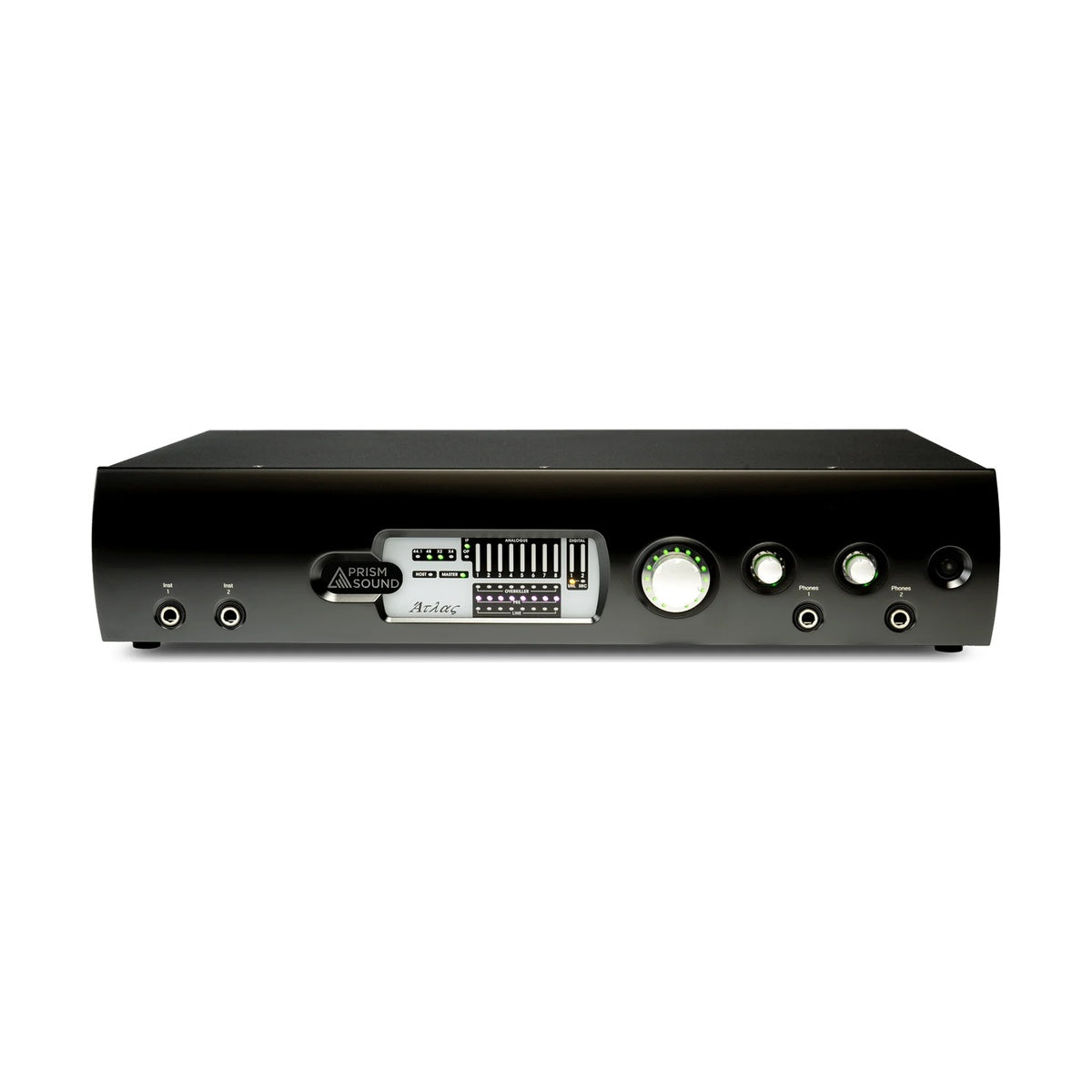

Prism Sound Atlas
Quantity:
Pickup available at Warsaw Showroom
Prism Sound Atlas
Warsaw Showroom
Pickup available, usually ready in 24 hours
Nowogrodzka 6
102
00-513 Warszawa
Poland
Prism Sound Atlas is a USB audio interface with 8 microphone preamps, 2 instrument inputs, 2 headphone outputs, 10 digital inputs and outputs, Overkillers limiters on each analog channel, and a built-in digital mixer.
The multi-channel audio interface Prism Sound Atlas is designed for both personal and professional use by musicians, composers, sound engineers, producers, recording studios, and post-production facilities. Atlas is ideal for recording, mixing, multitracking, sound layering, mastering, and analog summing.
Eight analog and up to 10 digital input channels are available to the DAW through the audio drivers of the connected computer. Eight analog and up to 10 digital output channels, as well as headphone stereo outputs, allow for a total of 20 different channels to be reproduced. For monitoring in headphones or through main outputs, each output pair can optionally be controlled by the built-in DSP mixer. All analog inputs are electronically balanced, with an automatic unbalanced mode. Analog outputs are electronically balanced with "initial loading," meaning the level is maintained if one "leg" is grounded.
Optional digital interfaces (Pro Tools | HDX and AES3 options) can be connected to Atlas via the multi-channel MDIO slot. The presence of the MDIO slot also means that in the future, Atlas will be able to work with new digital interfaces, as well as existing ones that are currently unavailable as an option.
Atlas is compatible with Windows (Vista and above) and Mac OS 10.4.11 and above. After setup using a computer, the interface can operate autonomously using ADAT, S/PDIF, or AES3 I/O interfaces.
Key features and specifications:
The multi-channel audio interface Prism Sound Atlas is designed for both personal and professional use by musicians, composers, sound engineers, producers, recording studios, and post-production facilities. Atlas is ideal for recording, mixing, multitracking, sound layering, mastering, and analog summing.
Eight analog and up to 10 digital input channels are available to the DAW through the audio drivers of the connected computer. Eight analog and up to 10 digital output channels, as well as headphone stereo outputs, allow for a total of 20 different channels to be reproduced. For monitoring in headphones or through main outputs, each output pair can optionally be controlled by the built-in DSP mixer. All analog inputs are electronically balanced, with an automatic unbalanced mode. Analog outputs are electronically balanced with "initial loading," meaning the level is maintained if one "leg" is grounded.
Optional digital interfaces (Pro Tools | HDX and AES3 options) can be connected to Atlas via the multi-channel MDIO slot. The presence of the MDIO slot also means that in the future, Atlas will be able to work with new digital interfaces, as well as existing ones that are currently unavailable as an option.
Atlas is compatible with Windows (Vista and above) and Mac OS 10.4.11 and above. After setup using a computer, the interface can operate autonomously using ADAT, S/PDIF, or AES3 I/O interfaces.
Key features and specifications:
- Prism Sound signature sound quality
- 8 ADC/DAC channels
- 8 built-in microphone preamps with -130 dBu EIN
- Microphone preamps with individual phantom power switches and 20 dB pads
- MS matrix for microphone inputs
- Compatibility with ASIO and Core Audio
- 2 instrument inputs
- MDIO expansion slot
- RIAA equalization on inputs 1 and 2
- Prism Sound signature Overkillers limiters on each analog channel
- Fully floating (isolated) balanced architecture for optimal noise rejection
- Mono and stereo input configurations
- Option to select DAW bus or Atlas mixer
- Built-in digital mixer with low latency
- Fader, pan, cut, solo on each mixer channel
- 2 headphone outputs with separate level controls on the front panel
- Stereo, 5.1, 7.1, or surround configurations
- Built-in sample rate conversion on S/PDIF inputs and outputs
- Prism Sound 4-curve SNS noise suppression feature on digital outputs
- Internal clock generator with proprietary hybrid technology
- Dimensions 440 mm x 290 mm x 95 mm
- Weight 5 kg
