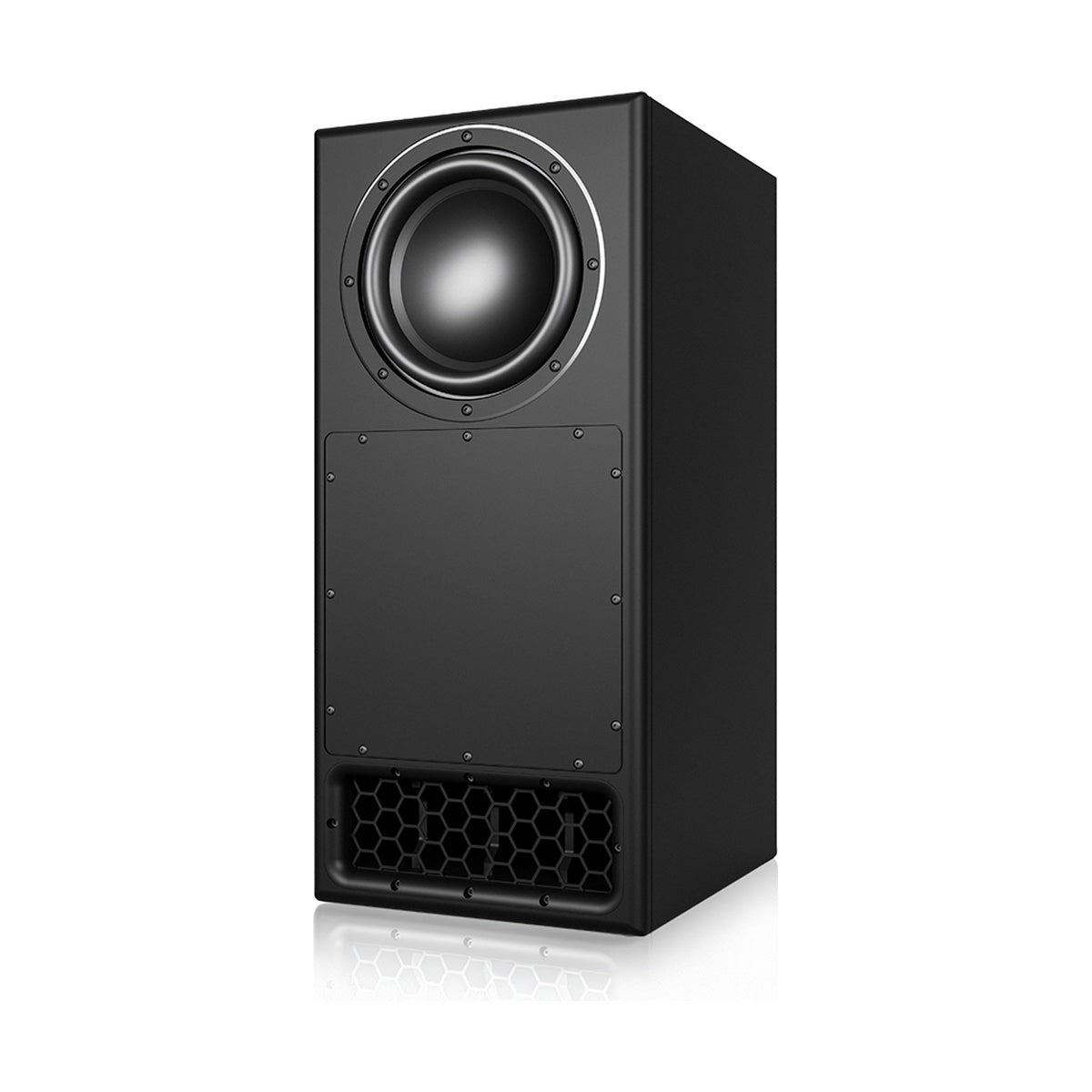

PMC 10 SUB XBD - 10 inch Low-Frequency XBD Cabinet

PMC 10 SUB XBD is a sophisticated 10-inch low-frequency cabinet designed as the foundation for the most compact systems in the new Main Monitor Series (such as the PMC10 XBD). Despite its smaller footprint, this module delivers powerful, reference-grade bass, serving as a critical extension for main monitors in small to medium-sized control rooms. At its heart is the new PMC 10-inch (250mm) Radial™ bass driver, which, thanks to an optimized voice coil and motor assembly, offers exceptional speed, transient precision, and deep extension required for professional monitoring.

The subwoofer utilizes the legendary Advanced Transmission Line (ATL™) technology, which, paired with the innovative LaminairX™ vent system, eliminates turbulent air noise and ensures linear bass response even at high volume levels. The module is fully integrated into PMC's digital control ecosystem, powered by efficient Class-D amplification and managed via the advanced SoundAlign2™ interface. In an XBD configuration, adding this module increases the system's maximum SPL by 3 dB and significantly improves headroom, enabling full-dynamic performance in demanding stereo and Dolby Atmos applications.

KEY FEATURES

• Dedicated XBD cabinet with a 10-inch (250mm) bass driver
• Compact footprint ideal for small to medium-sized studios
• ATL™ (Advanced Transmission Line) technology for deep bass extension
• LaminairX™ aerodynamic vent eliminates port turbulence
• New 10" Radial™ driver with high power handling and precision
• Full integration with SoundAlign2™ management system
• Increases system headroom and SPL by 3 dB in XBD configuration
• Suitable for soffit mounting or free-standing placement

TECHNICAL SPECIFICATIONS

• Driver: 10” (250mm) Radial™ Driver
• Loading Technology: ATL™ with LaminairX™ vent
• Frequency Response: Extends main system response (model dependent)
• Amplification: Dedicated Power module (configuration dependent)
• Control: Digital DSP with SoundAlign2™ network interface
• Max SPL: Increases main system output (up to >125 dB peak in XBD system)
• Connectivity: Analog / AES3, Ethernet (control)
