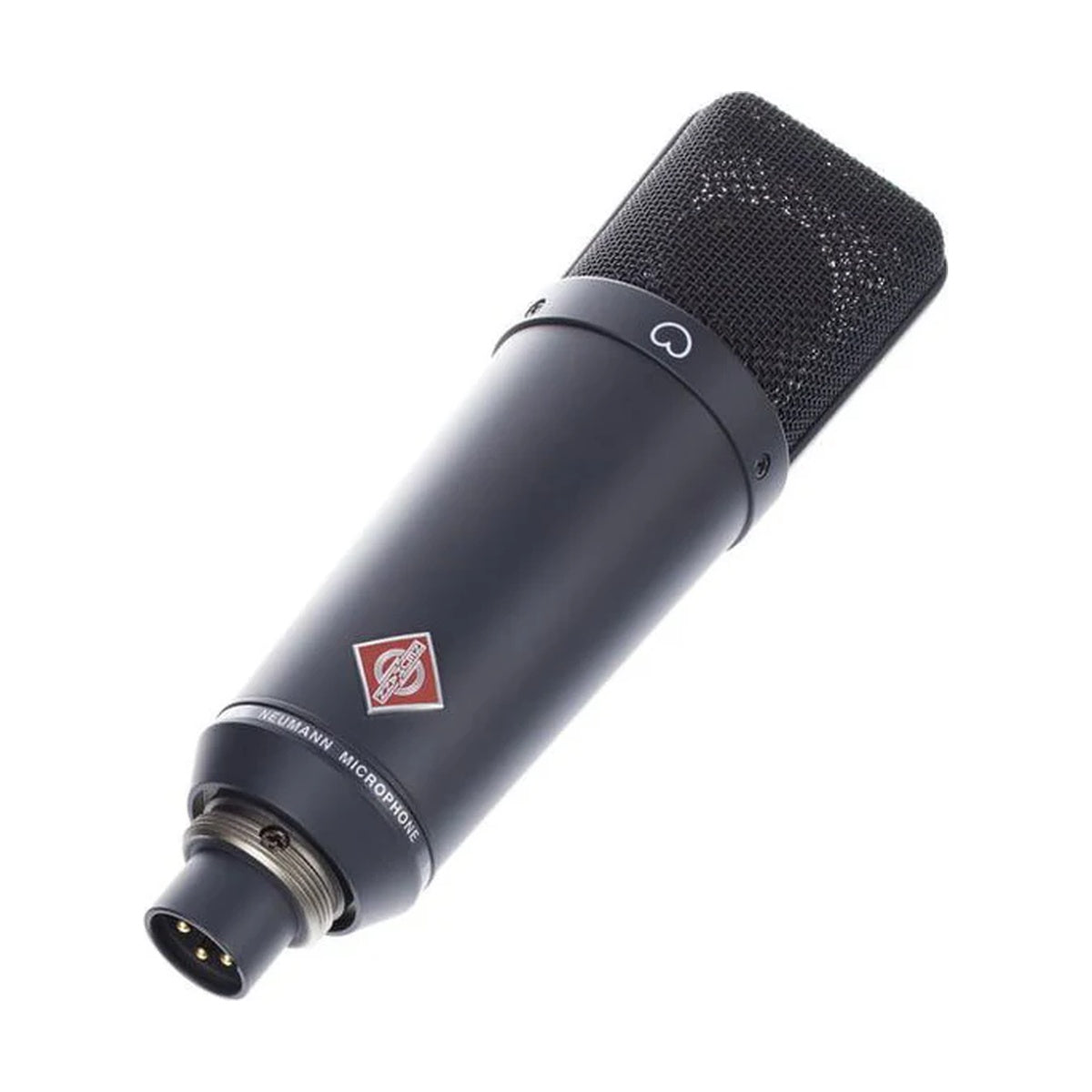

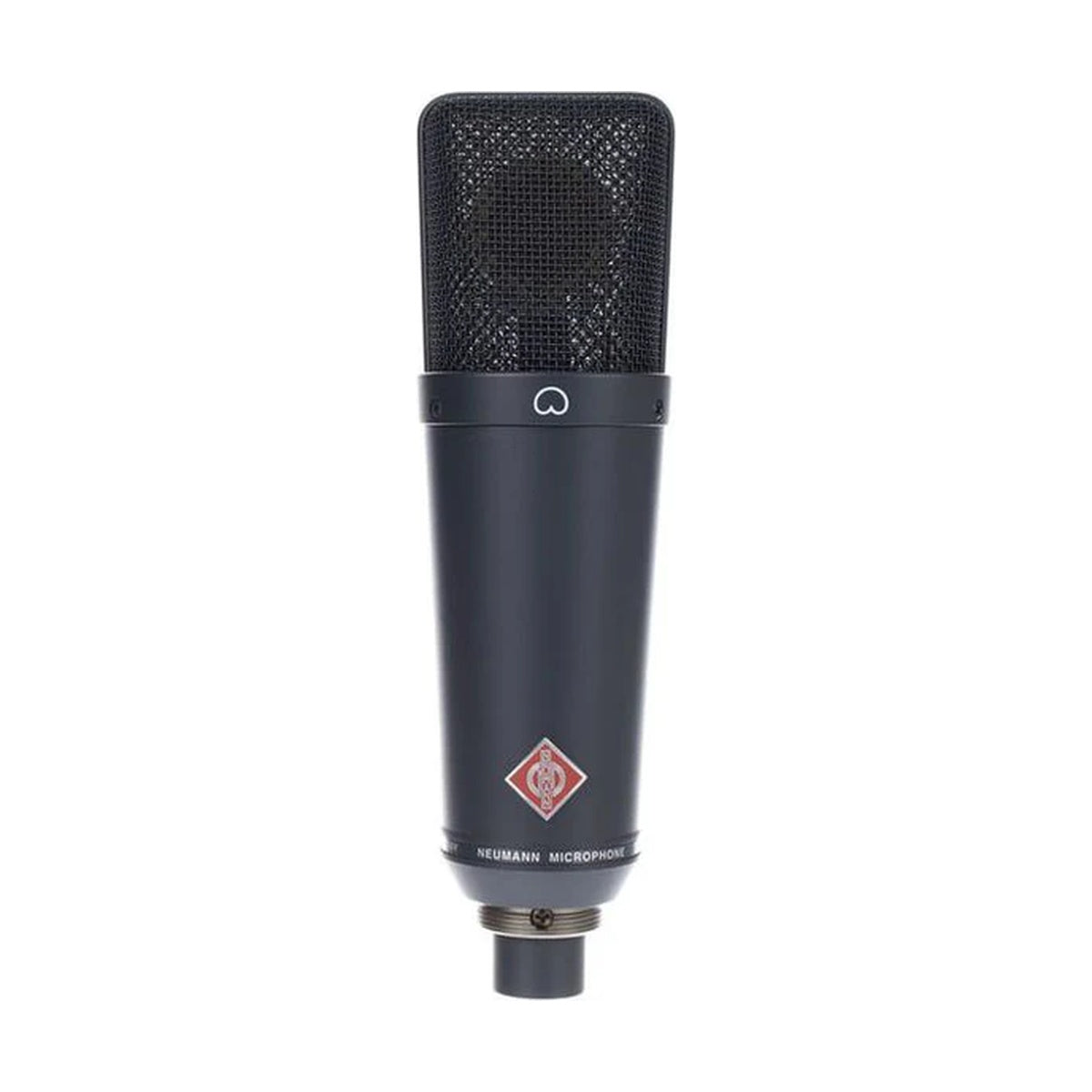

Neumann TLM 193

Neumann TLM 193 is a reference-class large-diaphragm studio microphone designed for project studios, broadcast applications, and all situations where a single, fixed polar pattern is sufficient. With its pure cardioid response and transformerless circuitry, the TLM 193 delivers an exceptionally clean, transparent, and linear sound that faithfully reproduces the source and the room — exactly as you hear it.

The TLM 193 uses Neumann’s advanced K 89 capsule, the same one found in the renowned TLM 170 R. This modern edge-terminated capsule design combines the clarity and transient precision of small-diaphragm microphones with the smoothness and sensitivity of large-diaphragm types. Its cardioid polar pattern remains consistent across all frequencies, ensuring accurate imaging and minimal coloration even off-axis.

With Neumann’s transformerless TLM circuitry, the microphone achieves an impressive dynamic range of 130 dB, extremely low self-noise of just 10 dB-A, and the ability to handle up to 140 dB SPL without distortion. The result is a microphone that excels at capturing both subtle nuances and powerful performances with pristine fidelity.

Ideal for vocals, speech, acoustic and electric instruments, percussion, piano, and orchestral spot miking, the TLM 193 offers versatility and precision in any studio environment. Its dark matte finish and compact size also make it visually unobtrusive for live or video applications.

KEY FEATURES

• Reference-class large-diaphragm condenser microphone with fixed cardioid pattern
• K 89 capsule from the Neumann TLM 170 R for consistent, linear response
• Transformerless design for maximum clarity and wide dynamic range
• Extremely low self-noise (10 dB-A) and high signal-to-noise ratio (84 dB)
• Handles sound pressure levels up to 140 dB without distortion
• Flat frequency and polar response both on- and off-axis
• Excellent for vocals, narration, instruments, and orchestral applications
• Robust metal housing with dark matte finish for low visual profile

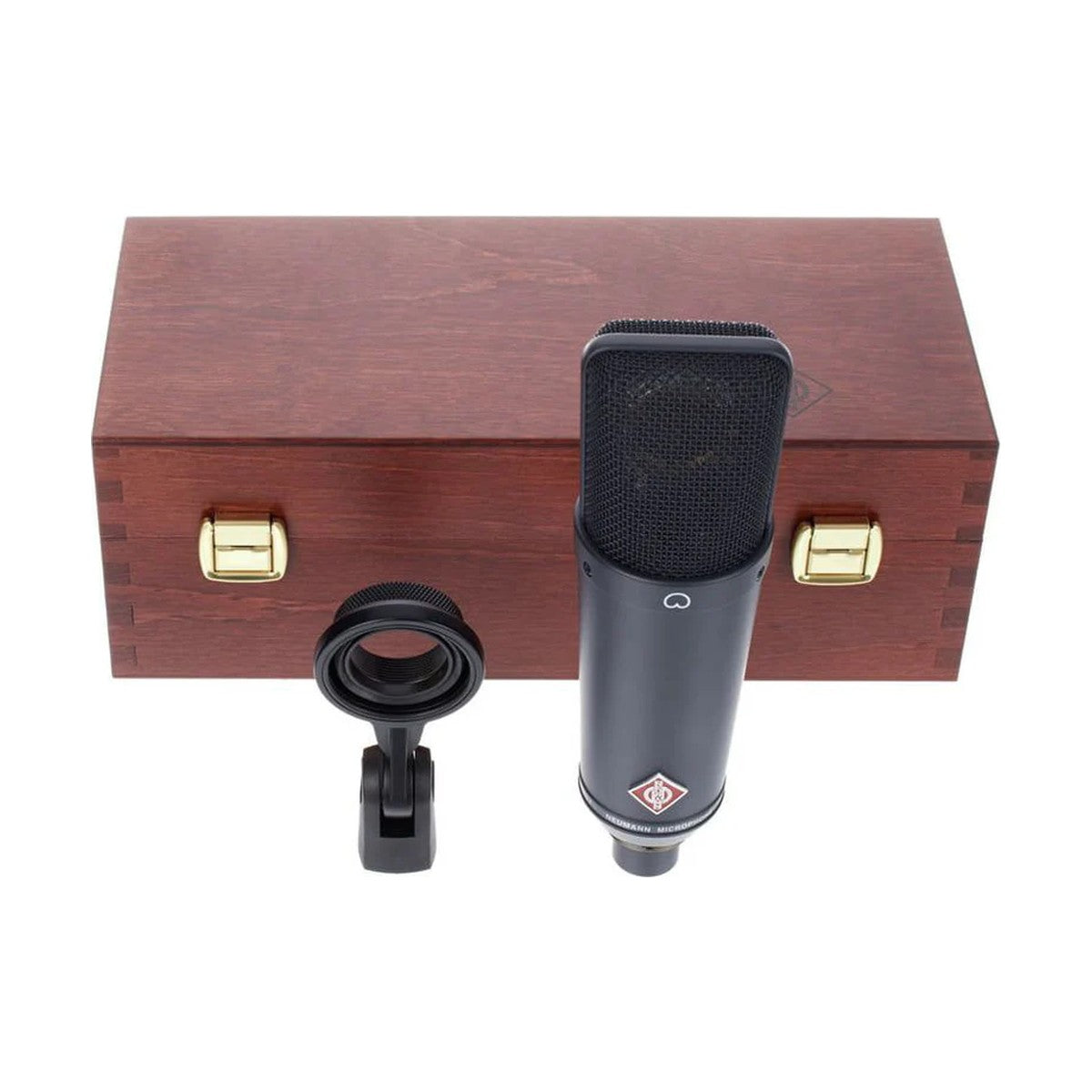

• Includes SG 2 stand mount and wooden case

TECHNICAL SPECIFICATIONS

• Type: Large-diaphragm condenser microphone
• Polar pattern: Cardioid (fixed)
• Frequency response: 20 Hz – 20 kHz
• Sensitivity: 18 mV/Pa
• Max SPL: 140 dB
• Self-noise: 10 dB-A
• Signal-to-noise ratio: 84 dB
• Output impedance: 50 Ω

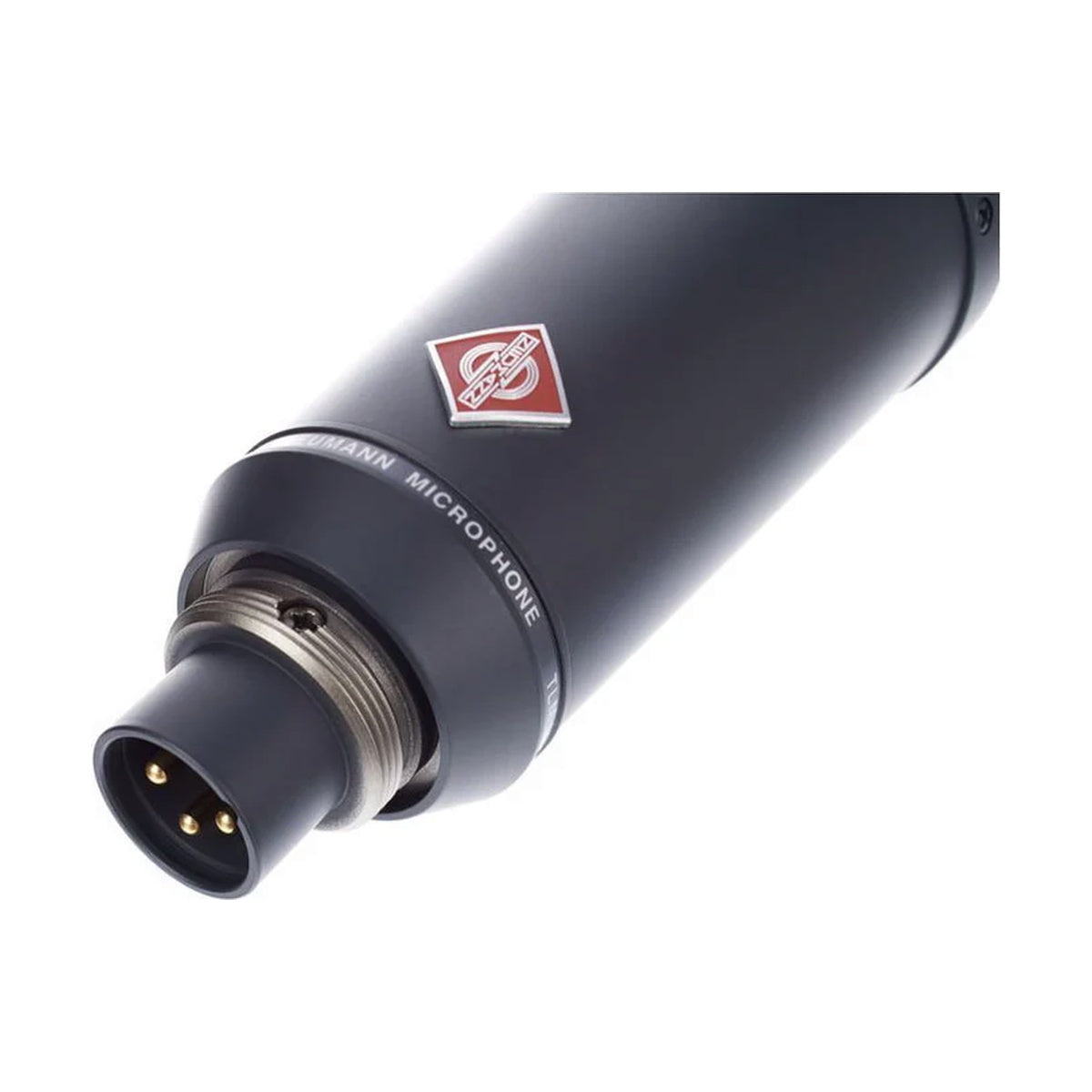

• Connector: XLR-3M
• Power supply: 48 V phantom power
• Dimensions: 175 × 49 mm
• Weight: 480 g
• Included accessories: SG 2 stand mount, wooden case
• Made in: Germany
