Neumann KH 750 DSP D G

Name: Neumann KH 750 DSP D G
Brand: Neumann
SKU: 22227
Price: 1810.73 EUR
Availability: InStock

€1.810,73

Tax included. Shipping calculated at checkout

No reviews

SKU: 22227

Quantity:

In stock

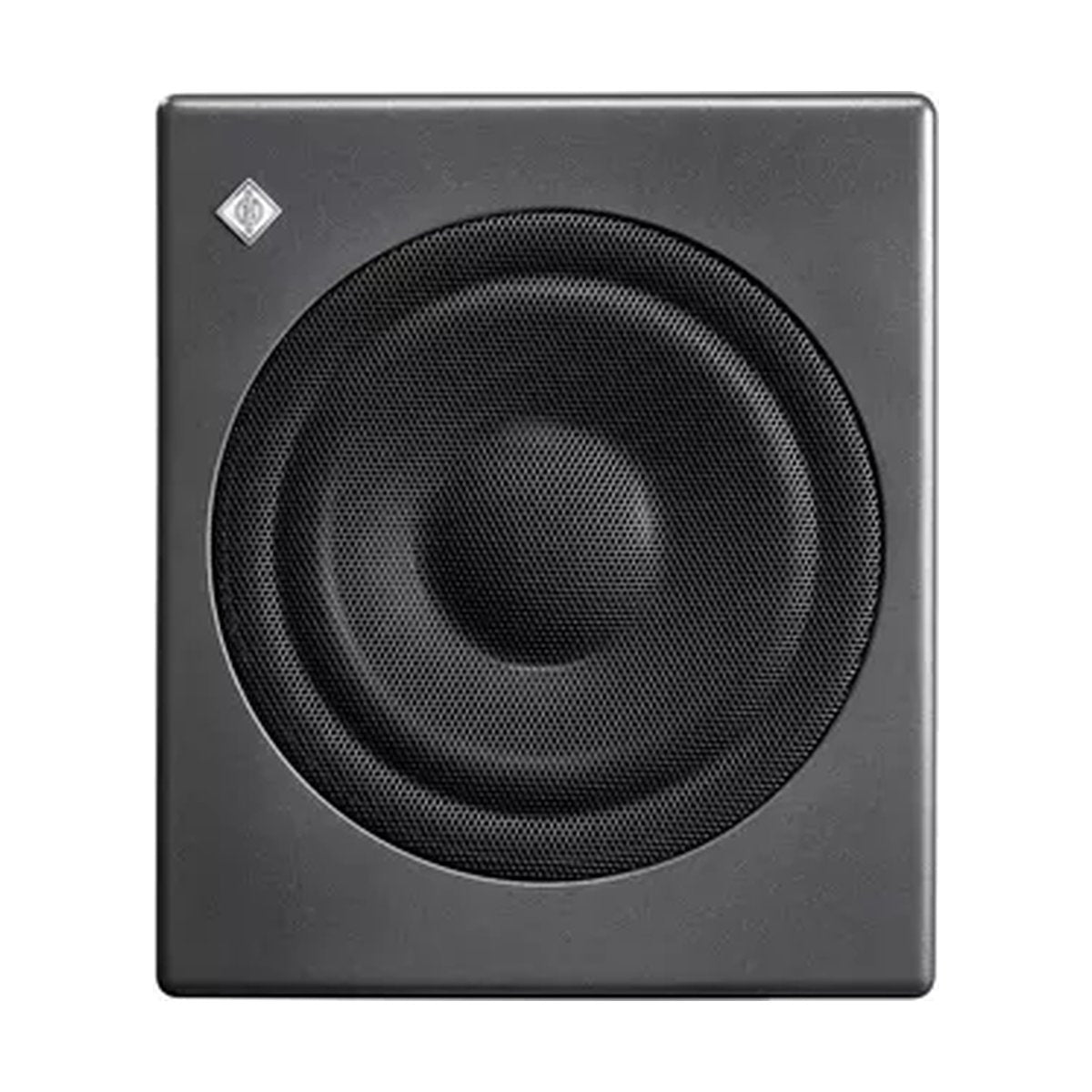

Neumann KH 750 DSP D G – compact DSP-controlled active subwoofer with 10" driver, advanced room correction via MA 1, and flexible analog/digital connectivity including AES3 and S/PDIF.

The Neumann KH 750 DSP is a compact powerhouse designed for smaller studios and precise low-end monitoring. Equipped with a 10” long-throw ELFF™ woofer in a sealed wooden cabinet, this subwoofer delivers deep, tight bass down to 18 Hz with minimal group delay. The integrated DSP engine enables automatic room alignment using Neumann’s MA 1 system, and provides full control over crossover, EQ, delay, and phase – even for non-DSP Neumann monitors connected via analog outputs.

With both analog XLR and digital BNC (AES3/S/PDIF) inputs and outputs, as well as a network port for Neumann.Control and future updates, the KH 750 DSP integrates easily into stereo and multichannel setups. It supports various bass management modes, up to 113 dB SPL (Dolby DARDT), and offers extensive configuration options via software. Compact, powerful, and highly flexible, it’s a reference-grade subwoofer for modern music, broadcast, and post-production studios.

KEY FEATURES

10" long-throw ELFF™ driver with built-in protective grille
Sealed cabinet design for fast transient response
DSP-controlled with MA 1 automatic room alignment
Supports stereo, LFE, and bass-managed setups
Analog (XLR) and digital (BNC AES3/S/PDIF) I/O
Four routing modes: stereo 80 Hz, external, LFE 120 Hz/full range
8-band parametric EQ, shelving filters, delay, phase and level controls
Network controllable via Neumann.Control iPad® app
Universal power supply (100–240V)
Designed for use with KH-series monitors

TECHNICAL SPECIFICATIONS

Frequency Response (±3 dB): 18 Hz – 750 Hz
Free-field Max SPL: 105 dB (50–100 Hz @ 3% THD)
Max SPL (Dolby DARDT): 113 dB
Driver: 265 mm (10") long-throw woofer
Acoustical Principle: Sealed
Amplifier Power: 256 W RMS
Inputs: 2x XLR (balanced), 1x BNC AES3/S/PDIF
Outputs: 2x XLR (balanced), 1x BNC AES3
Digital Resolution: 16–24 bit, up to 192 kHz
Latency: 1.5 ms (A-D-A), 1.2 ms (D-A only)
Network Control: RJ45 (Neumann.Control & MA 1)
Power Supply: 100–240V AC, 50/60Hz
Cabinet Dimensions: 383 x 330 x 383 mm
Weight: 19.5 kg
Included: Power cable, quick start guide, operating manual
