Mackie HR824 MK2 is a two-way active studio monitor with an 8.75" low-frequency driver and a 1" titanium dome tweeter, bi-amplified by the Twin FR Series system: 150 W for the woofer and 100 W for the tweeter. A free-field frequency response of ±1.5 dB from 37 Hz to 20 kHz and THX pm3 certification place the HR824 MK2 in the segment of monitors built for critical mixing and mastering work in both stereo and multichannel configurations. Rather than a bass-reflex port, the design uses a passive radiator — a 6" x 12" mass-loaded elliptical piston — extending bass response to -3 dB at 35 Hz without the group delay distortion typical of ported enclosures at the frequency extremes.
Zero Edge Baffle and waveguide — diffraction eliminated at the source

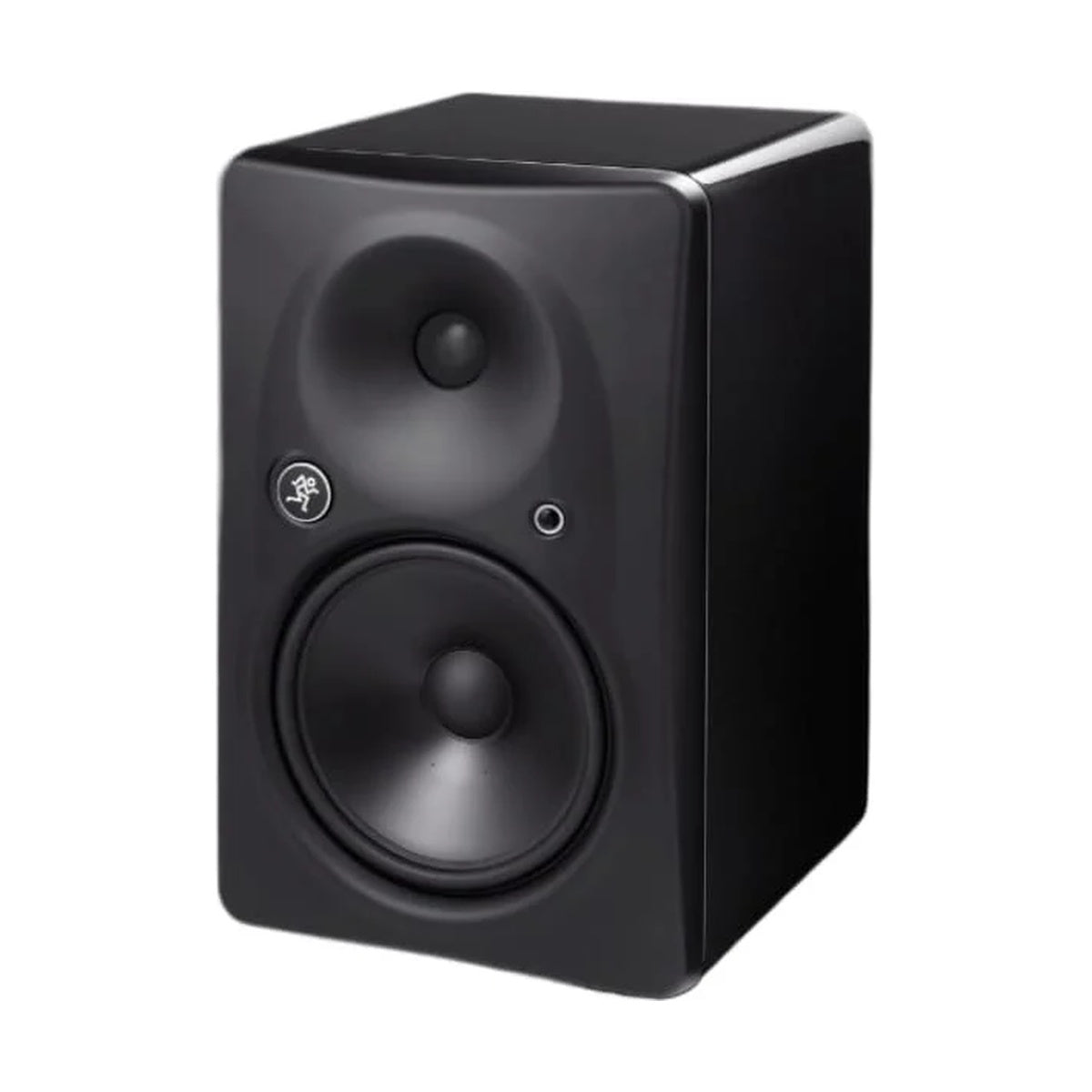

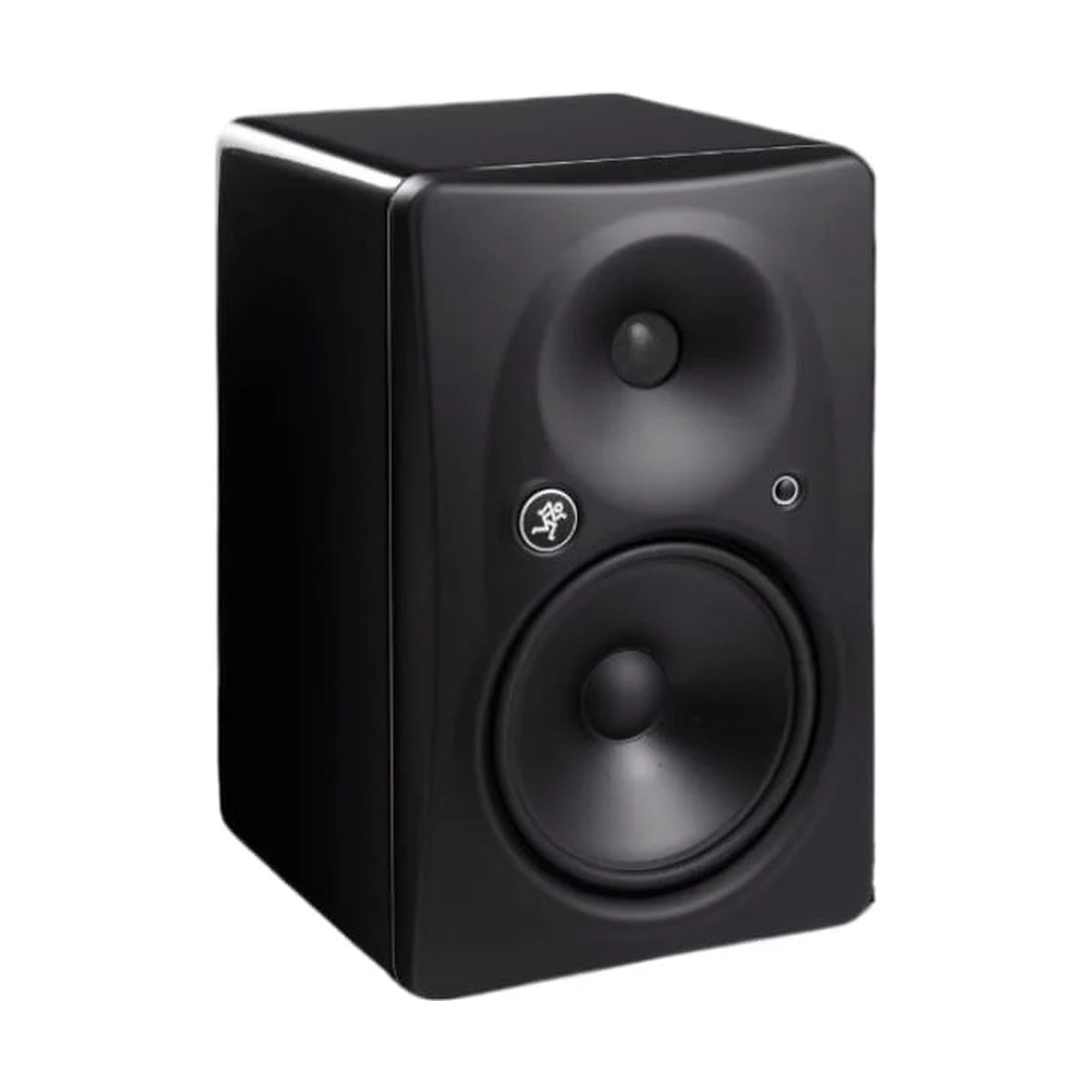

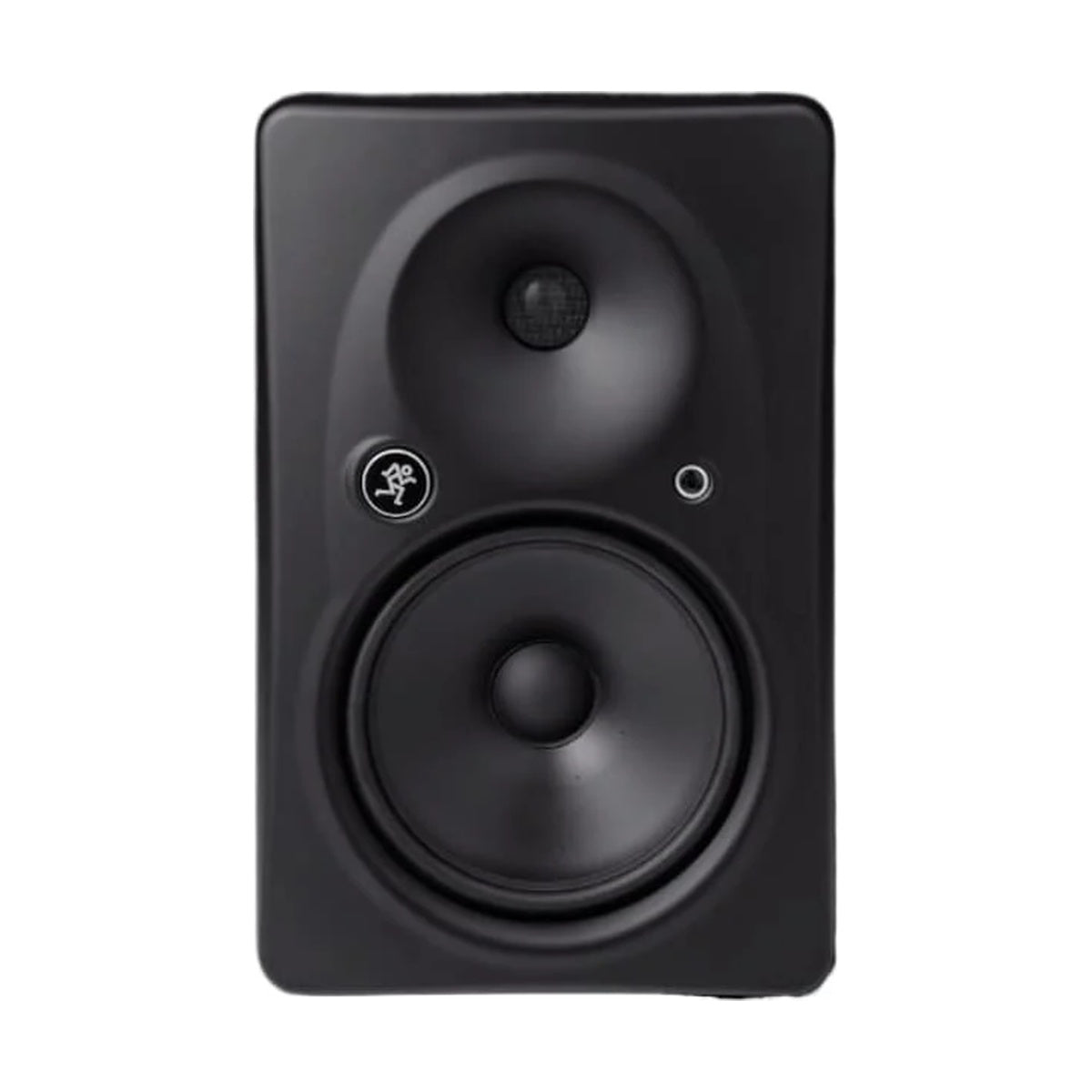

The front baffle is a single-piece aluminum casting with precisely curved edges (Zero Edge Baffle), eliminating the wave diffraction that occurs at sharp MDF corners and generates delayed energy that blurs stereo imaging. The integrated exponential aluminum waveguide controls tweeter dispersion without off-axis SPL loss, maintaining a wide and consistent sweet spot while keeping the on-axis response linear. The active Linkwitz-Riley crossover at 24 dB/octave with a 1,900 Hz crossover point maintains phase coherence between the drivers. Three Acoustic Space Control positions — Full Space (flat), Half Space (-2 dB shelf at 50 Hz) and Quarter Space (-4 dB shelf at 50 Hz) — compensate for boundary reinforcement from walls and corners without external EQ.
Three inputs, LF and HF trim, multi-stage protection

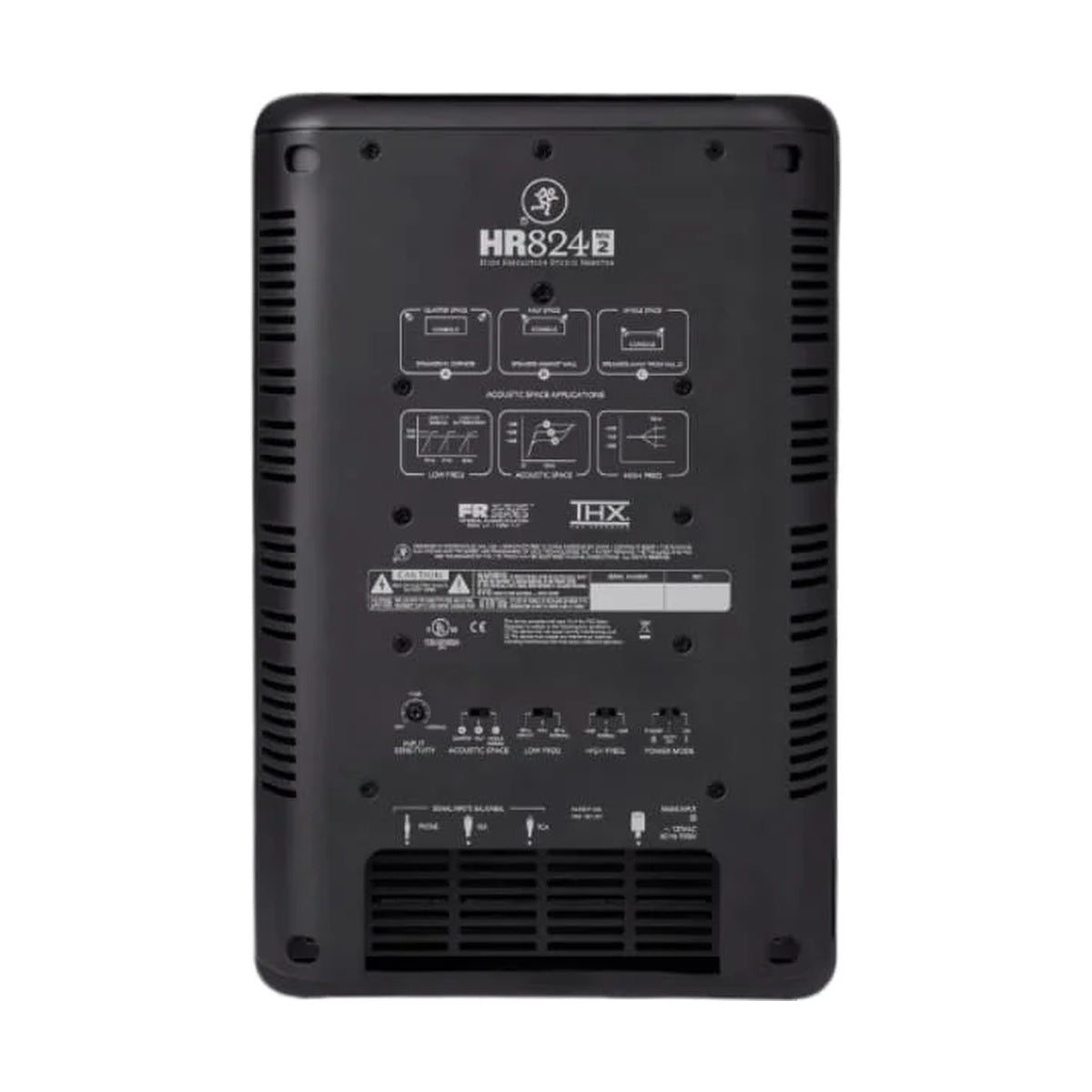

The rear panel provides two balanced inputs (XLR and 1/4" TRS) and one unbalanced RCA, allowing simultaneous connection of an audio interface and a consumer source. Maximum input level is +20 dBu. The three-position LF filter switch sets the high-pass cutoff at 37 Hz (normal), 47 Hz or 80 Hz — the last position prepares the monitor for integration with a subwoofer in a satellite/sub configuration. The HF shelving EQ at ±2 dB at 10 kHz corrects for room brightness or darkness without affecting the midrange. The protection system includes independent LF and HF overload detection, automatic thermal shutdown and a 5-second output mute on power-up.
KEY FEATURES
- 8.75" LF driver — die-cast magnesium frame, 1.6" voice coil, fully shielded ferrite magnet
- 1" titanium dome tweeter, ferro-fluid cooled, neodymium magnet, 1" voice coil
- 6" x 12" mass-loaded elliptical passive radiator — bass extension to -3 dB @ 35 Hz
- Bi-amplification: 150 W (LF) + 100 W (HF), FR Series Class AB
- Free-field frequency response: ±1.5 dB, 37 Hz – 20 kHz
- Active Linkwitz-Riley crossover, 24 dB/oct @ 1,900 Hz
- Zero Edge Baffle — single-piece aluminum casting, diffraction minimised
- Acoustic Space Control: Full / Half / Quarter Space (-4 dB or -2 dB shelf @ 50 Hz)
- LF filter: -3 dB @ 37 Hz / 47 Hz / 80 Hz (switchable)
- HF EQ: ±2 dB @ 10 kHz, shelving
- Inputs: balanced XLR, balanced 1/4" TRS, unbalanced RCA
- Maximum input level: +20 dBu
- THX pm3 certified for surround sound applications
- 19 mm MDF cabinet with piano-black gloss finish
- Weight: 15.7 kg
TECHNICAL SPECIFICATIONS
- Type: active studio monitor, 2-way, bi-amplified
- LF driver: 8.75" (222 mm), 1.6" (40 mm) voice coil, die-cast magnesium frame, 4 Ω nominal, 91 dB SPL sensitivity (2.83 V / 1 m)
- HF driver: 1" (25.4 mm) titanium dome, 1" (25.4 mm) voice coil, neodymium magnet, 6 Ω nominal, 91 dB SPL sensitivity (2.83 V / 1 m), range 1.6 kHz – 22 kHz
- Passive radiator: 6" x 12" (152 x 305 mm) elliptical mass-loaded piston
- LF amplifier: 150 W rated, 350 W burst, THD < 0.035%, S/N > 102 dB, Class AB
- HF amplifier: 100 W rated, 210 W burst, THD < 0.035%, S/N > 102 dB, Class AB
- Crossover: modified Linkwitz-Riley, 24 dB/oct @ 1,900 Hz
- Free-field frequency response: ±1.5 dB, 37 Hz – 20 kHz
- Frequency range: -3 dB @ 35 Hz (low) / -3 dB @ 22 kHz (high)
- Maximum SPL (pair): 120 dB @ 1 m
- Reference SPL: 100 dB @ 1 m (-7.5 dBu balanced input)
- Residual noise: < 8 dB SPL @ 1 m (max gain, 20 Hz – 20 kHz)
- Input impedance: 20 kΩ balanced / 10 kΩ unbalanced
- Maximum input level: +20 dBu
- Acoustic Space Control: A (-4 dB @ 50 Hz shelf) / B (-2 dB @ 50 Hz shelf) / C (flat)
- LF filter: -3 dB @ 37 Hz (2nd-order transitional HPF) / 47 Hz (4th-order Chebyshev) / 80 Hz (4th-order Butterworth)
- HF EQ: ±2 dB @ 10 kHz shelving
- Inputs: XLR balanced, 1/4" TRS balanced, RCA unbalanced
- Power consumption: 8 W (standby) / 18 W (idle) / 135 W (musical program)
- Power supply: 120 V AC 60 Hz / 240 V AC 50 Hz
- Certification: THX pm3
- Cabinet: 19 mm MDF, piano-black gloss finish
- Dimensions: 42.5 cm (H) x 27.3 cm (W) x 35.1 cm (D)
- Weight: 15.7 kg (34.6 lbs)
