Lynx Studio AES16e

Lynx Studio

Lynx Studio AES16e

€807,80 €939,78
Save €131,98

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 44500
Quantity:
Pickup available at Warsaw Showroom

Lynx Studio AES16e

Warsaw Showroom

Pickup available, usually ready in 24 hours

Nowogrodzka 6
102
00-513 Warszawa
Poland

+48573580840

Contact

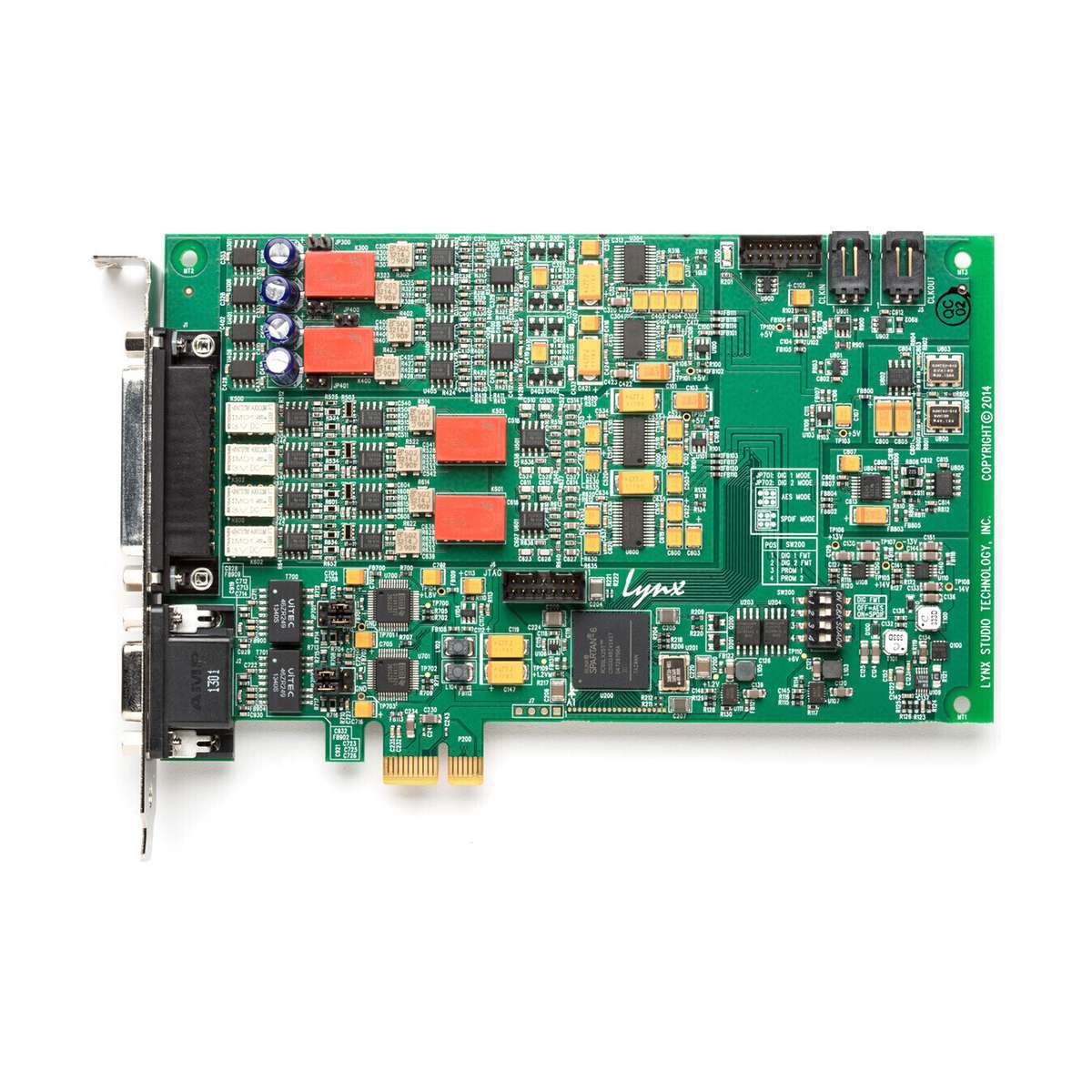

Lynx Studio AES16e is an audio interface with 16 channels of AES/EBU at 192 kHz.

AES16e offers 16 channels of AES/EBU inputs and outputs at a frequency of 192 kHz. In addition to the base model, the AES16e-SRC version includes 16 channels of sample rate converters.

AES16e advances the capabilities of our industry classic AES16, adding new functionality and the benefits of the PCI Express interface. The PCI Express architecture and its high bandwidth eliminate bottlenecks, providing maximum performance for high-end computer audio.

The AES16e PCI Express x1 card provides 16 channels of 24-bit digital AES/EBU audio at 192 kHz in single- and dual-wire AES modes. Designed for integration with digital consoles, multichannel ADC/DACs, hard disk recorders, audio workstations, and other equipment, the AES16e is compatible with Windows and macOS.

Key features:
- 8 stereo inputs and 8 stereo outputs (16 mono), AES/EBU, 24-bit, single/dual-wire, transformer-coupled
- Optional 16 channels of sample rate conversion with 144 dB dynamic range and -140 dB THD+N at up to 16:1 conversion
- Built-in digital mixer
- Optional AES50 interface
- Computer-based settings for clock frequency, synchronization, routing, and buffers
- Multichannel support for 5.1 and 7.1 formats
- Signature SynchroLock jitter suppression for external clock signals
- Support for ASIO, WDM (Windows), and CoreAudio (macOS)
