Heritage Audio

Heritage Audio Super 8

Sale price€4.447,80
SPECIAL ORDER

Tax included. Shipping calculated at checkout

SKU: 47504
Quantity:

This item is available on a custom order basis only. Please contact us for more details. Contact us

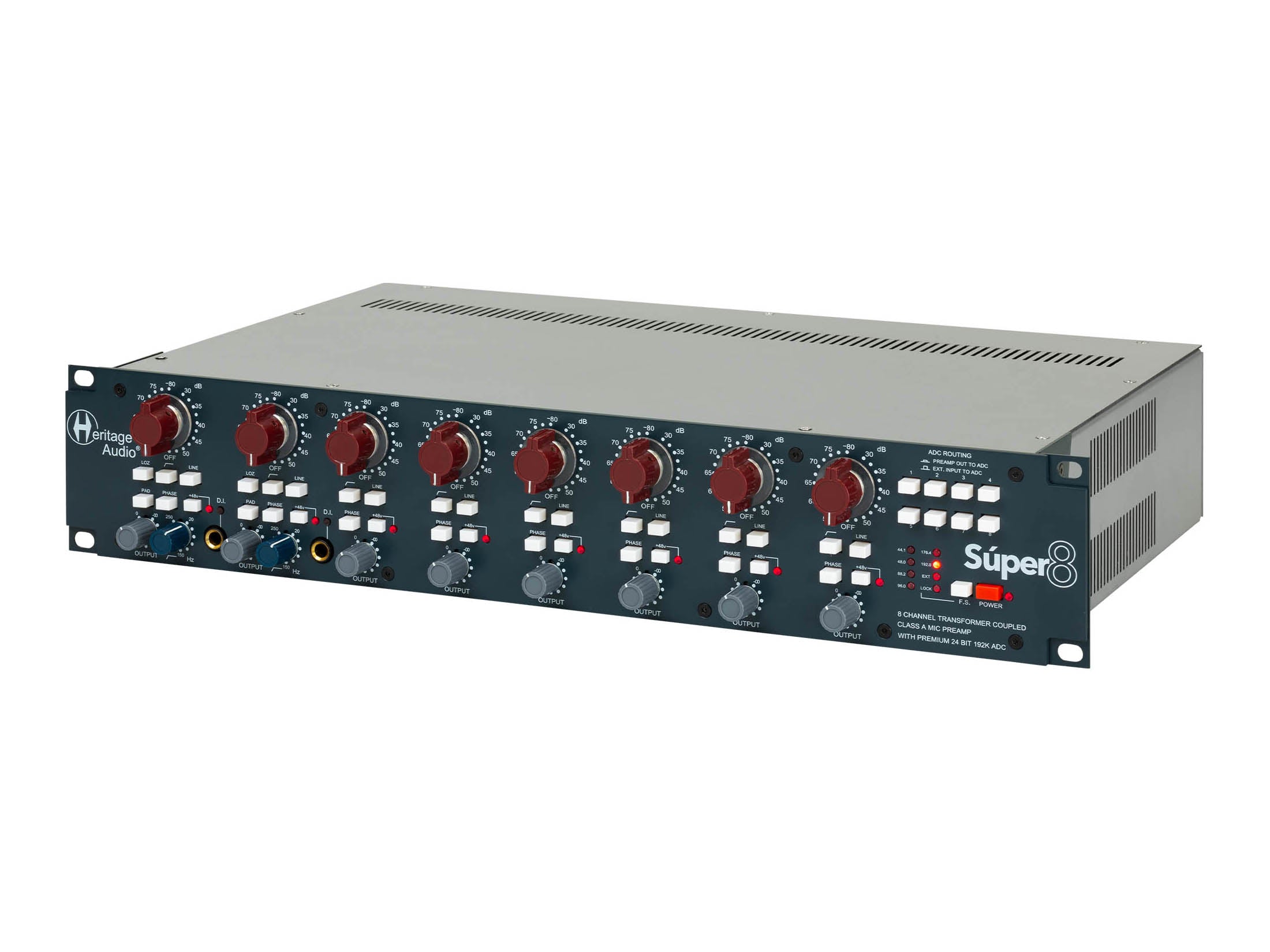

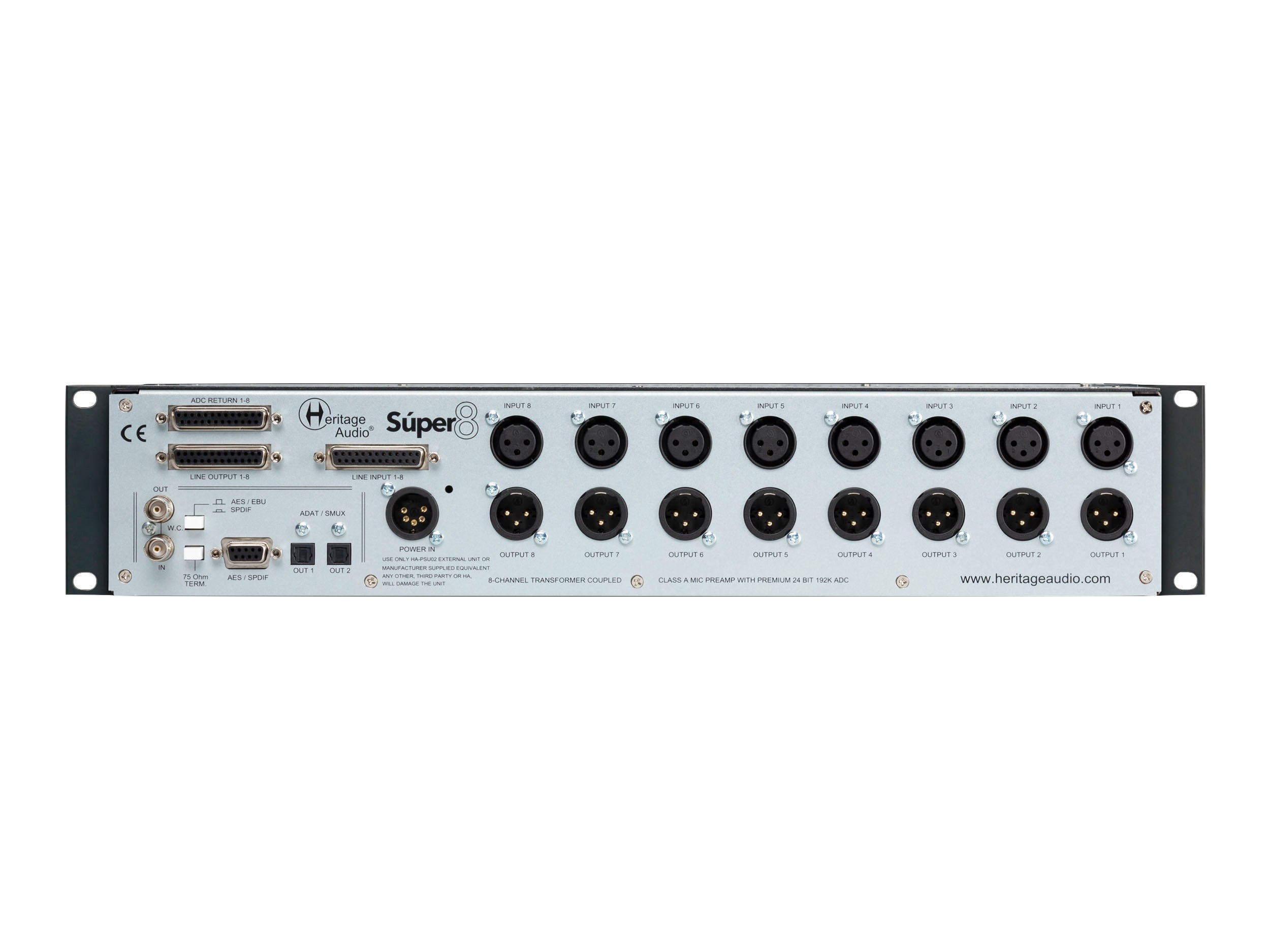

Heritage Audio Super 8 is an 8 Channel Transformer Class A MIC Preamp & Premium ADC, with 8 x XLR Inputs, 8 x XLR Outputs, 3 x DB25 (D-SUB) connectors, ADAT/SMUX, AES/SPDIF, World Clock In/Out, rackmountable.

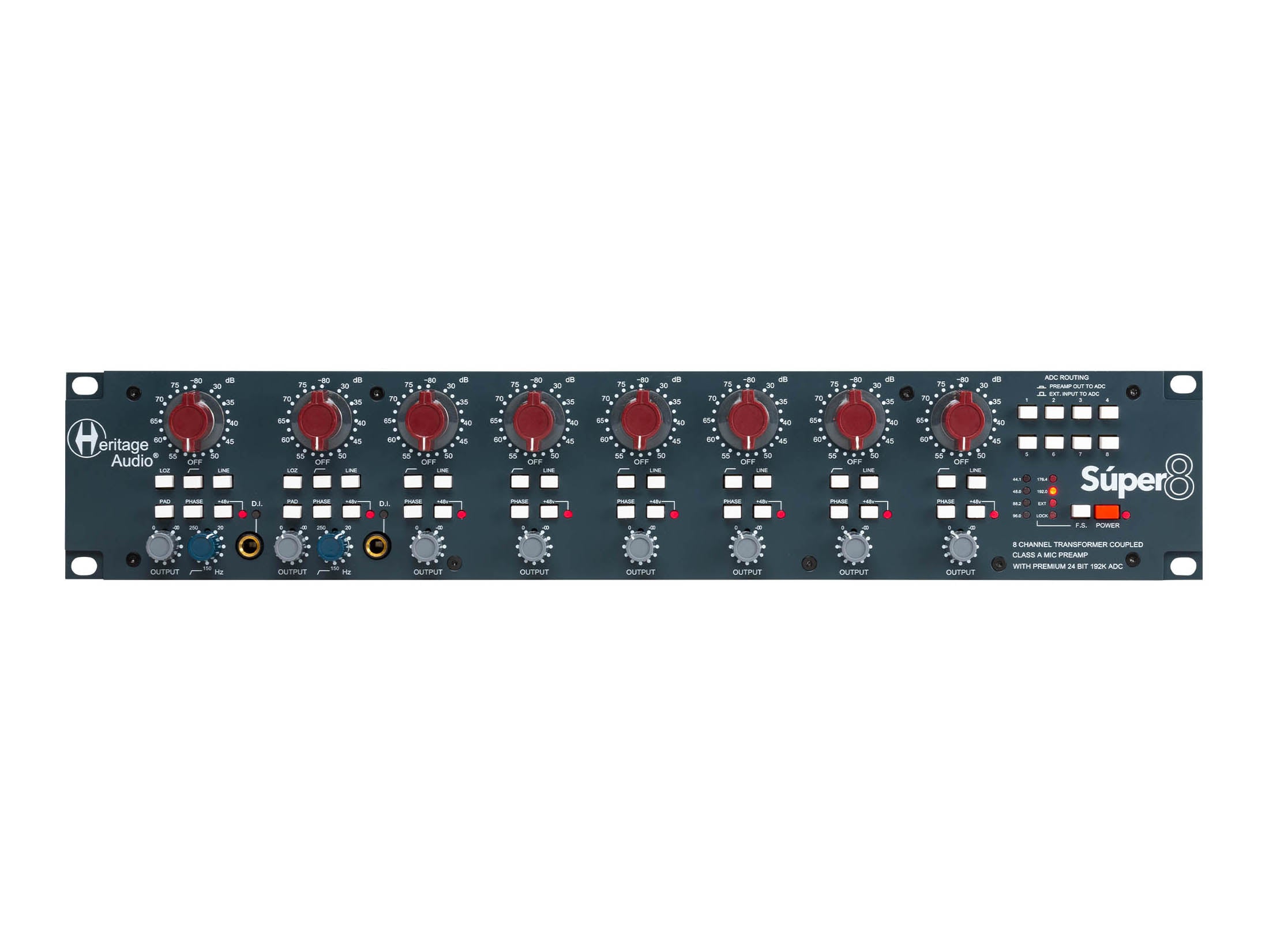

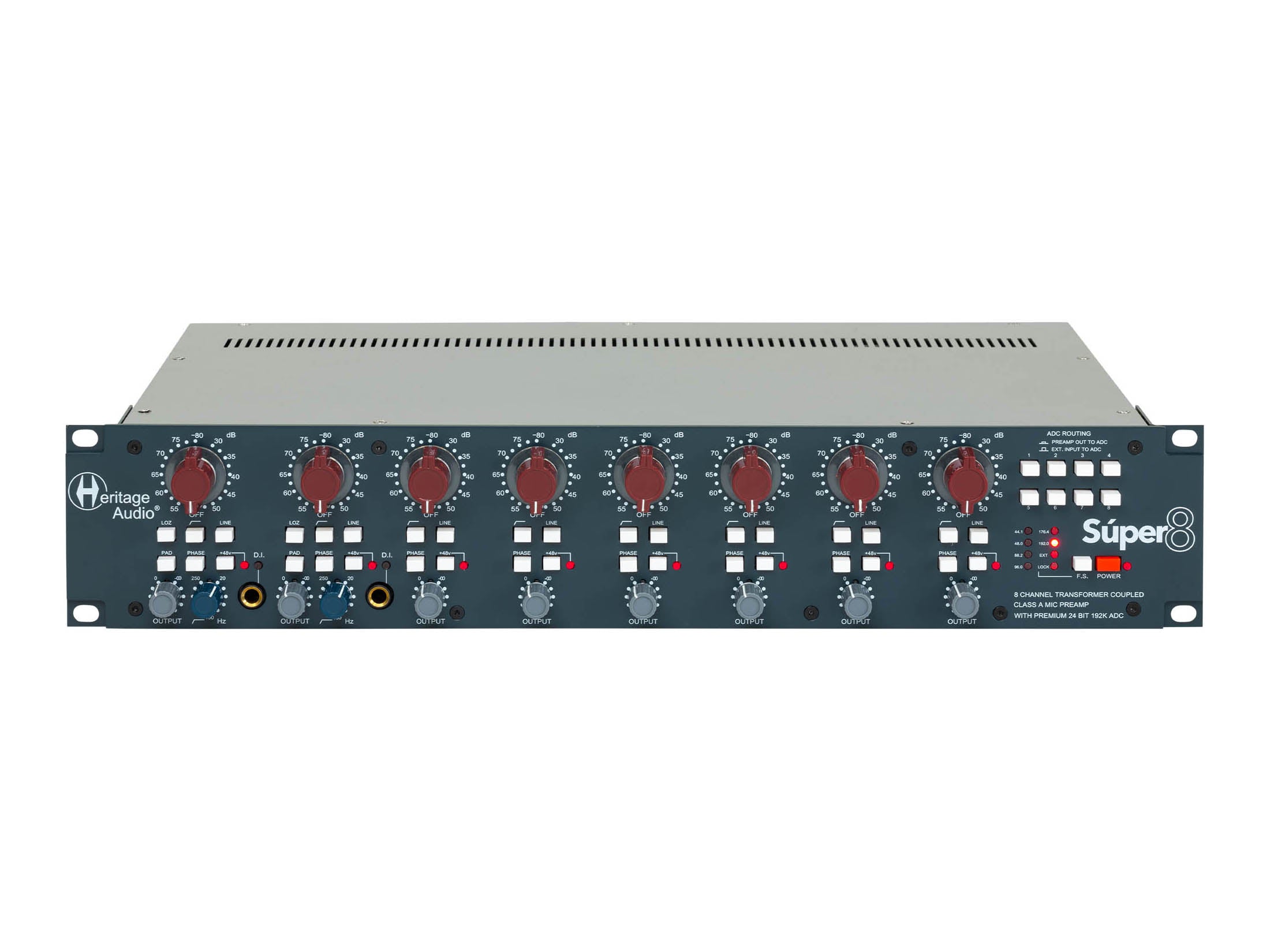

The microphone preamp Super 8 is equipped with eight microphone/line/instrument preamps in the style of 73 and a 24-bit/192 kHz converter in a 2U rackmount. All 8 channels have individual buttons and switches for 48V, LINE, PHASE, and LoCut (-3 dB at 80 Hz). The first 3 channels also feature LO-Z buttons to change the input impedance from 1200 Ω to 300 Ω, PAD buttons to reduce the input sensitivity by -20 dB, JFET D.I. circuits, and LoCut filters.

Super 8 Features

  • Exclusive Carnhill design transformers
  • Premium 8-channel 24-bit 192 kHz converter
  • Digital output to ADAT/SMUX, SPDIF, and AES/EBU
  • Switchable path for converters on each channel, either directly from the preamp or from an external source.

Super 8 Specifications

ANALOG I/O
  • Microphone input impedance only channels 1 & 2: High=1200 Ω minimum; Low=300 Ω minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.
  • Microphone input impedance only channels 3-8: High=1200 Ω minimum.
  • Line input impedance: 10 kΩ bridging, transformer balanced and floating.
  • Output impedance: Less than 75 Ω, transformer balanced and floating, to drive a load of 600 Ω.
  • D.I. input impedance: Greater than 2 MΩ, unbalanced (Only Channels 1 & 2).
  • Maximum output: Greater than +26.5 dBu into 600 Ω (internally terminated).
  • THD: Less than 0.025 % at 1 kHz, Less than 0.05 % at 100 Hz.
  • Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).
  • Maximum Gain: Slightly greater than 80 dB.
  • Equivalent Input Noise: Less than -125 dBu.
  • Output stage noise: Less than -100 dBu.
S/PDIF
  • Connector Type: 9 PIN Breakout Cable (RCA).
  • Format: IEC 958.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.
AES/EBU
  • Connector Type: 9 PIN Breakout Cable (XLR).
  • Format: IEC 60958.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.
ADAT
  • Connector Type: Optical TOSLINK JIS F05.
  • Format: ADAT Digital Lightpipe with S/MUX.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.
  • Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 – 8.
  • Channel Assignments @ 88.2 kHz, 96 kHz: Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8.
  • Channel Assignments @ 176.4 kHz, 192 kHz: Port 1 = Channels 1 – 2, Port 2 = Channels 3 – 4.
WORD CLOCK
  • Connector Type: BNC.
  • Word Clock Input Termination: 75 Ω, switchable.
DIMENSIONS/WEIGHT
  • W x H x L: 280 mm x 88 mm (2 Rack units) x 482 mm.
  • Weight: 9.450 kg.
