Heritage Audio OST-10 v2.0

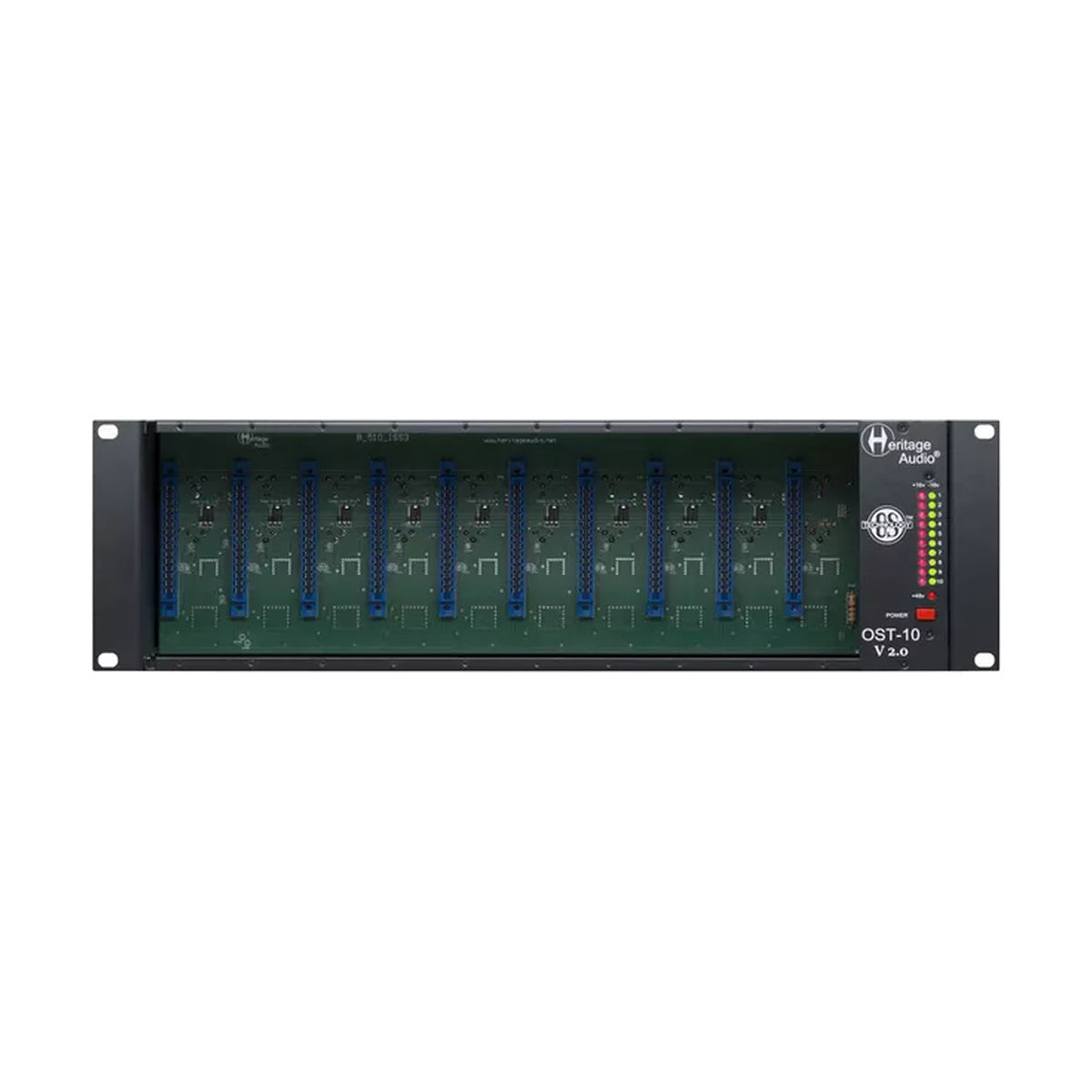

Heritage Audio OST-10 v2.0 – 10-slot 500 Series enclosure for modules, including double-wide and power-hungry Class-A/vacuum tube designs. Features On Slot Technology for per-slot power regulation, isolation, and filtering to reduce interference and improve performance, especially mic preamps.

Link feature connects channels without cables. Gold-plated XLR/DB25 I/O. Handbuilt in Spain with heavy-gauge steel chassis.

MAIN FEATURES

• On Slot Technology for isolation
• Link button per channel
• LED power indicators (+16V red, -16V green)
• Compatible with all 500 Series modules
• 3U rackmount

TECHNICAL SPECIFICATIONS

• Slots: 10 (double-wide compatible)
• Power: 1.8A per rail or 400mA per slot; +48V phantom 140mA max
• Voltage: 100-240V AC

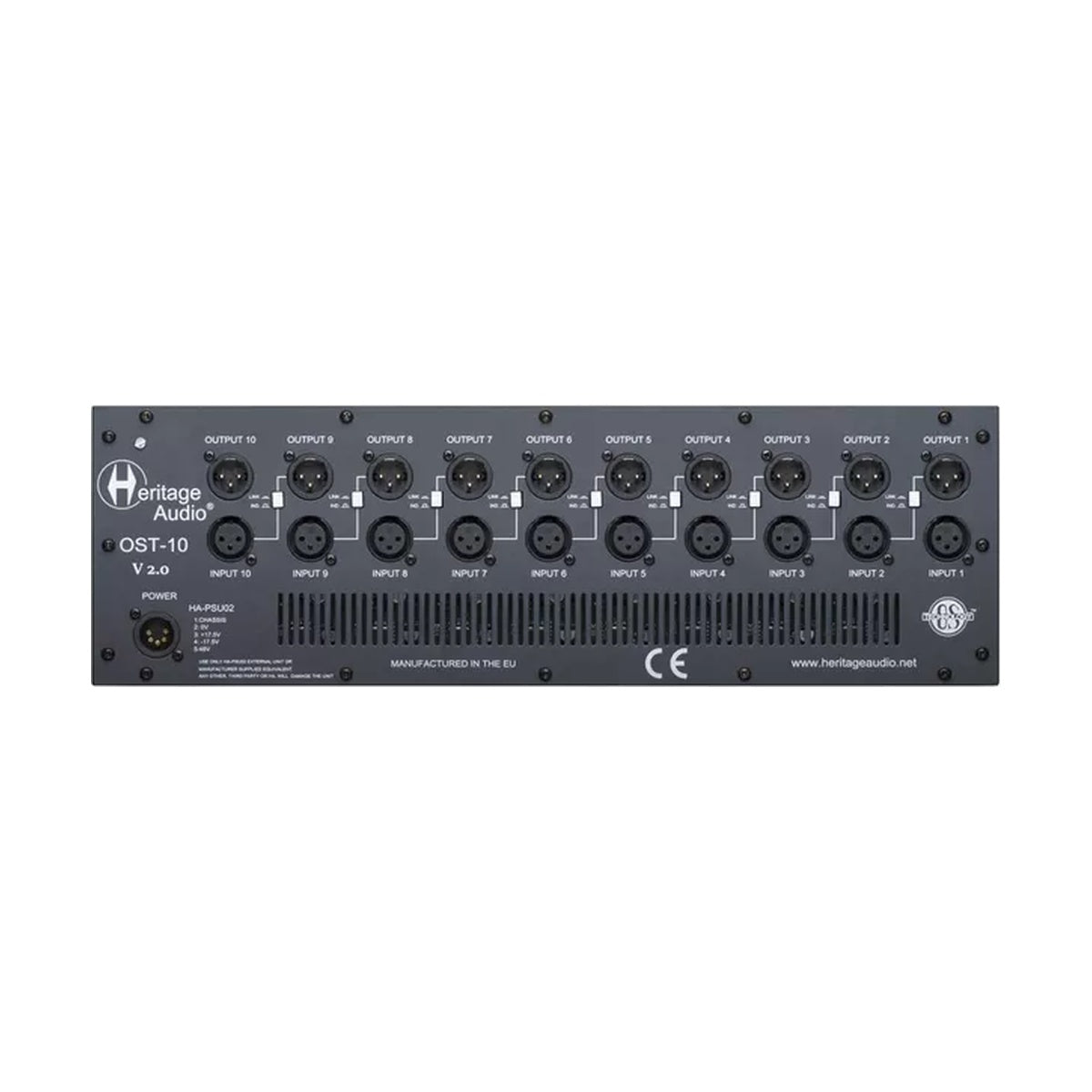

• I/O: Gold-plated XLR/DB25 balanced
• Dimensions (W x H x D): 19 x 5.25 x 7.9 in (approx.)
• Weight: Not specified
• Included: OST-10 v2.0 enclosure
• Product Code: OST-10 v2.0
