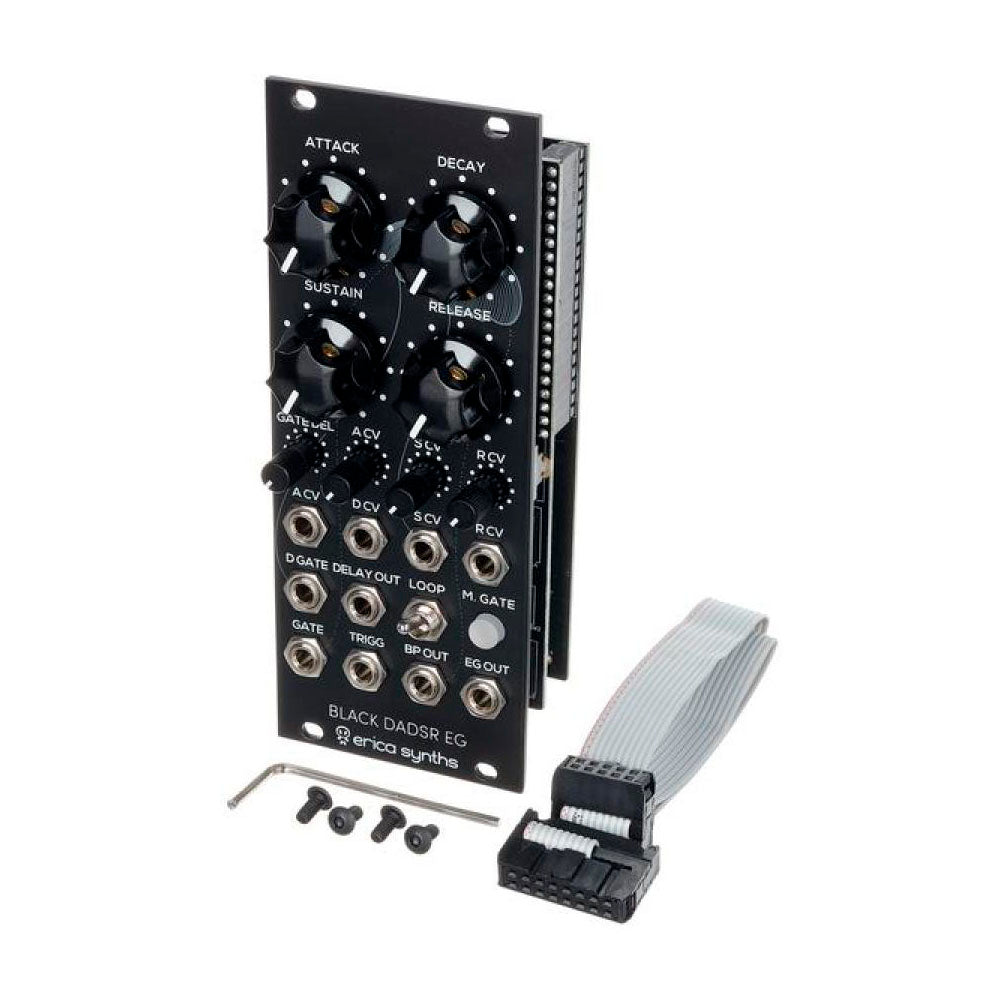

Erica Synths Black DADSR EG

Erica Synths Black DADSR EG is an analog envelope generator module. Each parameter (Delay, Attack, Decay, Sustain, Release) is controlled via CV. A Gate Delay is provided for trigger delay. The module features unipolar and bipolar outputs, allowing it to be integrated into various Eurorack systems. Additionally, a manual Gate button and a switchable Loop mode are available for creating repeating envelopes.

Black DADSR EG Features

• Re-triggerable exponential DADSR envelope generator
• CV control over each stage
• Gate delay with a manually controlled delay time
• CV attenuators
• Looping function
• Manual gate button

Black DADSR EG Specifications

• Attack time (with max CV): 0…2.5” (4.4”)
• Decay time (with max CV): 0…5” (12”)
• Sustain level: 0…10V
• Release time (with max CV): 0…4.5” (10”)
• Gate delay time: 0.7”
• CV level (full sweep): -5V - +5V
• Panel width: 10HP
• Module depth: 30mm
• Power consumption: 42mA@+12V, 58mA@-12V
