Echo Fix EF-X3 Chorus Echo Black

Echo Fix EF-X3 Chorus Echo Black is a table-top chorus echo with an analog BBD chorus and spring reverb, designed for rack mounting.

EF-X3 is the latest table-top chorus echo model from strong>Echo Fix. Made in Australia from high-quality materials, it represents an evolution of the EF-X2 model. The unit is entirely analog, including the BBD chorus and spring reverb, resulting in a warm and rich sound. A unique feature of the EF-X3 is the individual outputs for each playback head, enabling the creation of a classic stereo "ping-pong" delay effect from a mono source by adjusting the panning on an external mixer or DAW. A built-in automatic tape stop circuit extends tape life, ensuring long-term, trouble-free operation.

The EF-X3 is more than just an effect; it's an instrument capable of not only enhancing sound but also creating mesmerizing self-oscillating sounds, completely changing your perception of music creation.

Echo Fix EF-X3 Chorus Echo Black Features

• Limited edition
• Direct playback head outputs allowing for external panning for stereo ping-pong delays from a mono source
• Analog BBD Chorus with rate and depth controls
• Analog Spring Reverb
• Independent SOS switching for longer delay time (1.2 seconds)
• Direct WET output at rear for Reverb/Chorus
• Balanced Input and Output at rear
• Auto tape stop when no audio signal present to extend tape and motor life (There is a switch at the rear to disable this feature).
• CV Control for Motor Speed and Feedback level (0-5v) via compatible Expression Pedals
• Bass and Treble Controls (Echo Signal)
• Vintage Guitar/Line FET Preamp (Front Panel)
• High/Low Output level switch (Front Panel Output)
• Four echo playback heads (including SOS head)
• Motor ON/OFF Switch for tape slow down effect
• Mute the reverb, echo and chorus signal via remote foot switches
• 2 Years Warranty for all pre-sale purchases with peace of mind that this is made by a company that has been operating for nearly 15 years specializing in tape echo repair and spare parts
• Removable Lid
• High-quality scratch-resistant front panel
• 2 Tape loops supplied with each unit

Echo Fix EF-X3 Chorus Echo Black Specifications

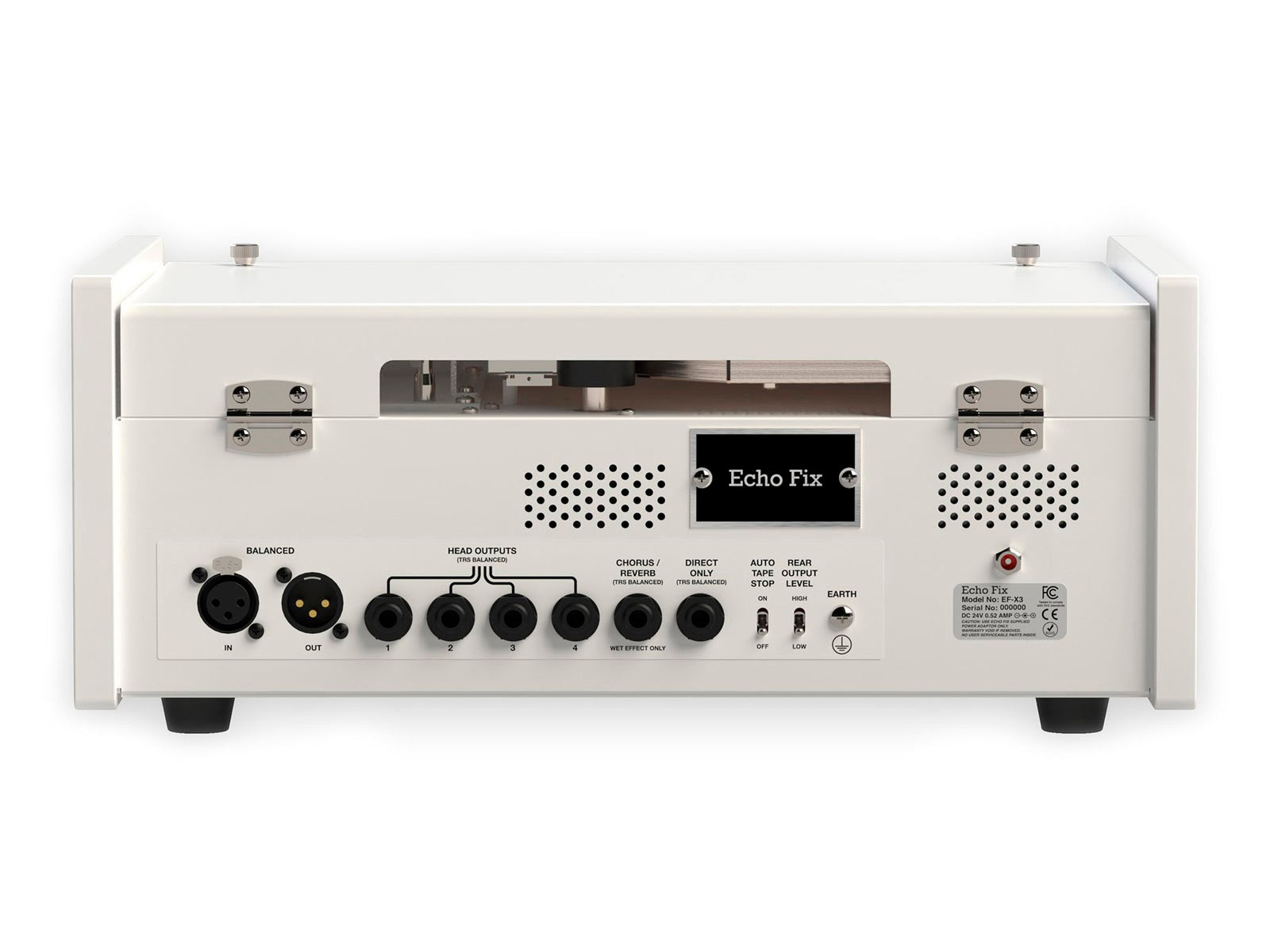

• 1 x XLR Balanced Input
• 1 x XLR Balanced Output
• 1 x 1/4" TRS Guitar / Line Input
• 1 x 1/4" TRS CV Remote Speed
• 1 x 1/4" TRS CV Remote Feedback
• 1 x 1/4" TRS CV Chorus Cancel
• 1 x 1/4" TRS CV Echo / Reverb Cancel
• 1 x 1/4" TRS Output
• 1 x 1/4" TRS CV Remote Feedback
• 4 x 1/4" Balanced TRS Head Output
• 1 x 1/4" Balanced TRS
• 100 - 240v power supply (no step-down or other transformers required)
• Dimensions (W x D x H): 420 x 290 x 185 mm
• Weight: 12 kg
• Colour: White
• Includes 2 tape loops, PSU
