DiGiGrid X-DG-M
DiGiGrid X-DG-M
DiGiGrid X-DG-M
DiGiGrid X-DG-M
DiGiGrid X-DG-M

DiGiGrid

DiGiGrid X-DG-M

€524,88

Tax included. Shipping calculated at checkout

No reviews
No reviews
SKU: 46645
Quantity:
In stock
Pickup available at Warsaw Showroom

DiGiGrid X-DG-M

Warsaw Showroom

Pickup available, usually ready in 24 hours

Nowogrodzka 6
102
00-513 Warszawa
Poland

+48573580840

Contact

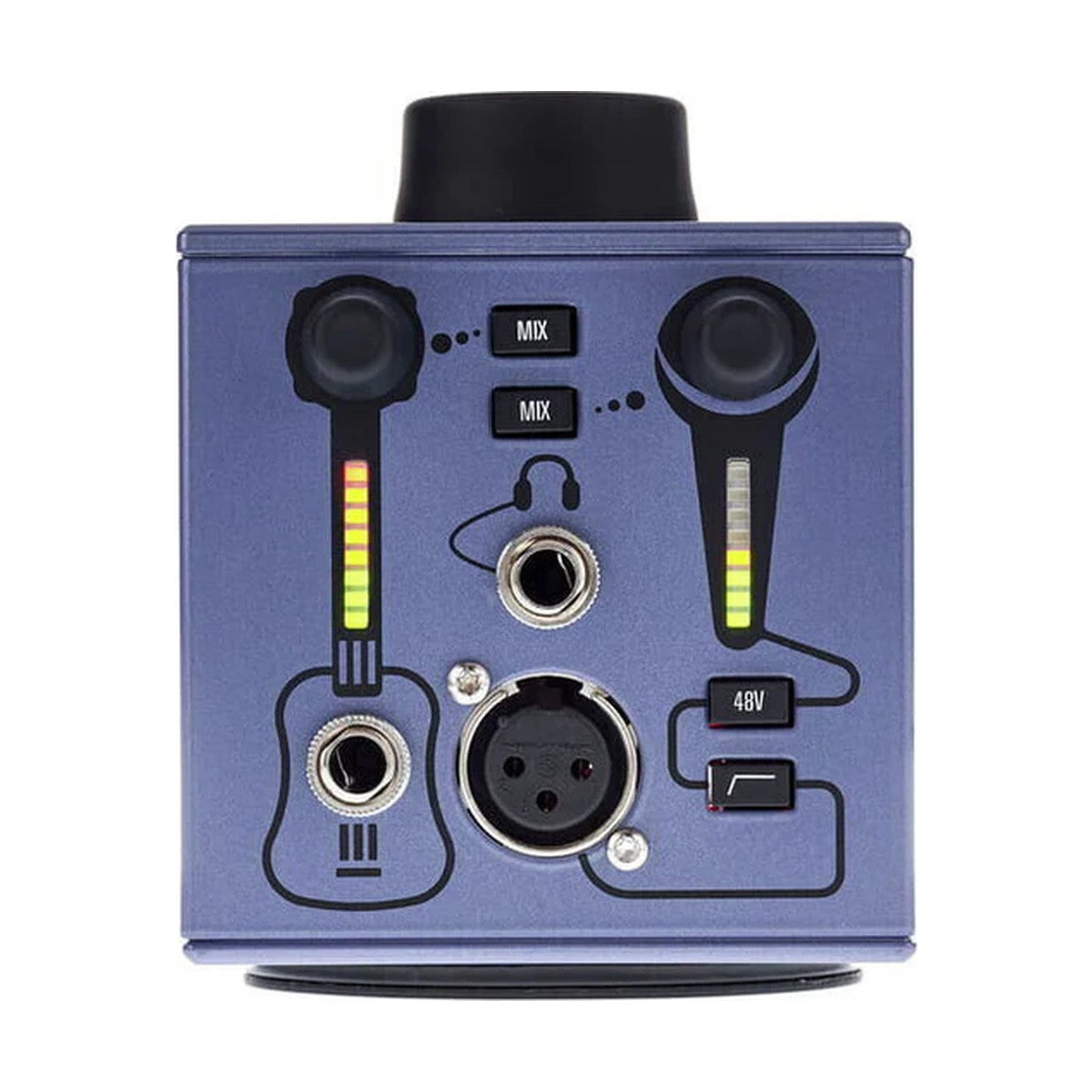

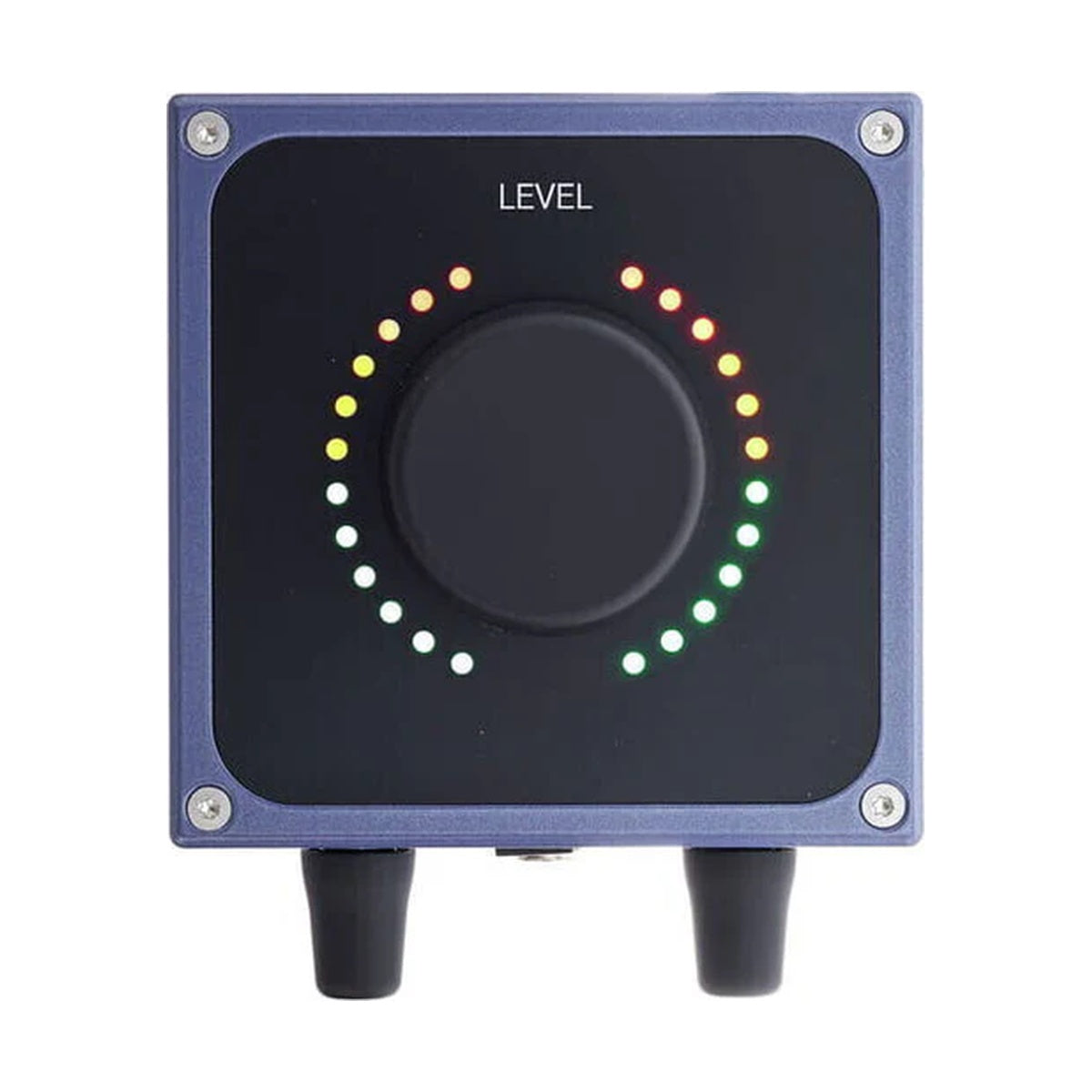

DiGiGrid X-DG-M is a compact Ethernet audio interface with two inputs and two outputs, designed for both home and professional studio use. Featuring high-quality 24-bit / 96 kHz converters and a transparent mic preamp, it delivers professional-grade audio recording. The XLR input supports mic/line signals, while the 1/4" input is optimized for instrument or line-level sources.

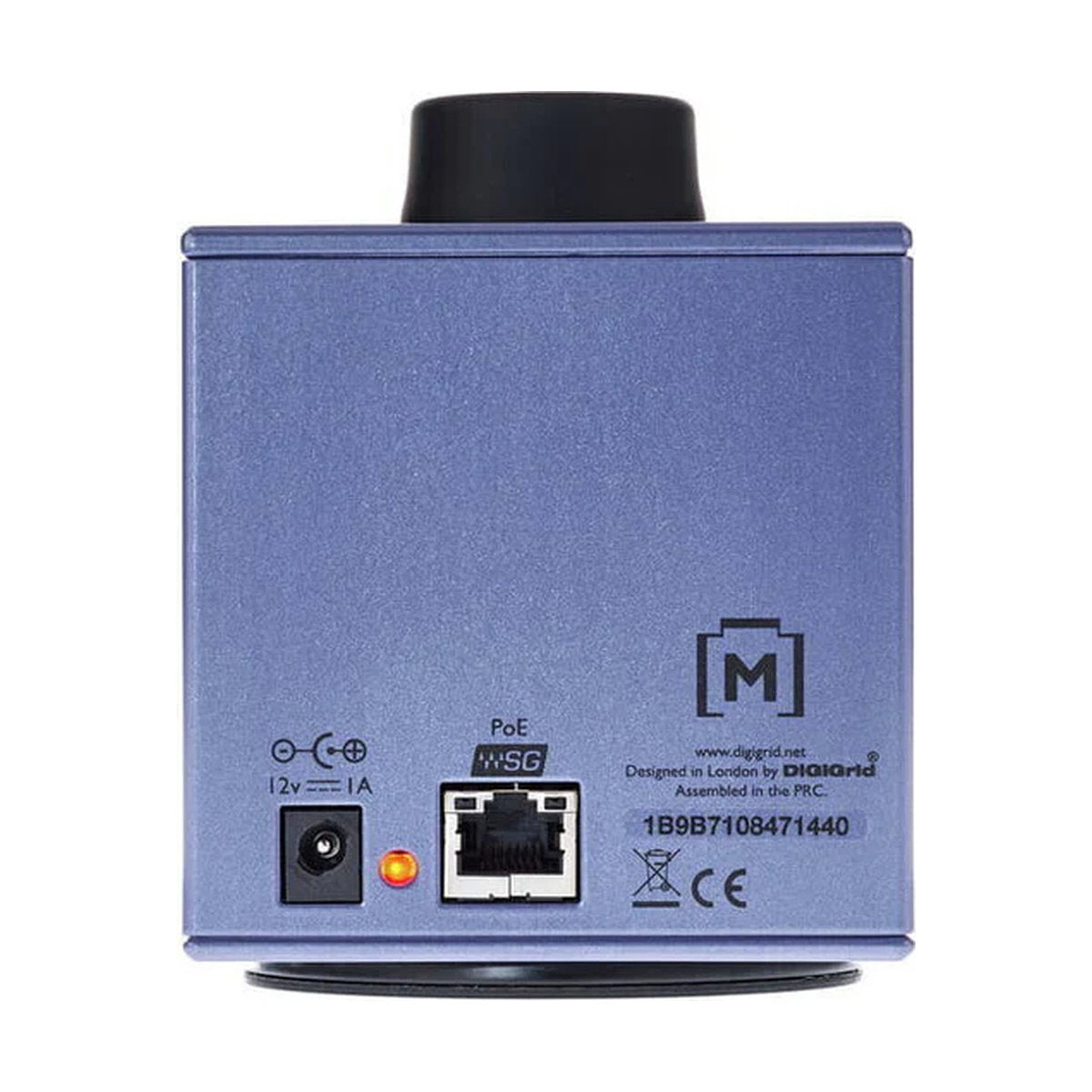

The interface integrates seamlessly with any DiGiGrid setup via a single Cat 5e / Cat 6 SoundGrid Ethernet connection. It can function as a standalone device or as part of a larger SoundGrid network. A 12 V locking AC power adapter is included, and Power over Ethernet (PoE) is supported for maximum setup flexibility. An optional adapter plate (sold separately) allows mounting to a microphone stand.

KEY FEATURES

  • Professional audio quality up to 24-bit / 96 kHz
  • 2 inputs and 2 outputs with mic preamp and Hi-Z input
  • XLR mic/line input and 1/4" Hi-Z / line input
  • 1/4" TRS headphone output with high output power
  • SoundGrid Ethernet connectivity via Cat 5e / Cat 6 cable
  • Powered via included 12 V adapter or Power over Ethernet (PoE)
  • Built-in 100 Hz high-pass filter and 48 V phantom power
  • Optional mount plate for mic stand installation
  • Operates standalone or as part of a DiGiGrid network

TECHNICAL SPECIFICATIONS

  • Type: Ethernet audio interface (SoundGrid)
  • Resolution / Sample Rate: up to 24-bit / 96 kHz
  • Audio Inputs: 1 x XLR (mic/line), 1 x 1/4” (Hi-Z / line)
  • Audio Outputs: 1 x 1/4” TRS (headphones)
  • Input Impedance: 1.5 kΩ (mic), 1 MΩ / 10 kΩ (Hi-Z / line)
  • Input Gain Range: 0 – +70 dB (mic), +6 – +30 dB (Hi-Z / line)
  • Frequency Response: <10 Hz – 100 kHz (–3 dB)
  • THD: 0.005% at 40 dB gain (mic/line)
  • Noise EIN: typ. –127 dB (at 70 dB gain)
  • Noise Floor: –82 dBu (min gain) / –73 dBu (max gain) (Hi-Z / line)
  • High-Pass Filter: 100 Hz, 18 dB/oct (–3 dB) (mic)
  • Phantom Power: 48 V
  • Headphone Output Gain Range: ∞ – +10 dB
  • Max Output Level: 2.3 V / 16 Ω, 3.7 V / 32 Ω, 6.0 V / 100 Ω, 7.5 V / 200 Ω, 8.8 V / 600 Ω
  • Data I/O: 1 x Ethernet (RJ45)
  • Dimensions: 90 x 90 x 113.5 mm
  • Weight: 0.7 kg
