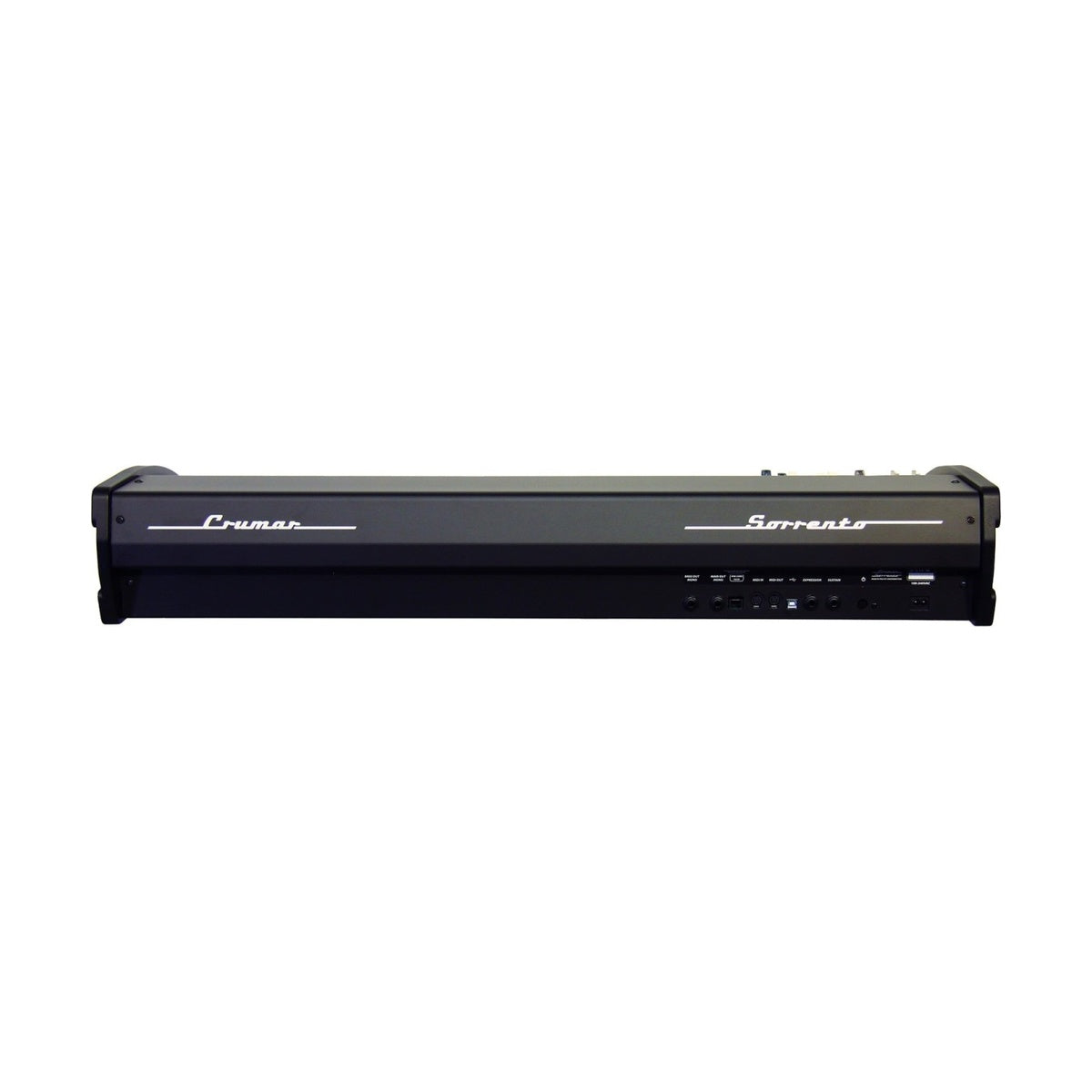

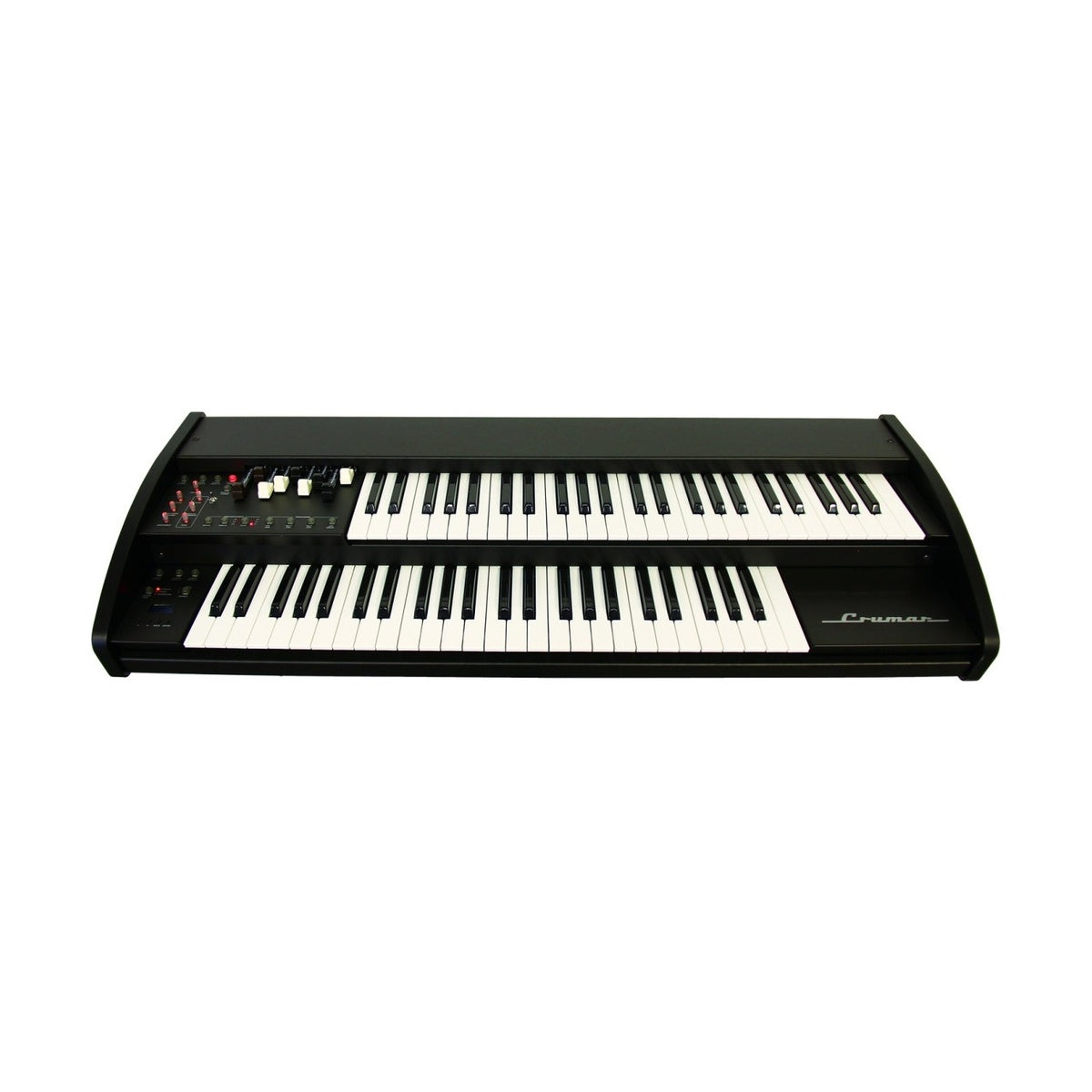

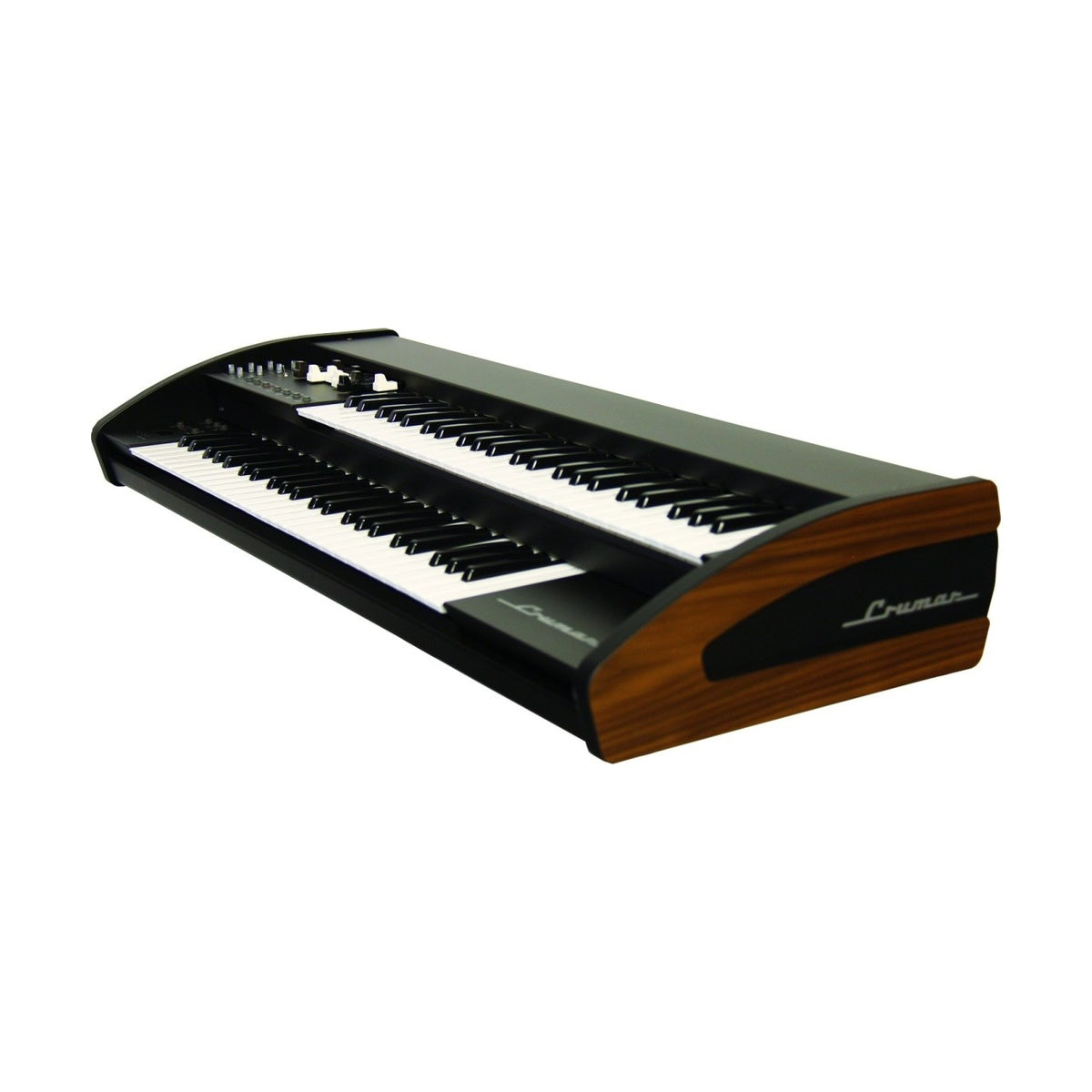

Crumar Sorrento is a dual-manual physical modeling spinet organ, manufactured in Italy by Crumar Instruments. Each unit ships with the BURN rotary speaker simulator pedal connected via a single ONE-CORD cable that carries both audio signal and power simultaneously.
Three sound engines and an independent bass output
The Sorrento is not another B3 sample player — it houses three distinct physical modeling engines in one instrument. The first is a full console tonewheel engine based on VB3 algorithms; the second is a vintage spinet with the specific tonal character of rock and progressive organ from the 1970s (Genesis, Pink Floyd); the third is a transistor organ with its own edge and grit, unavailable in tonewheel emulations. Each of the two 49-key manuals has octave shift functionality, giving the effective range of a full console organ without the physical footprint of a console. Nine real mechanical drawbars — not encoders — and two drawbar presets per manual with a quick storage mode. The bass section is a separate monophonic physical modeling synthesizer with independent Volume, Tone, and Decay controls, routed to its own dedicated 1/4" output. Bass to Lower mode routes bass playing to the lower manual. An onboard fully analog distortion circuit (Level, Drive, Tone) and ring modulator add a further layer of expression without any external processor.Modularity, ONE-CORD and integration with BURN
The Sorrento intentionally omits built-in reverb and rotary simulation — those functions are handled by the included BURN pedal, connected via the ONE-CORD RJ45 port. The modular approach means BURN can be replaced by any other rotary effect, a real Leslie cabinet, or a guitar amplifier. Three independent mono outputs — ONE-CORD (audio and power to BURN), main organ output, and bass output — allow full independent signal routing for each source. MIDI IN/OUT (5-pin DIN) and USB Type B for computer connectivity. Expression and sustain pedal inputs. An OLED display with built-in editor and navigation handles all parameter editing directly on the instrument. Boot time is instant — no operating system startup delay.KEY FEATURES
- Two 49-key synth-action semi-weighted velocity-sensitive manuals with octave shift
- Three physical modeling engines: tonewheel (VB3-derived), vintage spinet, transistor organ
- Monophonic physical modeling bass synthesizer with Volume, Tone, Decay controls
- 9 real mechanical drawbars + two drawbar presets per manual with quick save mode
- Percussion, keyclick, vibrato (on/off + type), limiter
- Fully analog distortion circuit (Level, Drive, Tone) + ring modulator
- Bass to Lower mode — bass synth playable from the lower manual
- Three mono audio outputs: ONE-CORD (audio + BURN power), main organ out, bass out
- MIDI IN/OUT (5-pin DIN) + USB Type B (MIDI IN/OUT to computer)
- Expression pedal input + sustain pedal input
- OLED display with built-in editor and navigation
- Instant startup — no boot time
- Included: Crumar BURN pedal (Leslie simulation + spring/digital reverb) with ONE-CORD cable
- Wooden side panels, manufactured in Italy
TECHNICAL SPECIFICATIONS
- Manuals: 2x 49 keys, synth-action semi-weighted, velocity-sensitive
- Sound engines: 3x physical modeling (tonewheel VB3, spinet, transistor) + bass synthesizer
- Drawbars: 9 (real mechanical)
- Audio outputs: 3x mono 1/4" jack (ONE-CORD / main organ out / bass out)
- MIDI: 1x 5-pin DIN IN, 1x 5-pin DIN OUT
- USB: Type B (device) — MIDI IN/OUT
- ONE-CORD: RJ45/Cat5 — audio and power to BURN (not standard Ethernet)
- Pedal inputs: 1x expression, 1x sustain
- Display: OLED with navigation and built-in editor
- Power: internal (built-in power supply)
- Dimensions: approx. 1000 × 152 × 406 mm (39.4 × 6 × 16 in)
- Weight: approx. 13 kg (28.6 lbs)
- Manufactured in Italy
