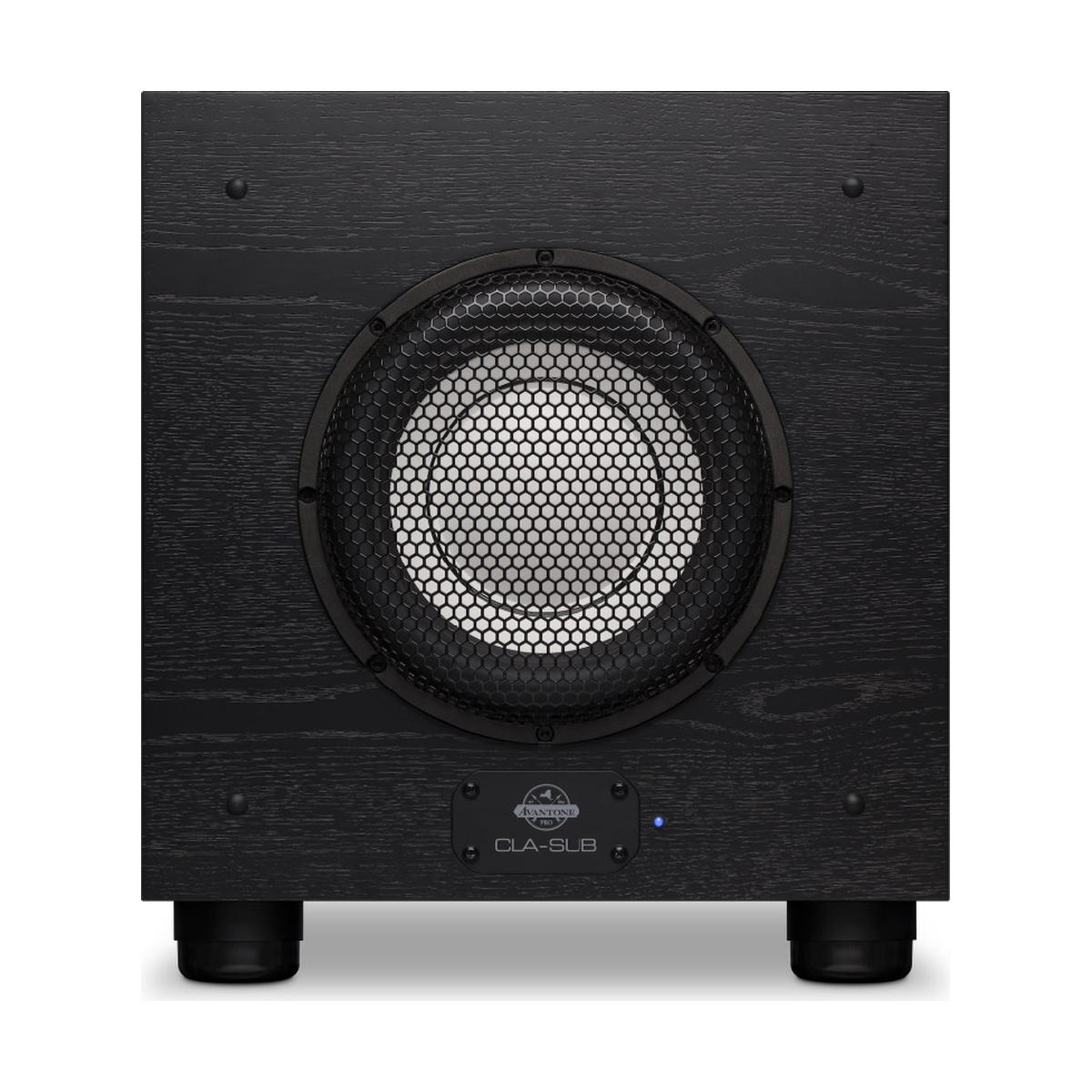

Avantone Pro CLA-Sub is a 300-watt powered studio subwoofer designed to complement high-end monitoring systems, including the renowned CLA series. It features a unique 10-inch custom driver with a stacked dual-ferrite magnet and a rigid paper cone, ensuring exceptionally clean and fast low-frequency reproduction with minimal distortion. This subwoofer allows engineers to hear the bottom end of their tracks with honesty and precision, rather than relying on artificial harmonic enhancement.
What truly sets the CLA-Sub apart is its dual-firing flexibility, allowing it to be configured in either front-firing or downward-firing modes. Front-firing mode provides the cleanest, most accurate response, while downward-firing mode intentionally couples with the floor to increase output by +3 dB for added impact. The unit offers seamless integration with any setup through a sweepable high-cut control (50-180 Hz) and a selectable low-cut filter for the thru outputs (80/100 Hz). Its ported enclosure and repositionable vibration-dampening feet eliminate the need for aftermarket acoustic isolation pads.
KEY FEATURES
- 300W Class D power with a custom 10-inch dual-magnet driver
- User-configurable firing modes: Front-firing or Downward-firing
- Exclusive dual-magnet technology for superior control and efficiency
- Rigid paper cone optimized for fast transient response and clarity
- Sweepable high-cut crossover control from 50–180 Hz
- Selectable 80 Hz / 100 Hz low-cut filter for signal sent to studio monitors
- Footswitch-togglable bypass for instant A/B monitoring comparisons
- Switchable power-saving standby mode after 30 minutes of inactivity
- Locking XLR / 1/4” TRS combo inputs for secure connections
TECHNICAL SPECIFICATIONS
- Frequency Response: 25 Hz – 180 Hz
- Max Peak SPL: ≥ 116 dB
- Power Output: 300 Watts
- Enclosure Type: Ported (Bass-reflex)
- Driver: 10" Custom Dual-Magnet Woofer
- Dimensions: 457 × 419 × 419 mm (18” × 16.5” × 16.5”)
- Weight: 25 kg (55.12 lbs)
- I/O: 2x XLR Combo In, 2x XLR Out, Footswitch Jack
