ATC

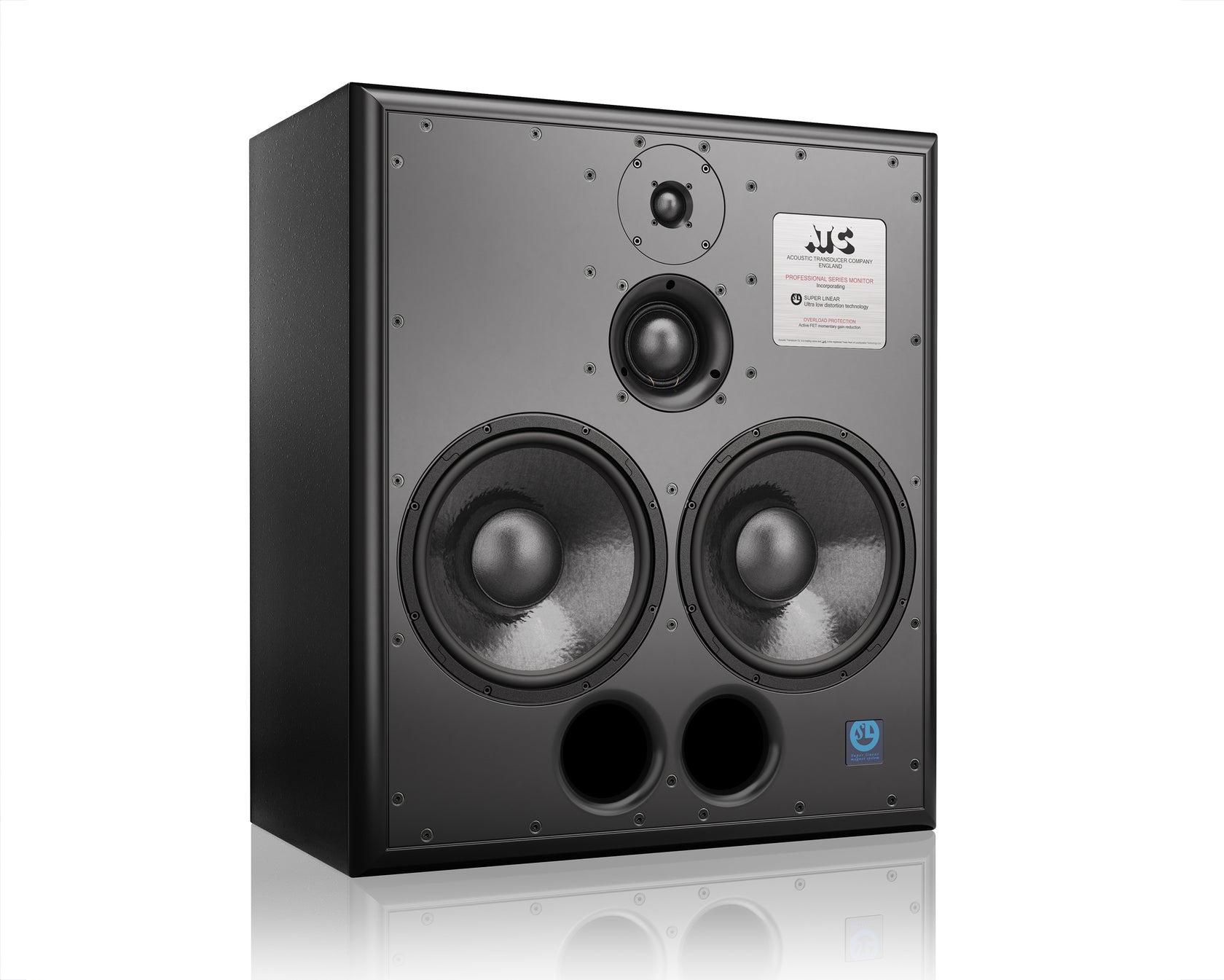

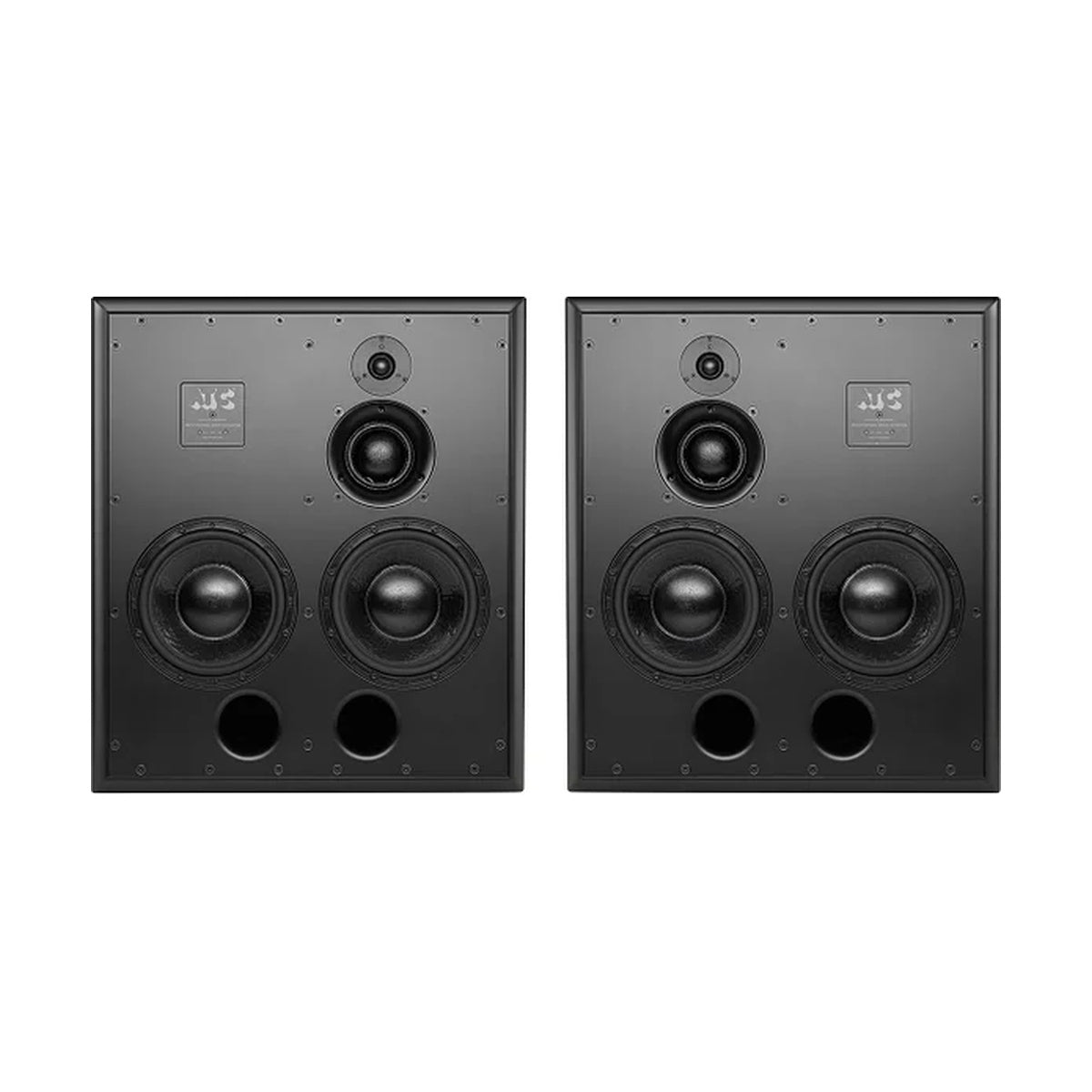

ATC SCM200ASL PRO
This item is available on a custom order basis only. Please contact us for more details. Contact us
The ATC SCM200ASL Pro monitors are a top choice for audio professionals, offering exceptional sound quality and reliability. Widely used in prestigious studios like David Gilmour's Astoria and Mark Knopfler's British Grove Studios, they are the ideal solution for those seeking the highest-quality stereo and multichannel monitoring.
Key Features of ATC SCM200ASL Pro
- 34 mm Soft Dome Tweeter: Precise reproduction of high frequencies.
- Two "SL" 12"/314 mm Woofers: Exceptional power and clarity in low frequencies.
- ATC "Super Dome" 75 mm Midrange Driver: Detailed reproduction of midrange frequencies.
- 850 W Four-Channel Amplifier: Dedicated power for each frequency range, rack-mounted.
- Overload Indicator and Thermal Protection: Ensures reliable performance during intensive use.
- 6-Year Warranty: Assurance of quality and durability.
Technical Specifications of ATC SCM200ASL Pro
Drivers:
- HF: 34 mm
- Mid: 75 mm
- LF: 2 x 314 mm
Frequency Response (Linearity ±2 dB): 60 Hz – 12 kHz
Cut-Off Frequencies (-6 dB):
- Free-standing: 32 Hz, 20 kHz
- Soffit-mounted: 25 Hz, 20 kHz
Maximum Continuous SPL (1 meter): 118 dB
Crossover Frequencies: 380 Hz, 3.5 kHz
Input Connectors: Male XLR
Input Sensitivity: 2 V
Input Impedance: Balanced >10 kΩ
Amplifier Output:
- Bass: 275 W + 275 W
- Mid: 200 W
- High: 100 W
Dimensions (H x W x D): 830 x 730 x 440 mm
Weight: 116 kg
