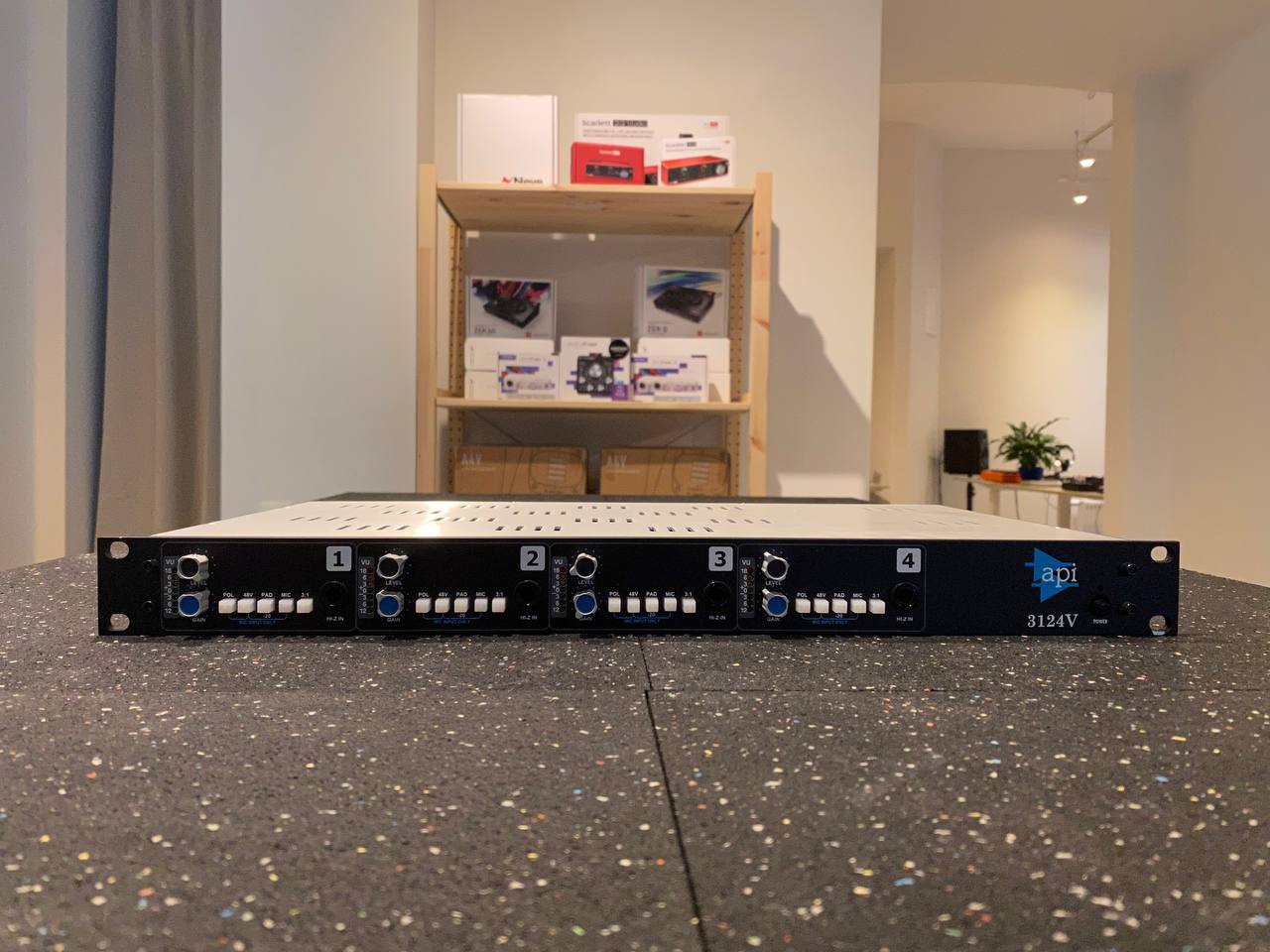

API 3124V
4-channel preamplifieris a high-quality, compact 4-channel microphone preamplifier. The unit has an internal 48V phantom power supply that can be switched on and off for each channel and -20dB switches that affect both the microphone inputs and the front panel Hi-Z instrument inputs . These Hi-Z inputs can handle levels up to +20dBu, making them ideal for keyboards and other high-impedance instruments. In addition, these front-panel Hi-Z inputs are connected directly to operational amplifiers, so even low-level inputs, such as guitar or bass, can be amplified without the use of a DI box. Input gain and output level can be set separately for each channel. In addition,
a3:1 option can be used to select the gain ratio from the 2520 op-amps to the preamps, changing the sound accordingly.
Features of the 3124V:- Classic API circuit design
- Uses API 2520 op amps
- Variable output level control
- 3:1 output transformer selection
- Four XLR microphone inputs
- Four XLR outputs
- Four 6.3 mm Hi Z jack sockets
- Polarity switch
- -20dB Pillow switch
- Front mic / instrument switch
- 48V phantom power per channel switchable
