Wunder Audio CM12 S is a large-diaphragm, multi-pattern tube condenser microphone, meticulously designed as a modern tribute to the legendary AKG C12. It features a CK12-style capsule, NOS GE 6072A tube, and a custom Hiller T14/1 transformer, all built to exacting vintage specifications. The CM12 S delivers a refined, open top end, smooth mids, and warm, controlled lows, making it ideal for vocals, acoustic instruments, and orchestral recording.
The hand-brazed, nickel-plated grille and brass body ensure maximum structural integrity while reducing resonances and standing waves. Its 1-inch dual backplate capsule with a 6-micron Mylar diaphragm provides outstanding transient response and characteristic high-frequency air. The internal electronics use premium passive components, including the Suprema Silver Gold Oil capacitor, known for exceptional musicality and micro-detail reproduction.
The updated power supply supports global voltages and uses precision multi-turn trim pots for fine-tuning plate and heater voltages. The microphone offers nine selectable polar patterns, from omni to cardioid and figure-eight, switchable via a high-grade Grayhill rotary control. Each CM12 S is hand-built and tested to achieve the sonic accuracy and warmth of the best vintage C12 units, while maintaining modern reliability.
KEY FEATURES
- Inspired by the iconic AKG C12 with enhanced vintage accuracy and reliability
- Handcrafted CK12-style dual backplate capsule with 6-micron Mylar diaphragm
- NOS GE 6072A vacuum tube for low noise and rich harmonic response
- Custom-wound Hiller T14/1 transformer for authentic tonal depth
- Nine selectable polar patterns: omni, cardioid, figure-eight and intermediates
- Suprema Silver Gold Oil capacitor for refined microdynamics and clarity
- Hand-brazed, nickel-plated grille and solid brass body for acoustic precision
- Next-generation PSU with global voltage support and fine adjustment controls

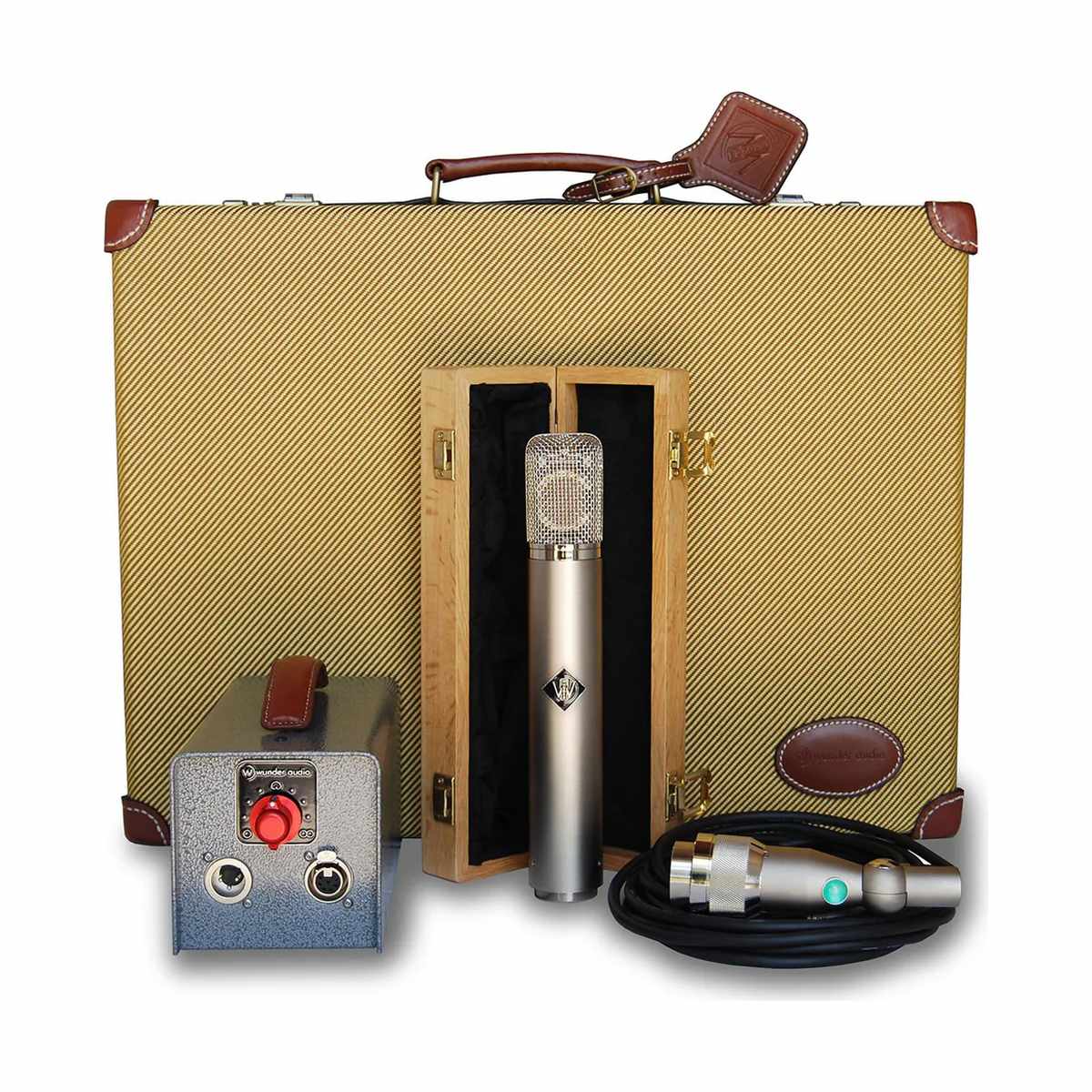

- Includes custom power supply, Tuchel cable, oak storage box, and tweed case
TECHNICAL SPECIFICATIONS
- Type: Large-diaphragm tube condenser microphone
- Capsule: CK12-style dual backplate, 1" diaphragm, 6 µm Mylar
- Polar patterns: 9 selectable via external PSU (omni to figure-eight)
- Frequency response: 20 Hz – 20 kHz ±2 dB
- Sensitivity: ~1.0 mV/µbar (≈ -60 dB re 1V/dyne/cm²)
- Equivalent noise level: <20 dB(A)
- Maximum SPL: 128 dB
- Impedance: 200 Ω
- Tube: GE 6072A dual triode
- Transformer: Hiller T14/1
- Power supply: Multi-voltage PSU (110–245 V AC, 50/60 Hz)
- Connector: 7-pin Tuchel screw-on type
- Dimensions: 160 mm length × 50 mm diameter
- Included accessories: PSU, Tuchel cable, oak case, tweed carrying case
