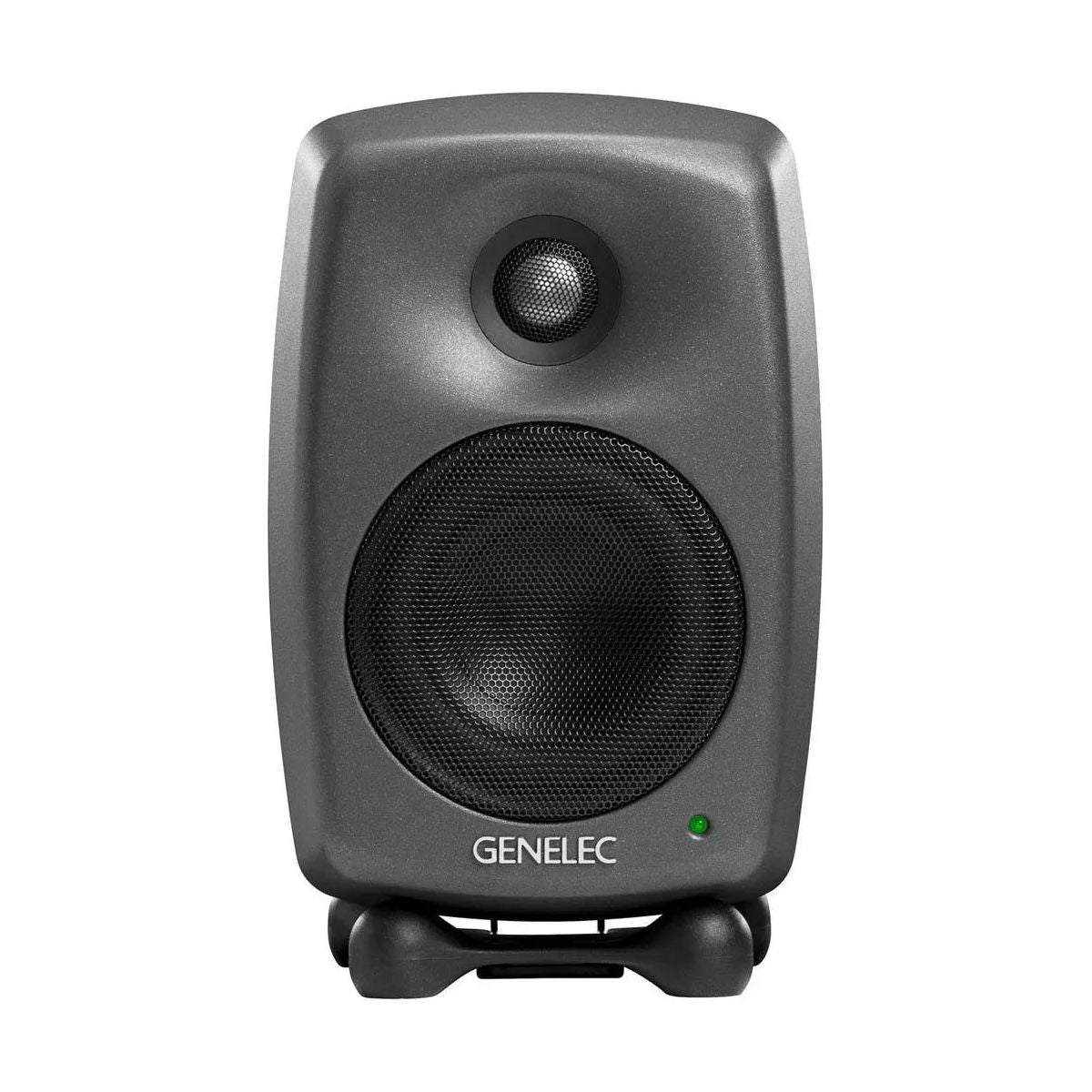

GENELEC 8020DPM Monitor 8020D dunkelgrau

Genelec 8020DPM – Ultra-compact 2-way nearfield monitor delivering 100 dB SPL, Class D bi-amplification (50 W bass + 50 W treble), and DCW™ waveguide for precise imaging in small spaces.

The 8020D is Genelec’s benchmark for performance versus size, offering transparent, uncoloured sound from 56 Hz to 25 kHz in a 242 × 148 × 142 mm enclosure. Its Active Crossover and Minimum Diffraction Enclosure (MDE™) ensure a flat response (± 2.5 dB) and consistent off-axis dispersion. Intelligent Signal Sensing (ISS™) powers down the monitor when idle, reducing consumption. The included Iso-Pod™ stand isolates and angles the monitor for optimal placement, while room response compensation switches let you tailor bass and treble to your environment.

KEY FEATURES

• 50 W Class D bass + 50 W Class D treble amplification
• Frequency response: 56 Hz – 25 kHz (–6 dB); ± 2.5 dB (62 Hz – 20 kHz)
• Maximum SPL: 100 dB short-term; ≥ 107 dB peak (pair)
• Directivity Control Waveguide (DCW™) for stable imaging
• Active Crossovers for precise driver alignment
• Intelligent Signal Sensing (ISS™) auto on/off
• Minimum Diffraction Enclosure (MDE™) design
• Room Response Compensation via rear-panel DIP switches
• Iso-Pod™ stand for mechanical decoupling and tilt adjustment
• XLR balanced input (10 kΩ)

TECHNICAL SPECIFICATIONS

• Drivers: 105 mm bass cone; 19 mm metal-dome tweeter
• Amplifier power: 50 W bass; 50 W treble
• Dimensions (H×W×D): 242 × 148 × 142 mm (with Iso-Pod™)
• Weight: 3.2 kg
• Enclosure: Die-cast aluminium with reflex port
• Connections: 1× XLR analog input, balanced 10 kΩ
• Power consumption: ISS active ≤ 0.5 W; idle ≤ 3 W; full output ≤ 60 W
• Self-generated noise: ≤ 5 dB SPL @ 1 m (A-weighted)
• Directivity: ± 80° horizontal; ± 10° vertical (–6 dB @ 10 kHz off-axis)
• Harmonic distortion: ≤ 3 % (50–200 Hz); ≤ 0.5 % (> 200 Hz)
