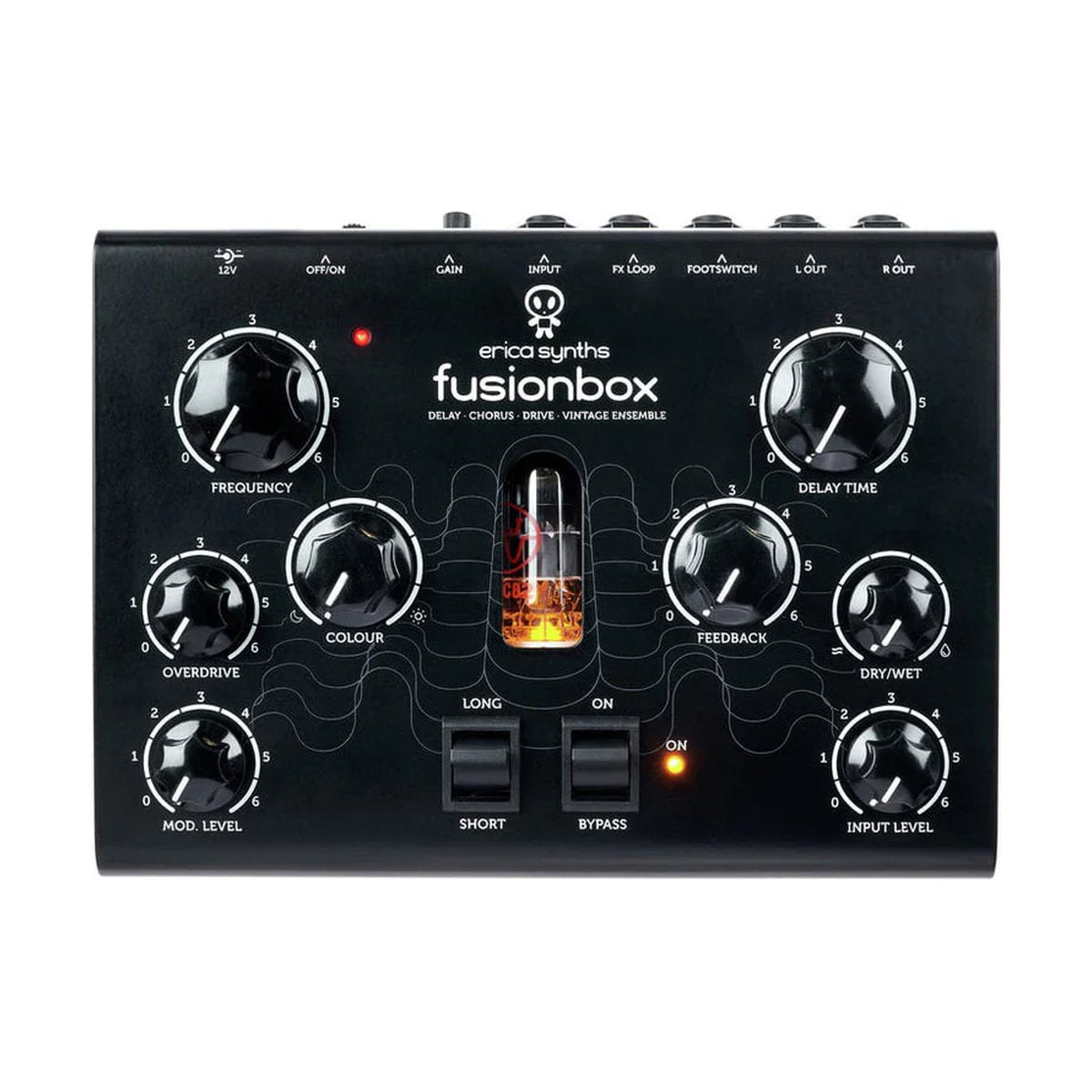

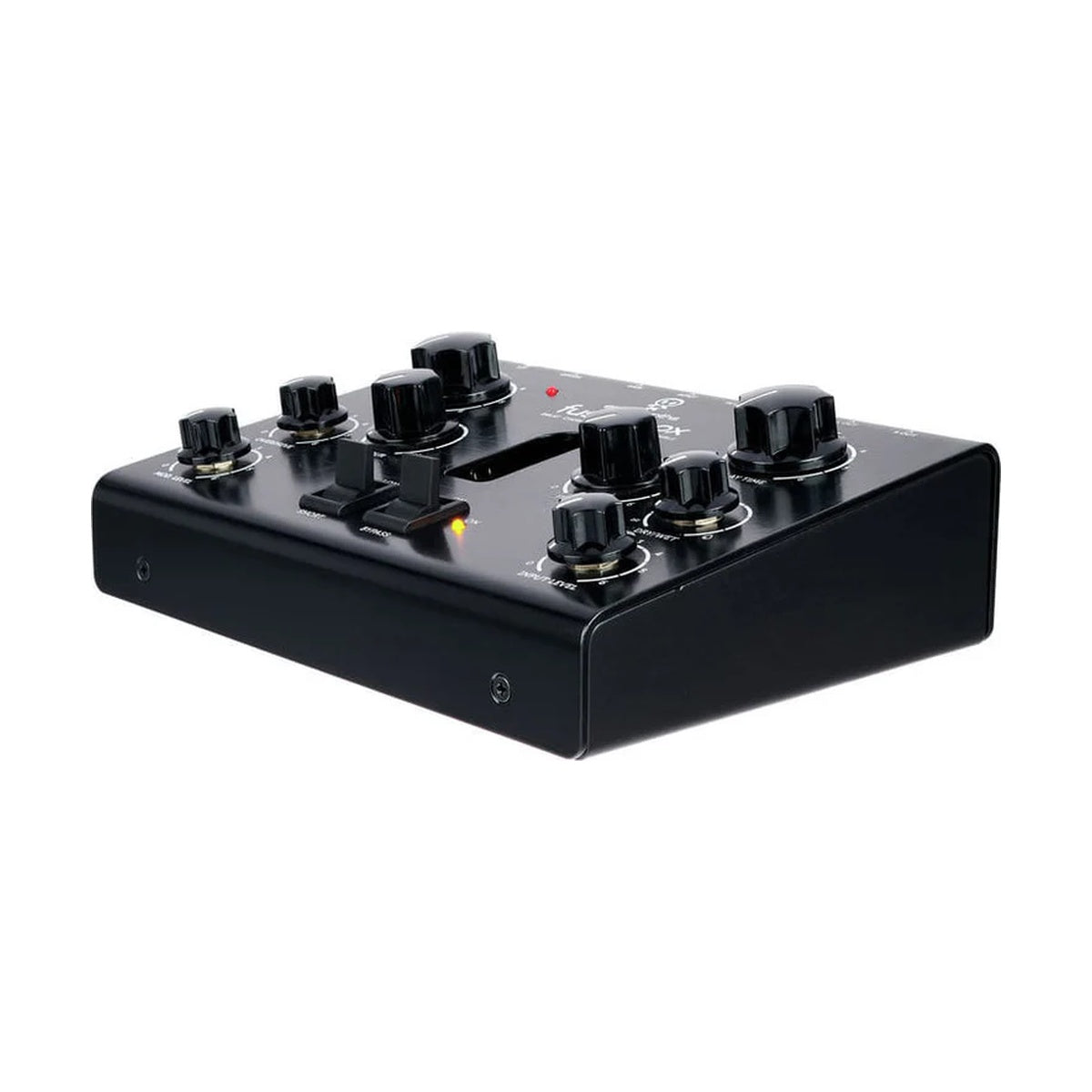

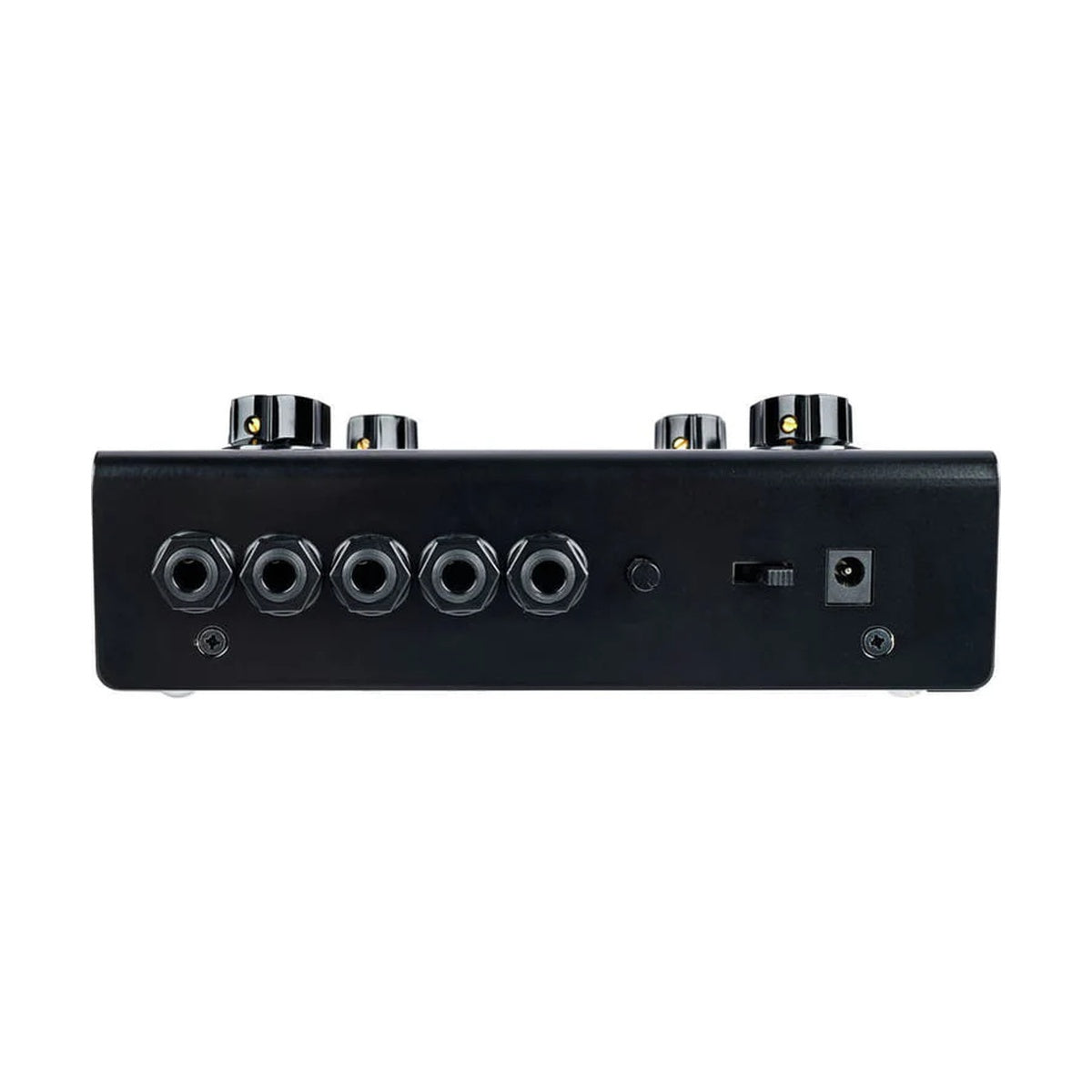

Erica Synths Fusion Box – multifunctional analog effects processor with BBD chips, offering delay, flanger, and chorus with tube overdrive in delay and feedback path for extra sound thickness. Provides warm, organic tones with adjustable input gain, ideal for guitars, synths, grooveboxes. Footswitch for bypass, compact enclosure (200 x 130 x 50 mm, 0.8 kg) for pedalboard/desktop.
Fusion Box features adjustable lowpass filter from none to extreme for deep bass, vintage stereo ensemble inspired by classic synths. 20 Hz–20 kHz bandwidth, low distortion. 9V DC power, 9V battery (6h). Low latency for live.
As unique tool, blends BBD effects with tube character, ready for creative use without compromise.
MAIN FEATURES
- BBD chip: delay, flanger, chorus with tube overdrive
- Adjustable input gain for various sources
- Lowpass filter from none to extreme
- Vintage stereo ensemble
- Footswitch bypass
- Stereo I/O, headphone out
- Portable: 200 x 130 x 50 mm, 0.8 kg
- 2-year warranty
TECHNICAL SPECIFICATIONS
- Chip: BBD (delay/flanger/chorus)
- Overdrive: Tube in delay/feedback
- Filter: Lowpass, adjustable
- Inputs: 1/4" stereo
- Outputs: 1/4" stereo, headphone
- Frequency Response: 20 Hz–20 kHz
- THD + N: < 0.1% @ 1 kHz
- Power: 9V DC, 100 mA; 9V battery (6h)
- Dimensions (W × D × H): 200 x 130 x 50 mm
- Weight: 0.8 kg
- Included: Fusion Box, power supply
- Product Code: ERI-FUSION-BOX
