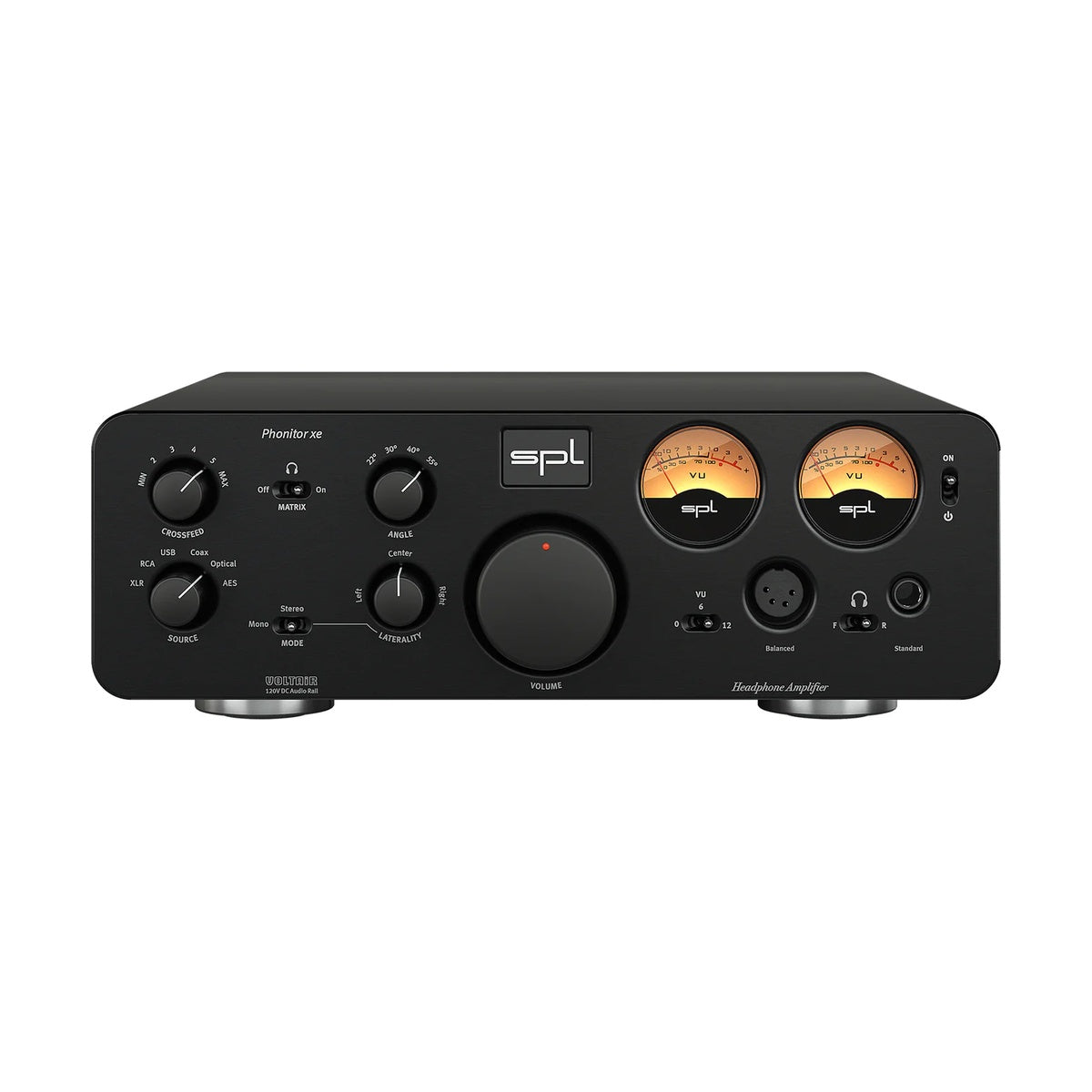

SPL Phonitor xe Black + DAC768v2

SPL Phonitor xe Black + DAC768v2 – premium headphone amplifier with integrated DAC for studio and hi-fi use. Features VOLTAiR technology for dynamic, detailed sound up to 3.7W output. Phonitor Matrix simulates speaker crosstalk for natural stereo imaging. Supports up to 6 stereo sources via XLR, RCA, USB, Coax, Optical, AES. Black aluminum chassis with VU meters and IR remote learning.

Optional DAC768v2 uses AKM AK4493 SEQ chip for PCM up to 32-bit/768kHz and DSD256, with SLP120 low-pass filter. Dual headphone outputs (front/rear) for standard and balanced connections. Laterality control adjusts stereo balance; mono mode available. Ideal for professionals and audiophiles seeking uncompromised clarity and power.

MAIN FEATURES

• VOLTAiR op-amps for high voltage, low distortion
• Phonitor Matrix with adjustable crossfeed angles
• Dual headphone outputs: 1/4" jack and 4-pin XLR balanced
• Up to 6 stereo inputs including digital via DAC768v2
• AKM AK4493 SEQ DAC: 32-bit/768kHz PCM, DSD256
• SLP120 analog filter for smooth conversion
• 45mm aluminum volume knob, IR remote compatible
• Retro VU meters for level monitoring
• Laterality control and mono switch
• Handcrafted in Germany, premium aluminum housing

TECHNICAL SPECIFICATIONS

• Inputs: 1 x XLR balanced stereo, 1 x RCA unbalanced stereo, USB, Coax, Optical, AES (via DAC768v2)
• Outputs: 2 x headphone (1/4" front/rear, 4-pin XLR balanced)
• Output Power: 3.7W into 600Ω (balanced)
• DAC: AKM AK4493 SEQ, 32-bit/768kHz PCM, DSD256
• Frequency Response: 10Hz-100kHz
• THD + Noise: <0.0006% (1kHz/+22dBu)
• Power Supply: Internal linear, 100-240V AC
• Dimensions (W x D x H): 278 x 300 x 100 mm (10.95" x 11.81" x 3.94")
• Weight: 4.9 kg (10.8 lbs)
• Included: Phonitor xe Black + DAC768v2, power cord, IR remote
• Product Code: PHONITOR-XE-BLK-DAC
