TC Electronic Clarity M Stereo – professional stereo loudness and audio analysis meter for mixing, mastering, and post-production. Features 7" 800x480 LCD for precise loudness, spectrum, and stereo monitoring. Supports broadcast standards (EBU R128, ATSC A/85, ITU-R BS.1770). Ideal for recording studios and live. Compact enclosure (310 x 200 x 40 mm, 1.5 kg).
Clarity M Stereo offers 1/3 octave RTA, vectorscope, correlation meter, balance meter, true-peak metering. USB to DAW (VST/AU/AAX), AES3 BNC (96 kHz), TOSLINK optical. Low latency, GPIO for automation. 30 factory presets, compatible with Pro Tools, Logic, Nuendo.
As pro tool, ensures accuracy without compromise in monitoring.
MAIN FEATURES

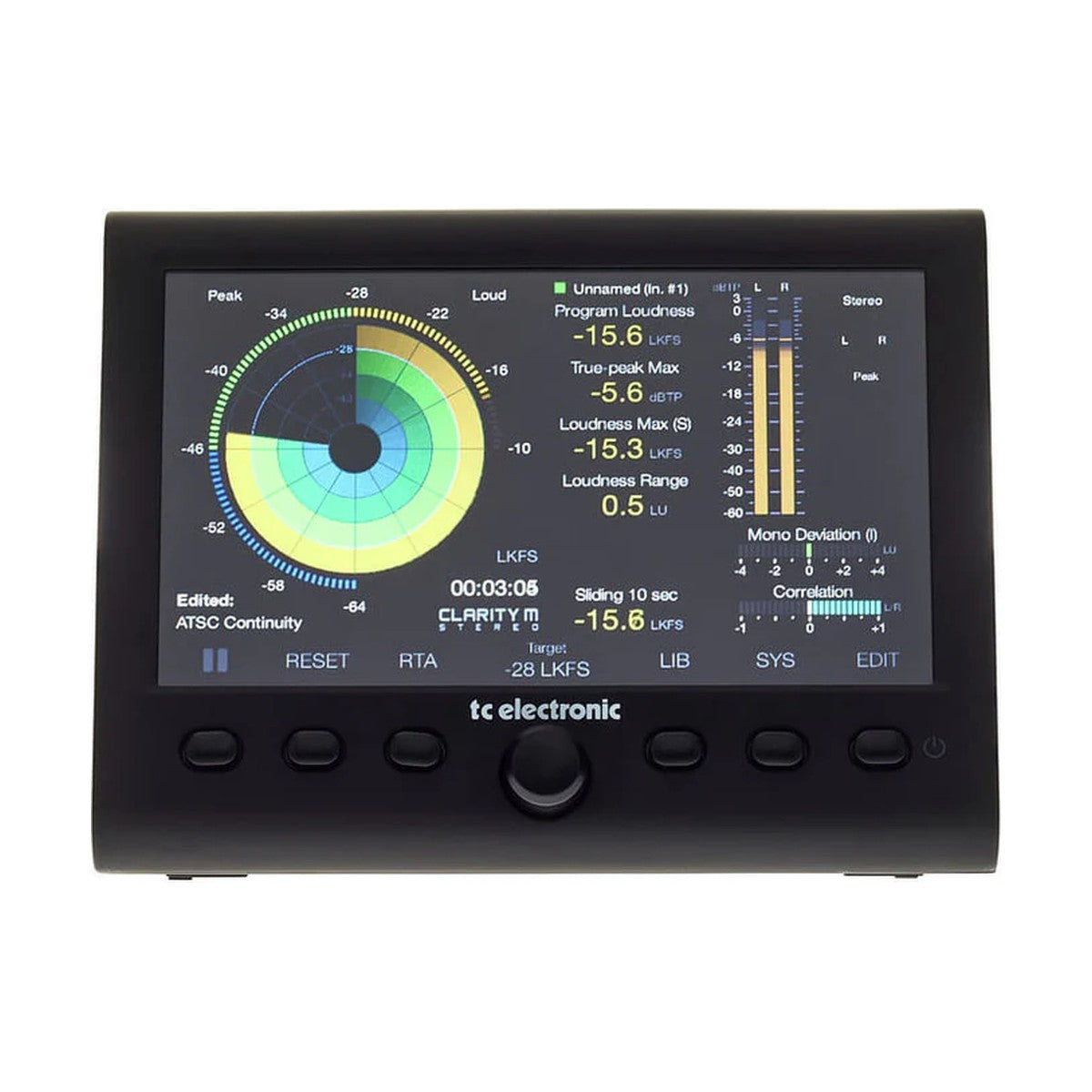

- 7" color LCD (800x480) for metering visualization
- 1/3 octave RTA, vectorscope, correlation, balance meter
- True-peak and loudness metering (EBU R128, ATSC A/85)
- USB to DAW (VST/AU/AAX), AES3 BNC, TOSLINK
- GPIO for external control
- 30 presets, low latency
- Compatible with Pro Tools, Logic, Nuendo
- Portable: 310 x 200 x 40 mm, 1.5 kg
TECHNICAL SPECIFICATIONS
- Display: 7" LCD, 800x480

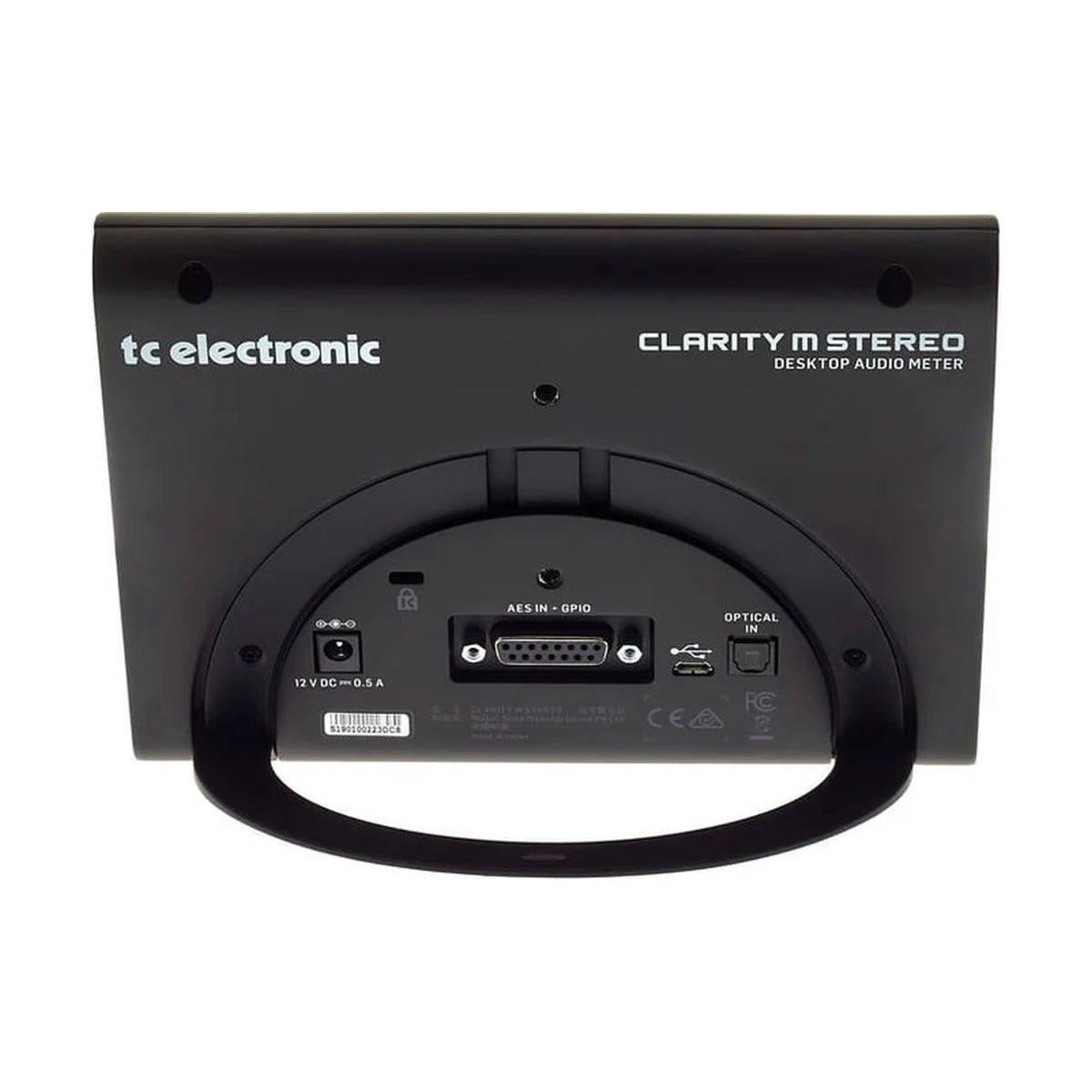

- Audio I/O: AES3 BNC (stereo 96 kHz), TOSLINK optical
- USB: For DAW metering (VST/AU/AAX)
- Resolution: 24-bit/96 kHz
- Frequency Response: 20 Hz–20 kHz
- THD + N: < 0.01% @ 1 kHz
- Power Supply: 12V DC
- Dimensions (W × H × D): 310 x 200 x 40 mm
- Weight: 1.5 kg

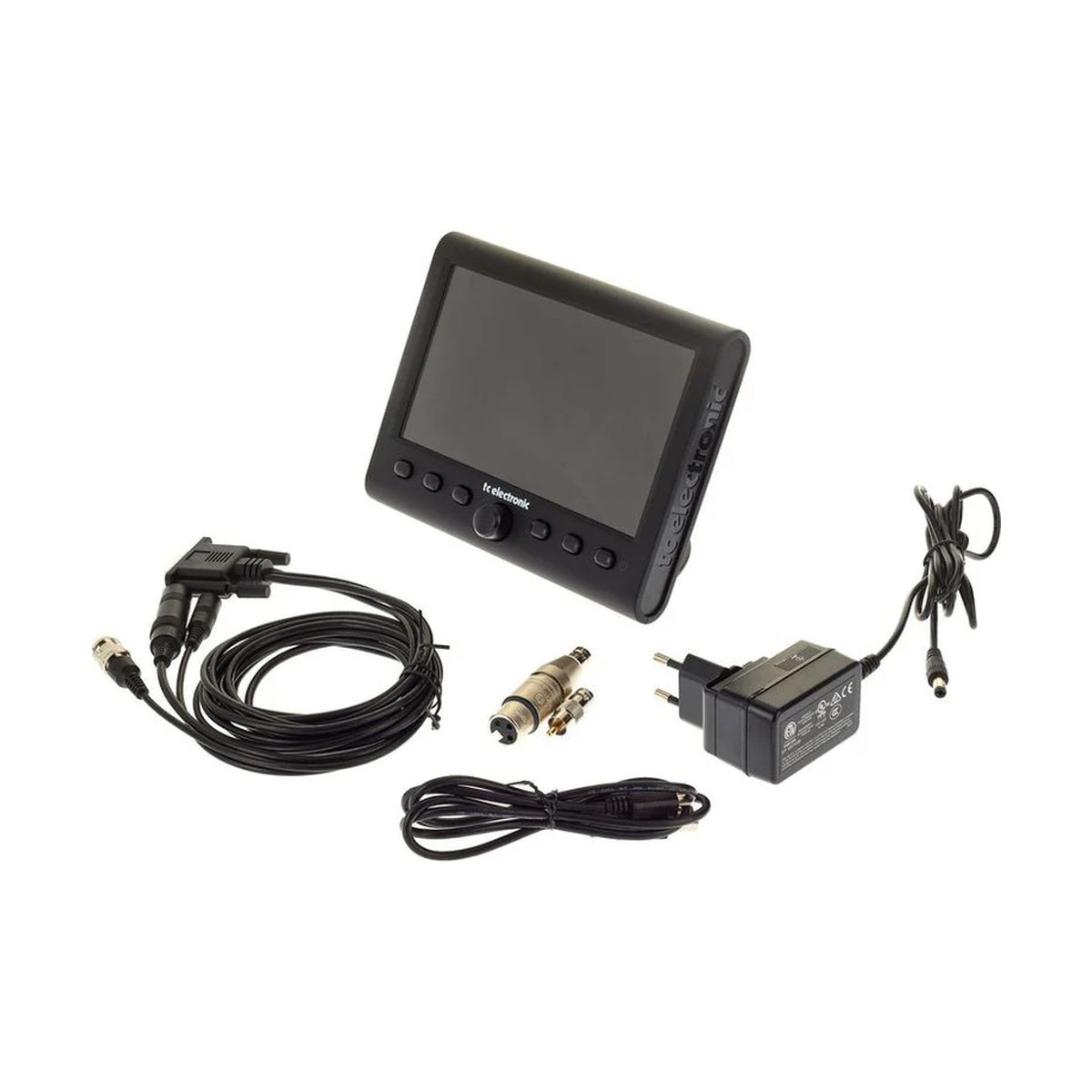

- Included: Clarity M Stereo, power supply, DB15 cable
- Product Code: TCE-CLARITY-M-ST
