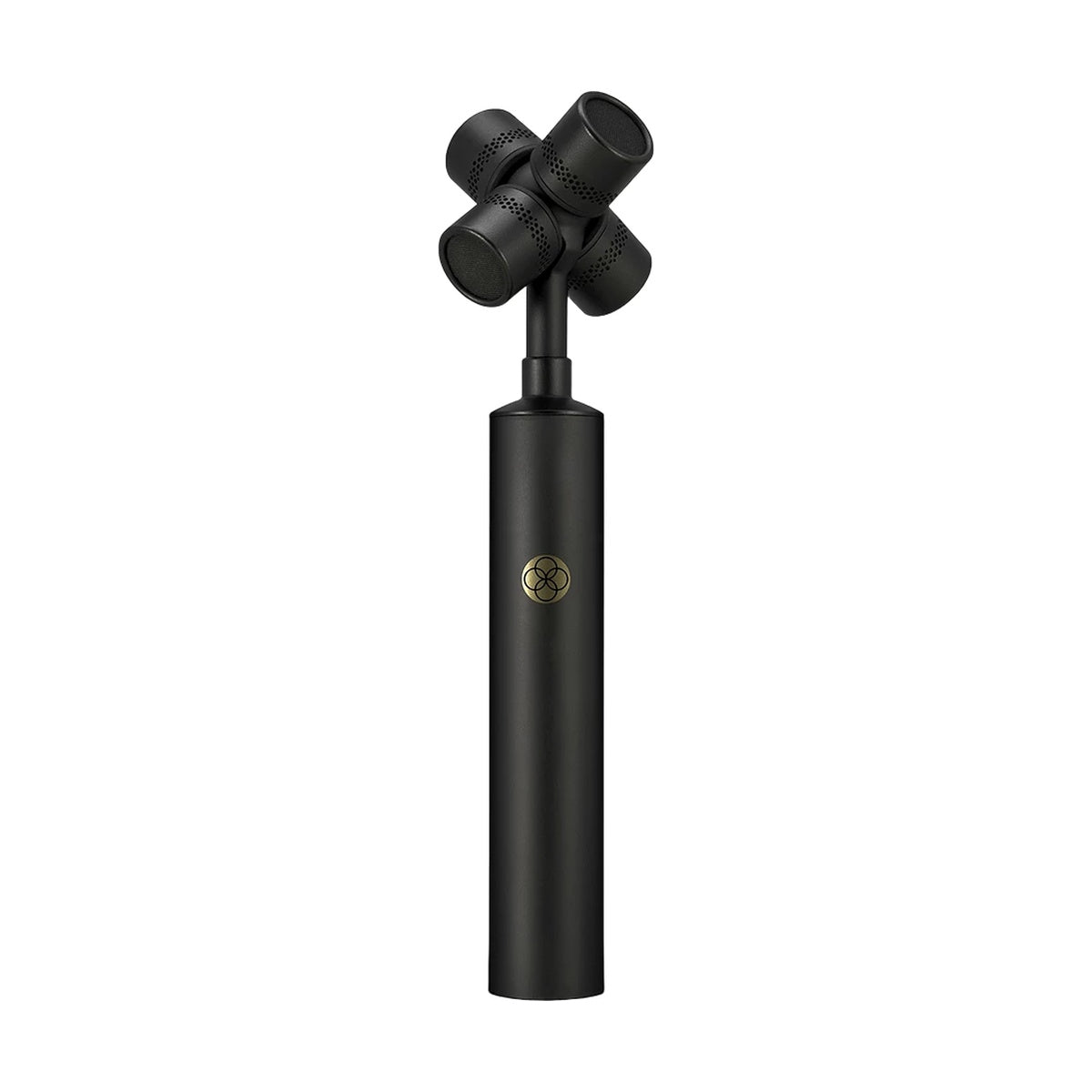

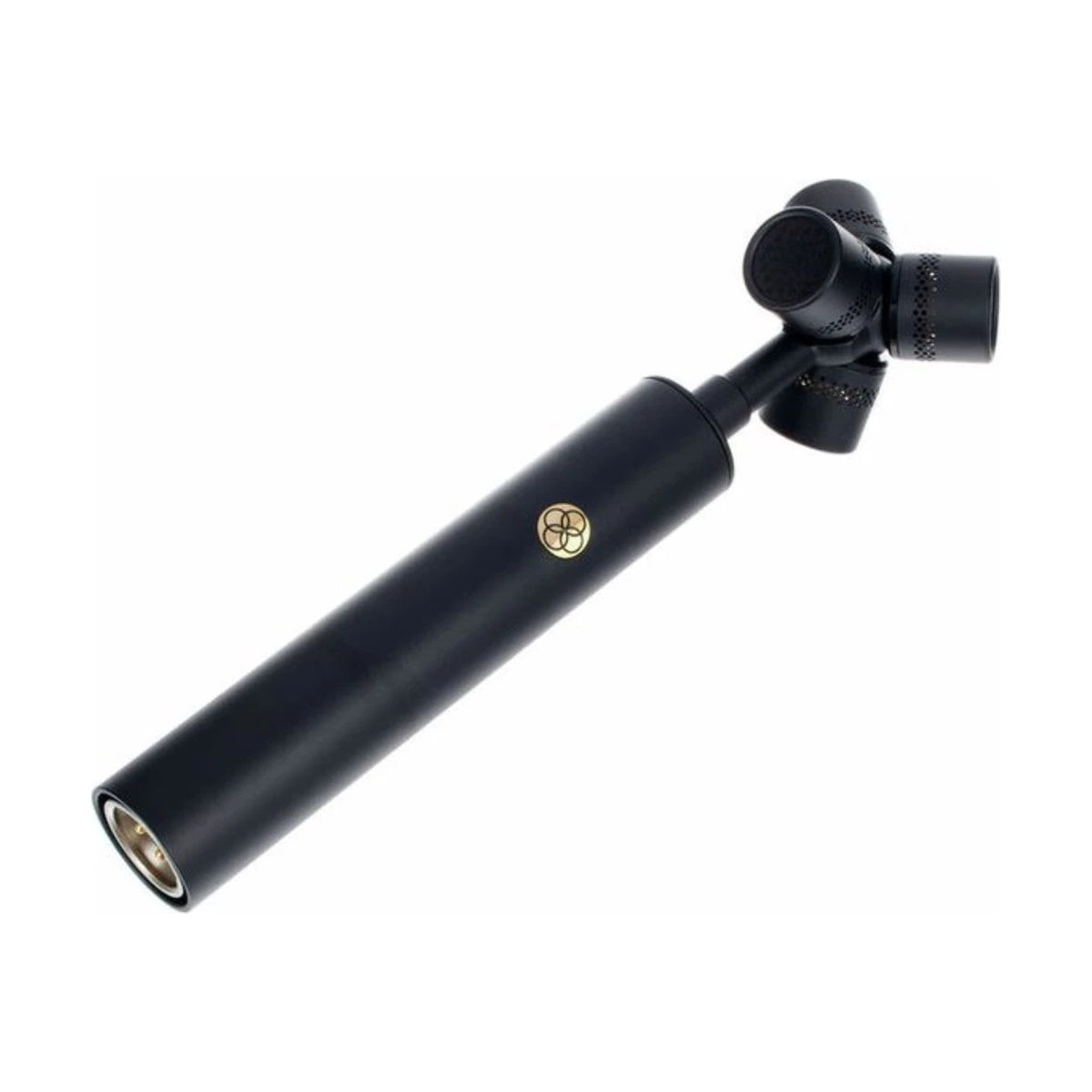

RODE SoundField NT-SF1

RODE SoundField NT-SF1 — a premium ambisonic microphone designed for high-resolution 3D audio capture. Developed in collaboration with SoundField — the pioneers of ambisonic recording — the NT-SF1 delivers full-sphere sound reproduction, capturing every direction with stunning realism and spatial accuracy.

At its core, the NT-SF1 features four precisely matched ½-inch true condenser capsules arranged in a tetrahedral array, enabling full A-format ambisonic recording. When decoded via the included SoundField by RØDE Plug-in, users can manipulate microphone orientation, polar pattern, and position in post-production, offering unmatched flexibility for VR, film, broadcast, and immersive music applications.

Each capsule is hand-selected for consistent frequency and phase response, ensuring perfect coherence across the 360° sound field. The microphone features ultra-low noise circuitry, high SPL handling, and a balanced XLR breakout cable for four-channel output. With its precision engineering and robust construction, the NT-SF1 is the ideal tool for professional spatial audio creators.

KEY FEATURES

• Ambisonic microphone capturing full-sphere 3D sound
• Four matched ½-inch true condenser capsules in tetrahedral array
• Compatible with SoundField by RØDE plug-in for post-production decoding
• Adjustable polar patterns, rotation, and positioning in software
• Ultra-low noise and wide frequency response
• High SPL handling for demanding recording environments

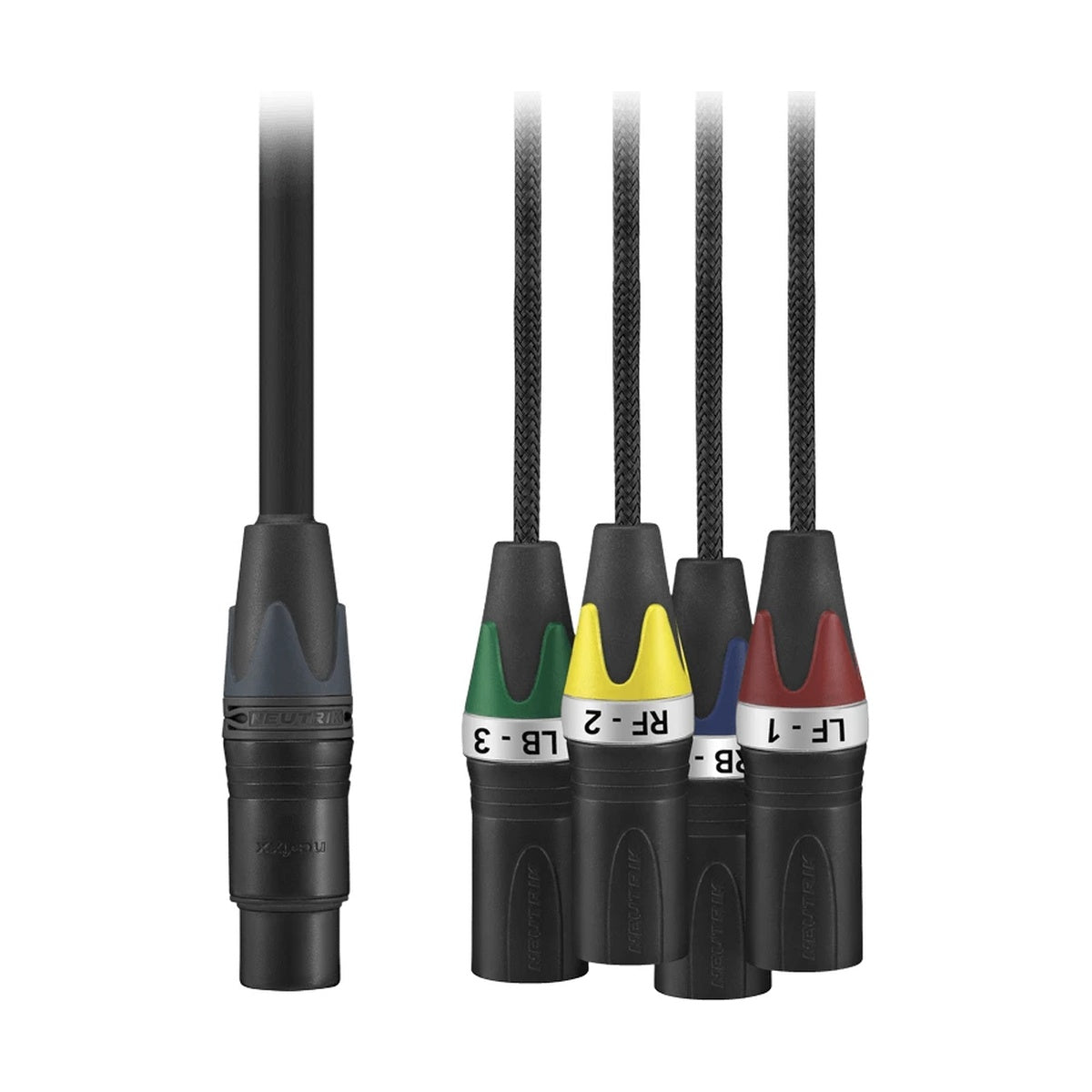

• Four balanced XLR outputs via included breakout cable
• Ideal for VR, immersive audio, film, and broadcast

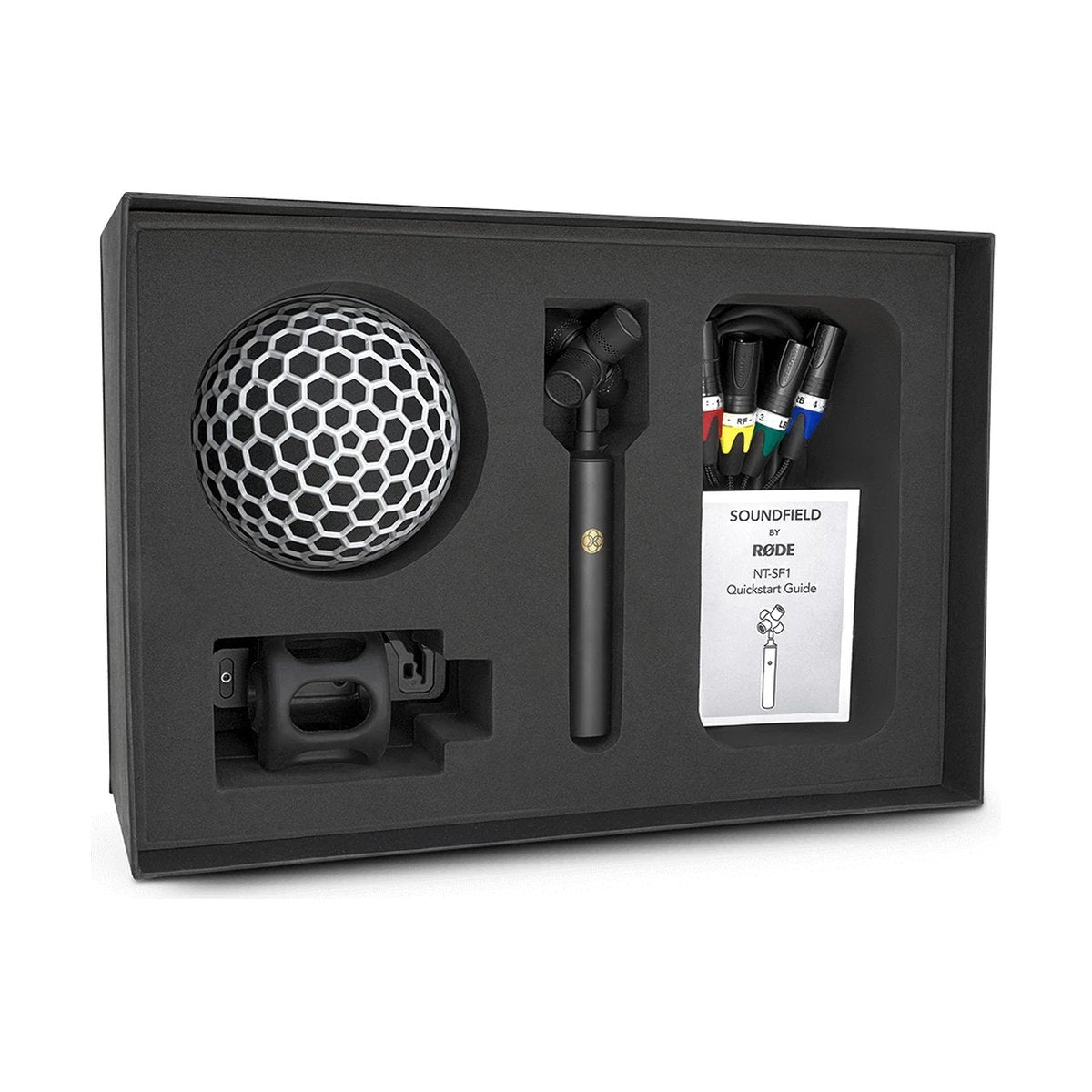

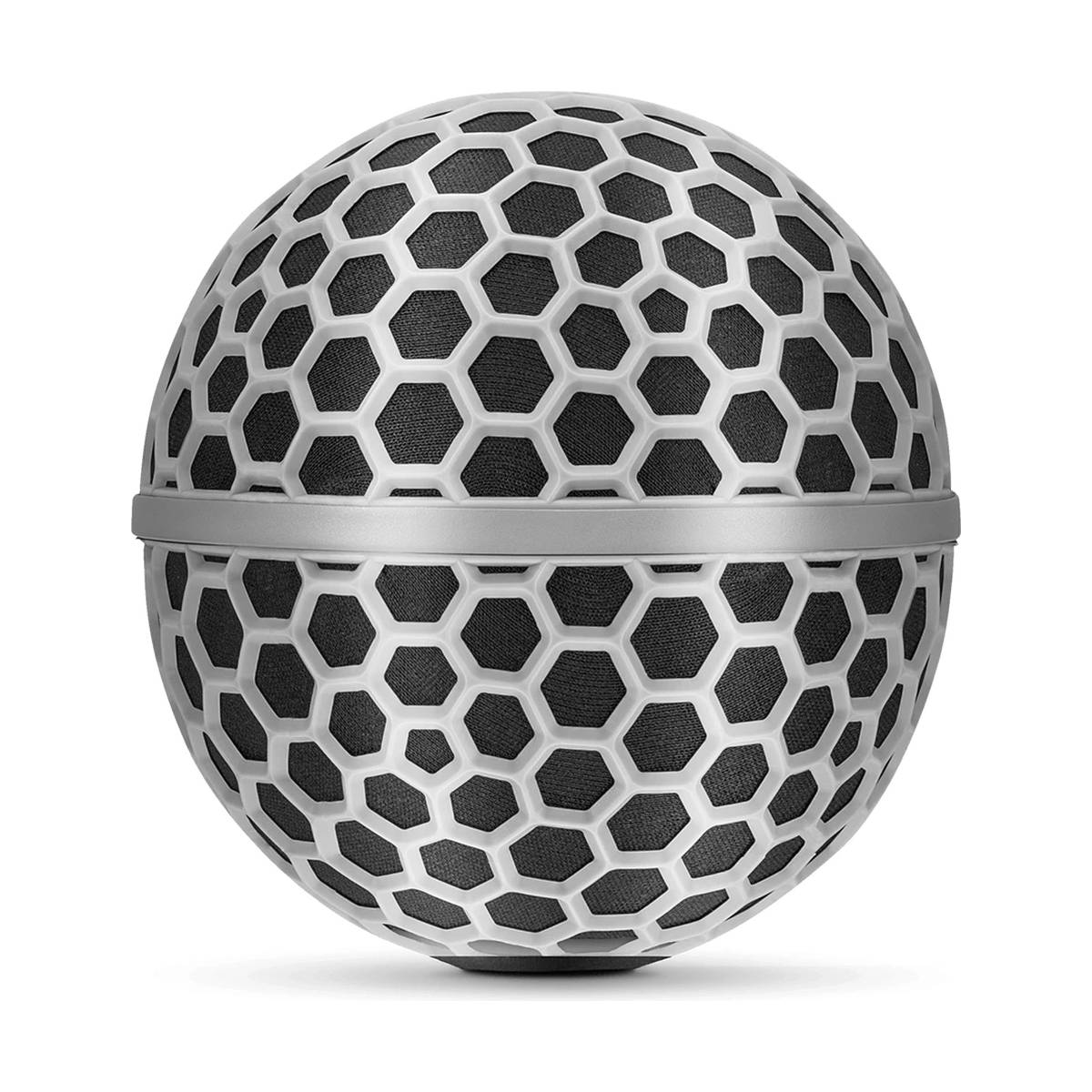

• Includes shock mount, windshield, and breakout cable

TECHNICAL SPECIFICATIONS

• Acoustic principle: 4 × ½-inch true condenser capsules (tetrahedral array)
• Polar pattern: Ambisonic (A-format, decodable to B-format)
• Frequency range: 20 Hz – 20 kHz
• Output impedance: 63 Ω
• Maximum SPL: 129 dB SPL (@ 1 kHz, 1% THD)
• Sensitivity: -30 dB re 1V/Pa (31.6 mV @ 94 dB SPL)
• Self-noise: 15 dBA
• Signal-to-noise ratio: 79 dB (A-weighted)
• Power requirements: 4 × 48V phantom power
• Output connection: 4 × XLR (via breakout cable)
• Dimensions: 192 mm × 45 mm × 45 mm
• Weight: 286 g
