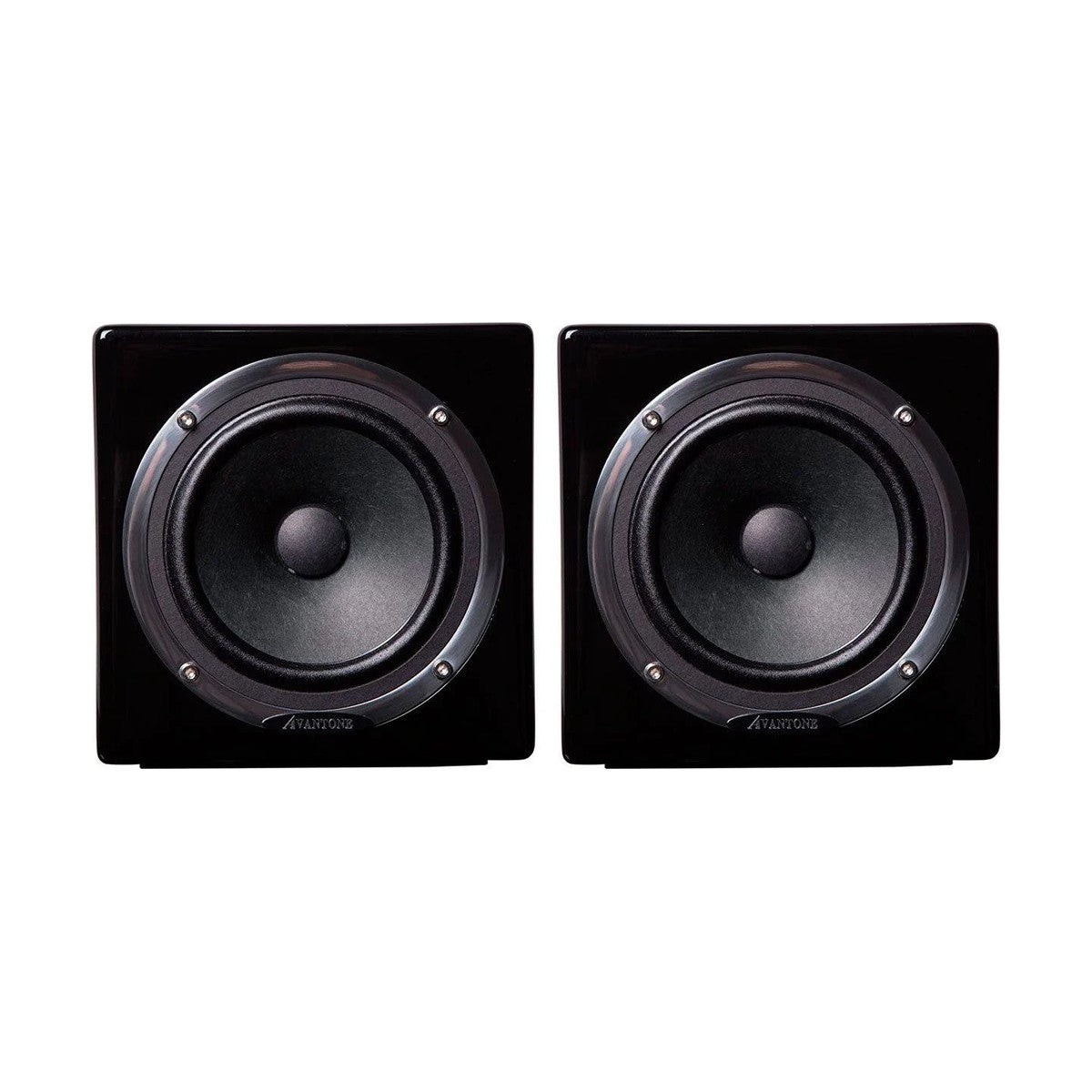

Avantone Pro MixCube Active Monitors (Pair) – Black – Compact active full-range monitors designed as the ultimate “safety-net” references, replicating bass-challenged playback systems with precision. Each enclosure houses a proprietary 5.25″ die-cast aluminum-frame paper-cone driver and a high-performance Class A/B amplifier.
MixCube Actives improve on the original 5C Sound Cubes with a redesigned cabinet, advanced low-resonance MDF, and a “no-compromise” 60 W RMS Class A/B amp built on a toroidal linear PSU. The custom driver uses New Zealand pulp with mica fibers, Japanese cloth surround, and MIL-SPEC magnets for extended bandwidth (90 Hz–17 kHz) and low distortion. A recessed 5/8″-27 mic stand mount and neoprene isolation pad enable easy, noise-free setup anywhere.
KEY FEATURES
- Active self-powered full-range stereo pair
- Proprietary 5.25″ cast-aluminum-frame paper cone driver with Dacron damping
- 90 Hz–17 kHz useful frequency range; 104 dB max SPL @ 1 m (1% THD, pink noise)
- 60 W RMS Class A/B amplifier with 0.005% THD @ 1 kHz
- Amplifier bandwidth: 22 Hz–50 kHz (+0/–3 dB)
- S/N ratio: 113 dB; nominal impedance: 8 Ω; sensitivity 0 dBu = 104 dB SPL
- Shielded driver and cabinet for low noise; sealed 18 mm MDF with Dacron stuffing
- Combo XLR/TRS balanced (+4 dBu) and RCA unbalanced (–10 dBV) inputs
- Recessed 5/8″-27 mic-stand mount and neoprene isolation pad
- Available in Black, Creme, and Red
TECHNICAL SPECIFICATIONS
- System type: Active full-range stereo monitors
- Driver: 5.25″ aluminum-frame paper cone, cloth surround, magnetic shielding
- Freq. response: 90 Hz–17 kHz (musical range)
- Max SPL: 104 dB @ 1 m (1% THD, pink noise)
- Amplifier: Class A/B, 60 W RMS, 0.005% THD @ 1 kHz
- Amplifier bandwidth: 22 Hz–50 kHz (+0/–3 dB)
- Noise: S/N 113 dB
- Sensitivity: 0 dBu (0.775 V RMS) input = 104 dB SPL @ max volume
- Impedance: 8 Ω nominal
- Inputs: 1× combo XLR/TRS balanced; 1× RCA unbalanced
- Cabinet: sealed, 18 mm MDF, Dacron acoustical stuffing
- Mount: 5/8″-27 recessed mic stand; neoprene isolation pad
- Dimensions: 165 × 165 × 165 mm (6.5″ cube)
- Weight: 3.24 kg (7.13 lb) each
