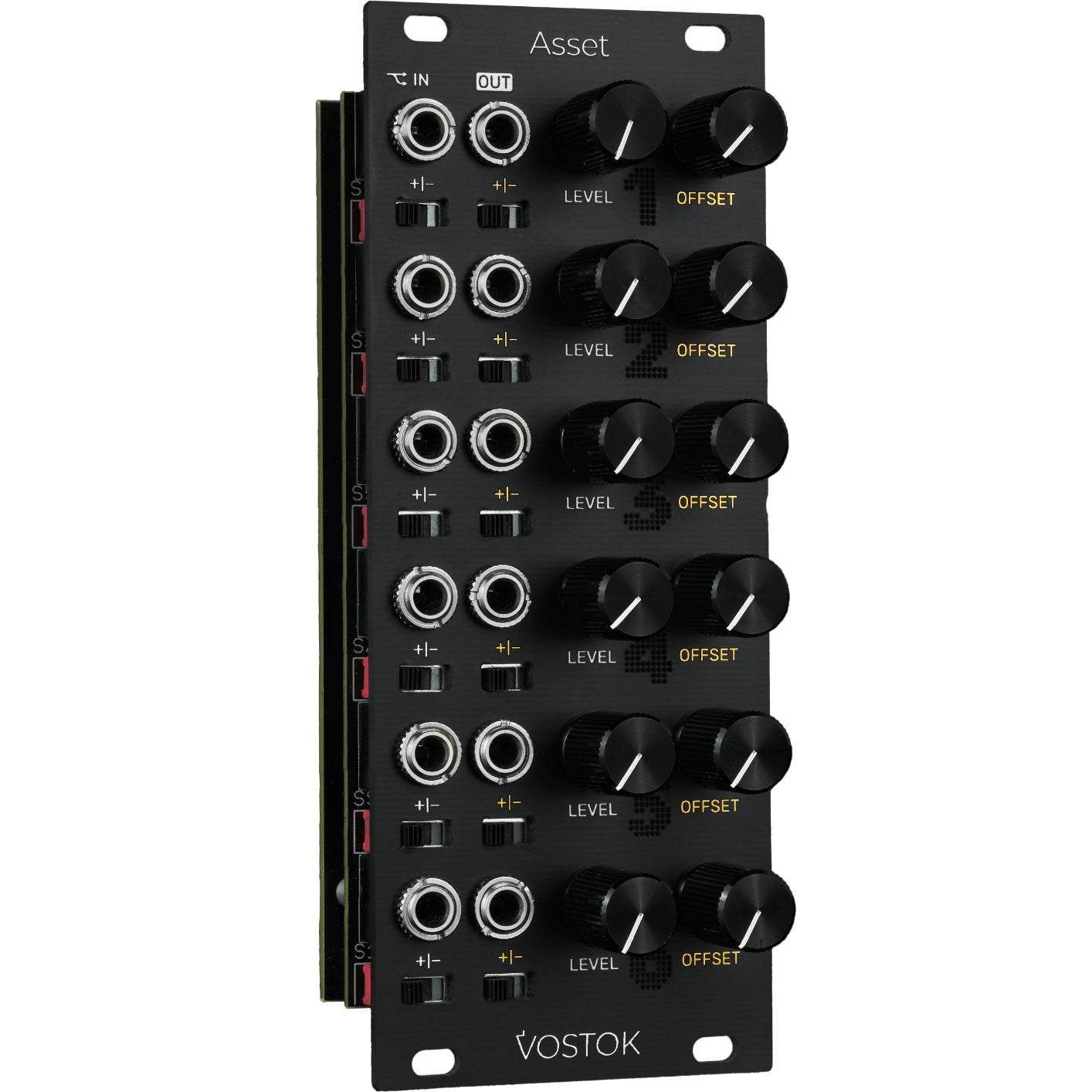

Vostok Instruments Asset is a 6-channel attenuator for Eurorack systems.
The Asset attenuator is compact enough not to take up much space in the rack, yet powerful, providing 6 channels with individual control over each parameter of the circuit.
The potentiometers operate in a classic unipolar manner, allowing you to completely mute the signal as you don't have to deal with its center position. This also provides more precision, as the entire range of the potentiometer is used either for attenuation or inversion, but not both.
Manual switches for signal inversion and offset are useful when we simply need to invert the signal while maintaining its original amplitude.
Sequential input chaining adds tons of flexibility to patching, allowing you to use the same signal multiple times in different ways, which is useful for generative or polyphonic patches.
Key features and specifications:
- 6 channels
- DC offset generator for each channel
- Selectable inversion mode for attenuator and offset circuits
- Inputs with sequential chaining
- Size: 10HP
- Power consumption: +/-12V: 50mA, +5V: 0mA
- Depth: 30mm (including power cable)
- Offset generator range: +/- 10V
- Input resistance: 100kΩ
- Output resistance: 1kΩ
